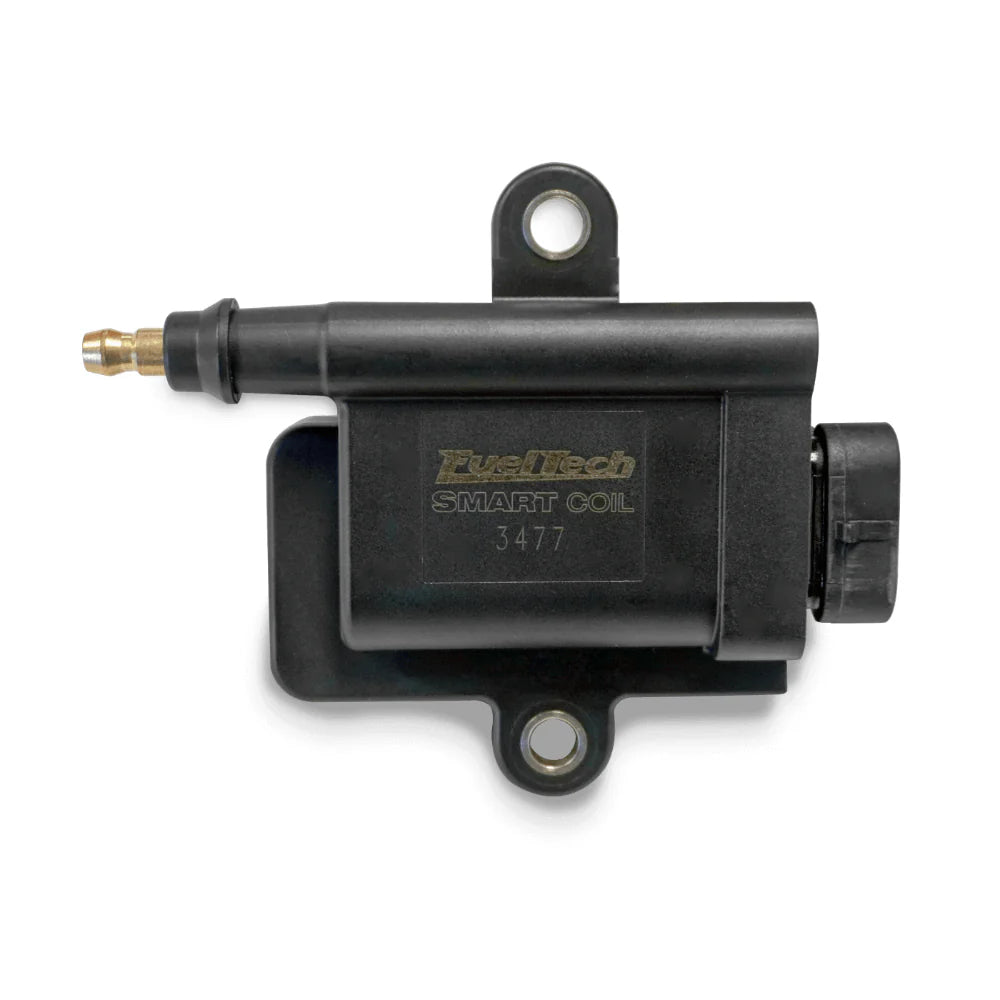

FuelTech's IGN1A Smart inductive coils are the ideal choice for high-performance applications, such as racing. With energy up to 175 mJ and a long spark discharge duration of 3.2 ms, these coils ensure excellent idle characteristics and the power needed to handle engines with high combustion chamber pressures due to turbocharging, nitrous oxide injection, or extreme naturally aspirated applications.
The maximum dwell can reach 9 ms for short periods to extract maximum power from the coil under conditions of high boost pressure or heavy load. For normal driving conditions, a dwell of 5 ms is recommended.
With a dwell time of 9 ms, these coils draw 20 Amps each, sending a full 150 mA of current to the spark plug! At 5 ms, the draw is 8 Amps each; it is important to take this into account when sizing the vehicle's wiring.

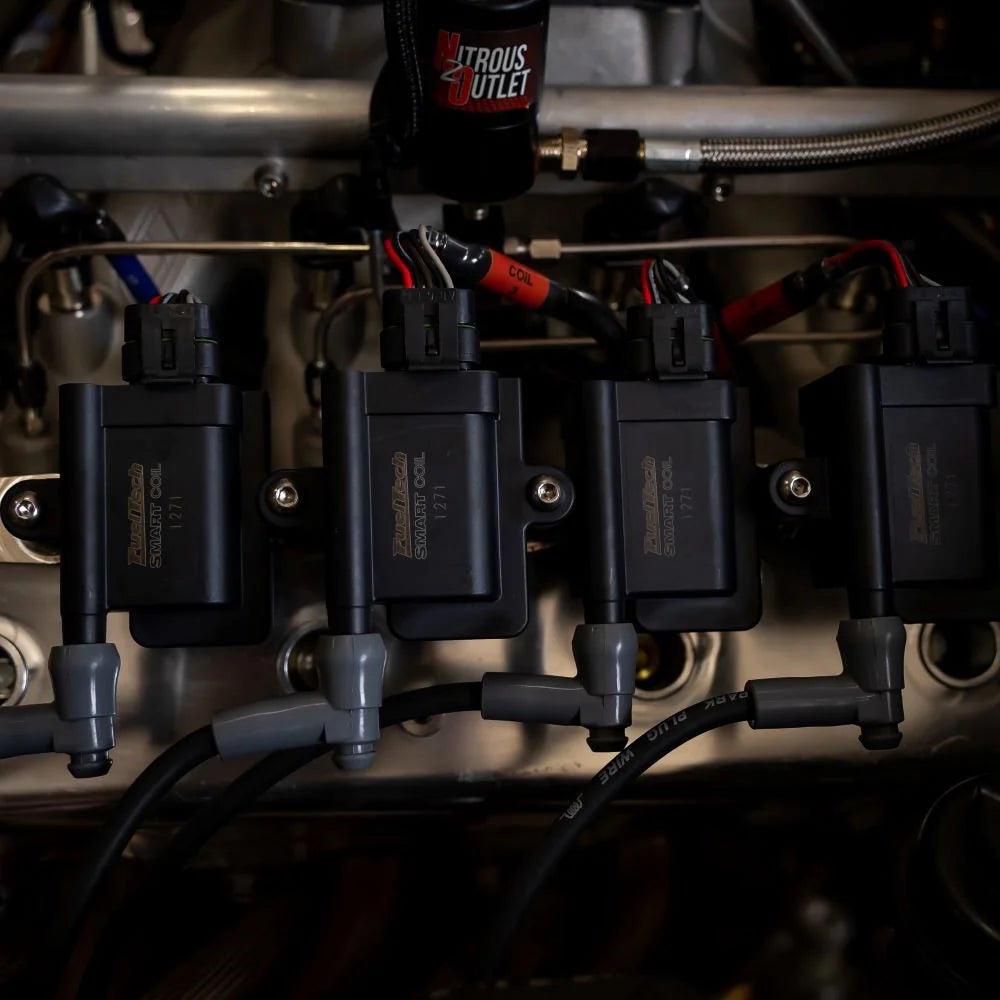

Installing these coils with our PRO550 or PRO600 harnesses is very simple thanks to our plug-and-play V8 Smart Coil Harness, which offers a complete wiring solution for both engine management and high-performance ignition systems.
WARNING
All GMC Racing items that result in power increases exceeding those permitted by the user's country's traffic laws are intended exclusively for competitive use. GMC Racing declines any responsibility for any use of the product that is contrary to national regulations.
