WIRING FOR FT450/550 SPORTSMAN DATALOGGING
WIRING FOR FT450/550 SPORTSMAN DATALOGGING
SKU:2002007356
Couldn't load pickup availability
Share
Contact us to see if the product is available

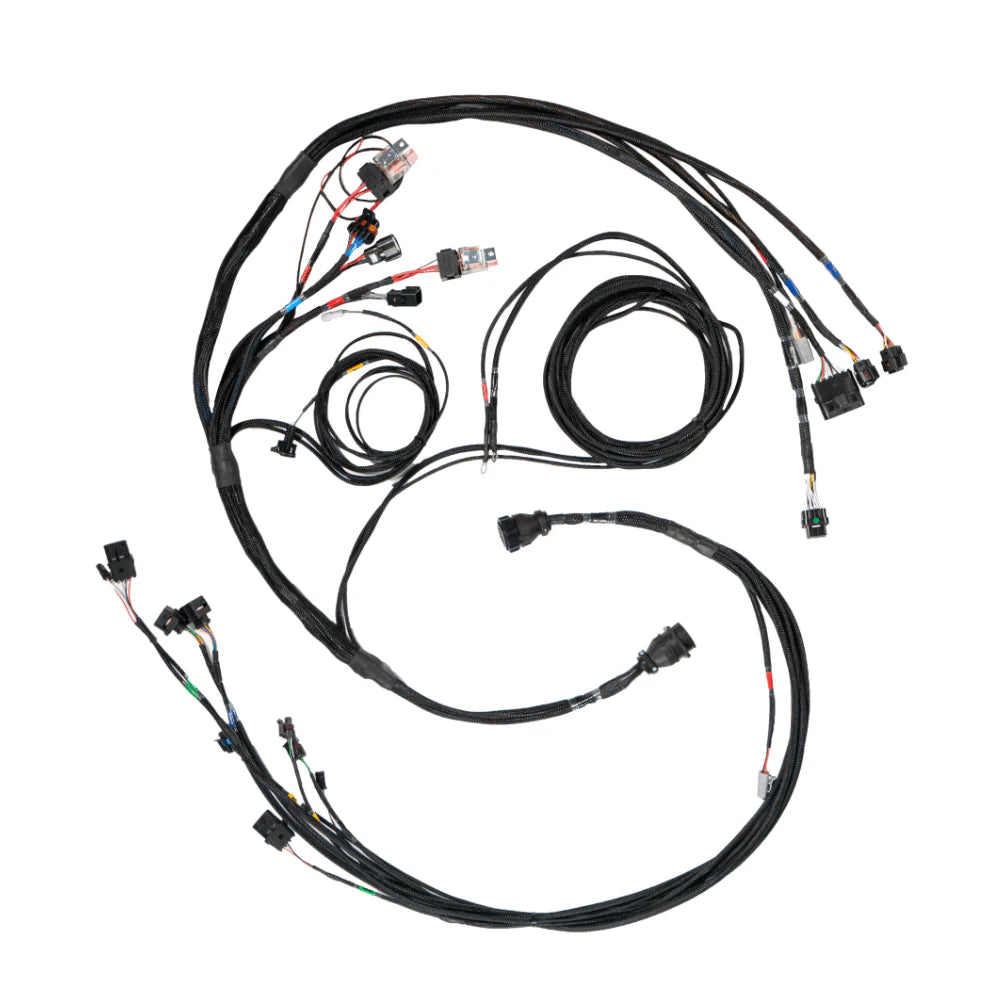

The FuelTech FT450 / FT550 Sportsman Datalogging A harness is a plug-and-play solution that allows you to easily integrate data logging into any setup equipped with an FT450 or FT550 ECU.
The Sportsman harness is pre-terminated for direct connection to essential data logging input channels (see features below) and features an additional input connector to add up to two configurable inputs for sensors or buttons.
It is also equipped with two additional connectors that allow for the use of 10 outputs to control EFI fuel injectors, ignition control via a CDI box with points input, or smart coils (8 coils on wasted spark are not recommended for carbureted V8 applications).
The outputs can also be used to control accessories such as transbrakes, shifters, nitrous, throttle stops, fans, pumps, etc. The harness is configured for VR or Hall effect sensors for cams and crankshafts and includes 2 relays with integrated fuses for the main electronics, injectors, and coils. Each connector is labeled, and the wiring insulation is heat, moisture, and oil resistant.
PRODUCT FEATURES
-
The FuelTech FT450 / FT550 Sportsman Datalogging A harness is designed for Big Block Chevy engines, but features extra-long cables that allow it to be used in numerous other applications.
- FT450 connector (FT550 connector A)
- CPC firewall connector
-
Pre-wired connections:
-
Wideband O2 sensor x2
-
Oil pressure, Fuel pressure
-
Engine temperature
- Transmission temperature
-
Wideband O2 sensor x2
- Crankshaft sensor / 2-pin connector
-
Extra inputs connector:
- 2 configurable inputs for sensors or buttons
-
Extra outputs connector:
- For DIY expansion to control EFI fuel injectors or relay activation for accessory control (transbrakes, shifters, nitrous, throttle stops, fans, pumps, etc.).
-
Ignition expansion connector:
- For DIY expansion to control ignition or relay activation for accessory control (transbrakes, shifters, nitrous, throttle stops, fans, pumps, etc.)
-
Equipped with two 40A relays and fuses to power everything:
- The relays power the ECU, Wideband Nano O2, Peak and Hold drivers, sensors, and additional connectors.
- The relays power the ECU, Wideband Nano O2, Peak and Hold drivers, sensors, and additional connectors.
WHAT'S IN THE BOX
-
Harness
-
Instruction manual
Warranty: 1 year worldwide
WARNING
All GMC Racing items that involve power increases beyond those permitted by the user's country's traffic laws are intended exclusively for competitive use.
GMC Racing declines any liability for any use of the product contrary to national regulations.
