UNIVERSAL WIRING HARNESS FOR 6 CYLINDER FT450/FT550

UNIVERSAL WIRING HARNESS FOR 6 CYLINDER FT450/FT550

SKU:2002007385

Regular price €852,78 EUR
Regular price Sale price €852,78 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

Contact us to see if the product is available

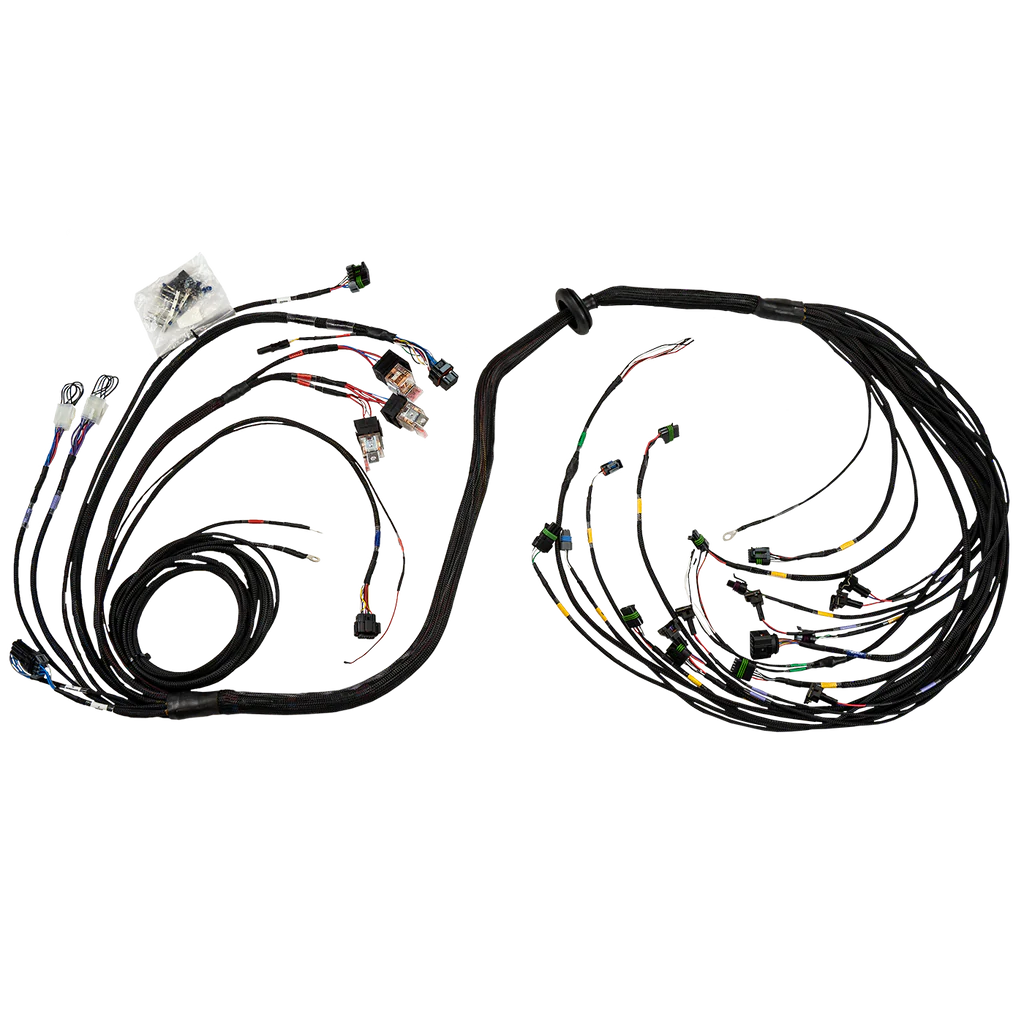

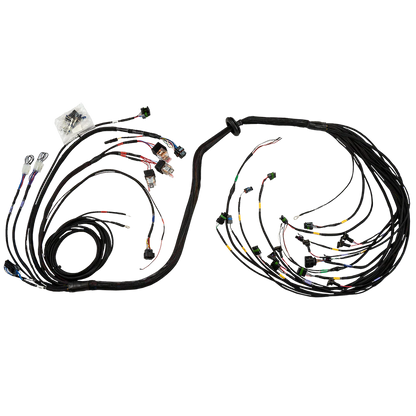

The FuelTech FT450/FT550 6-cylinder universal harness has been developed for installation on 6-cylinder engines.
This harness features all the necessary components for a plug and play installation on an engine with a standard configuration.
The insulation and connectors are resistant to moisture, heat, and oil.

OVERVIEW

The FuelTech FT450/FT550 6-cylinder universal harness is a plug and play wiring solution for use with a FuelTech FT450/FT550 ECU.

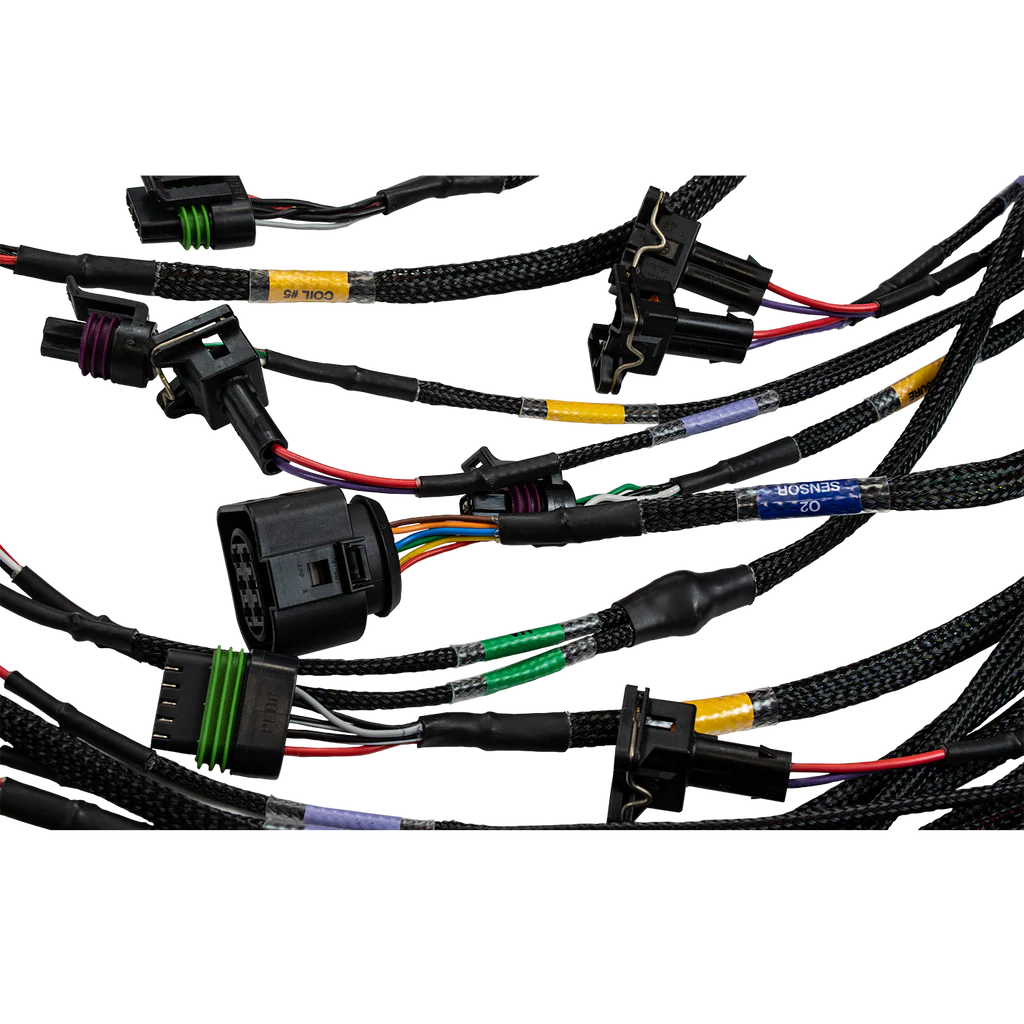

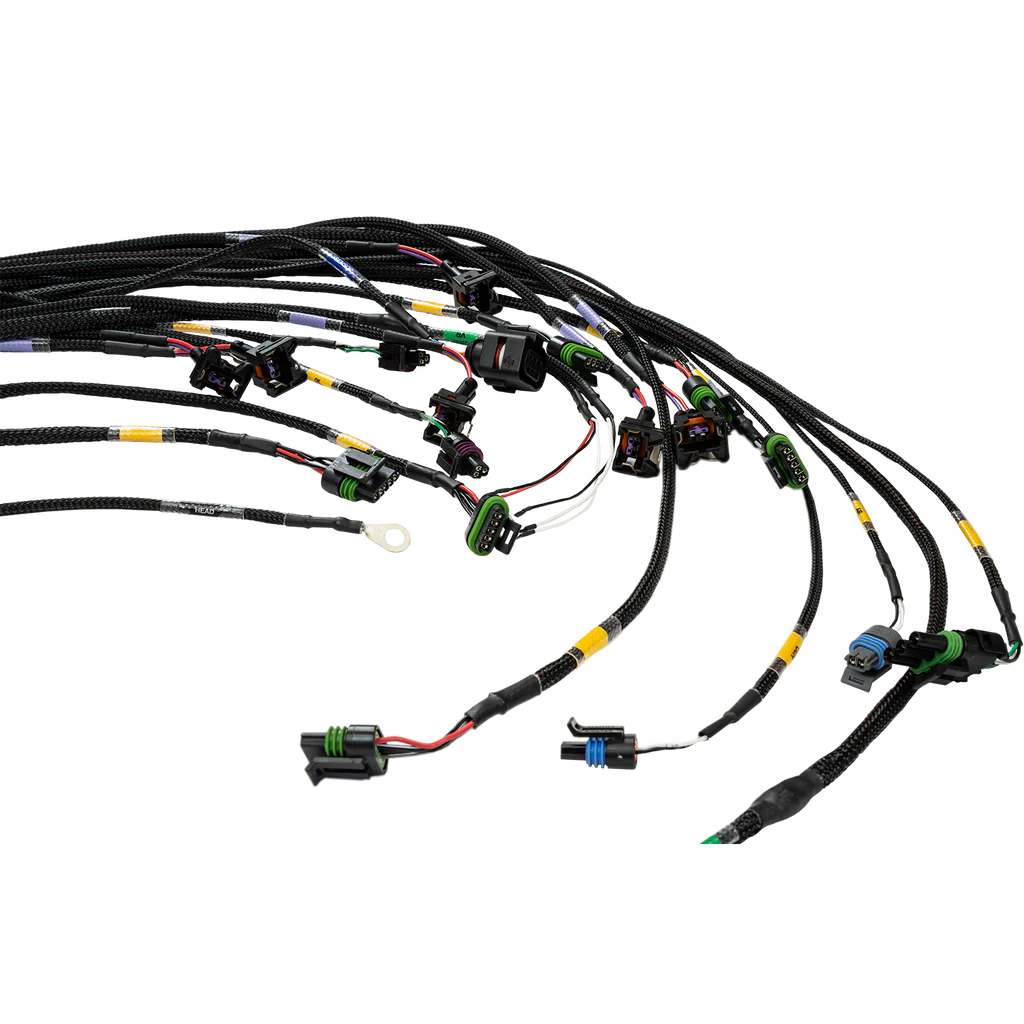

It is equipped with all necessary connectors, built-in relays, and fuses, and can be used with almost any application with 6 injectors and 6 coils.

PRODUCT SPECIFICATIONS

  • 6 injector outputs
  • Pre-wired for external FuelTech Peak and Hold driver
  • Pre-wired for FuelTech WB-Nano O2
  • Pre-wired for GM Style air intake temperature sensor
  • Pre-wired for GM Style engine temperature sensor
  • Pre-wired for fuel/oil pressure sensor or another 0-5V sensor
  • Additional output connector for general use
  • Crank and cam connectors (hall and VR options included)

TECHNICAL INFO

  • 2 Peak & Hold Jumper harnesses INCLUDED
  • 6 EV1 injectors ready.
  • 6 Smart coils ready.
  • 2 external FuelTech Peak and Hold drivers ready (jumper included)
  • 1 FuelTech WB-Nano O2 ready. GM style intake air temperature sensor ready (IAT). GM style engine temperature sensor ready (coolant temperature).
  • 2 pressure sensor inputs ready for fuel, oil, or another 0-5V sensor. Extra output connector for general use.
  • Crank and CAM connectors (hall and VR options included).
  • This harness is designed for systems with up to 6 injectors, 6 smart coils, and a FuelTech Wideband Nano O2 with Bosch LSU 4.2 sensor.
  • Configured to run in semi-sequential or multipoint injection and wasted spark.
  • Already wired for FuelTech Peak and Hold drivers when using 6 low-impedance injectors.
  • When using high-impedance injectors, a Peak and Hold driver is not needed, and in this case, only a bypass connector (jumper included) is required.

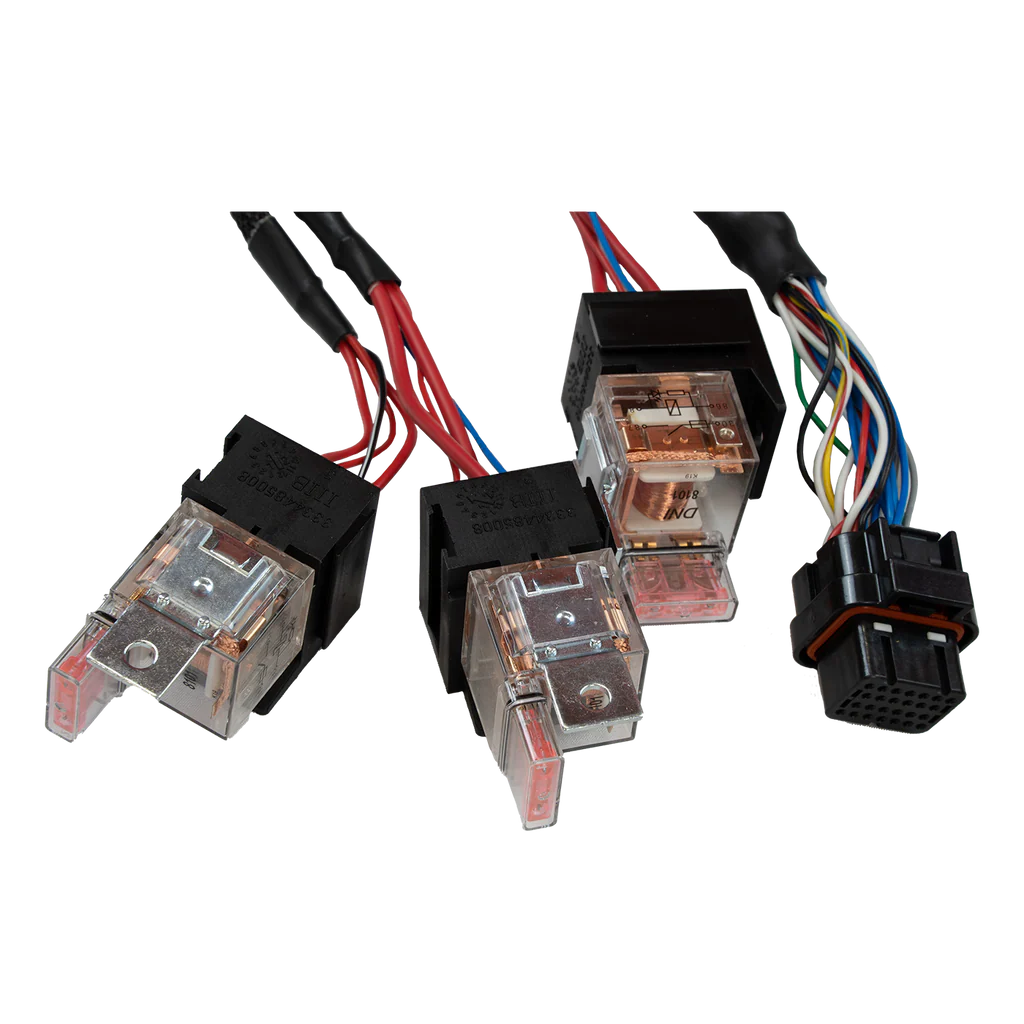

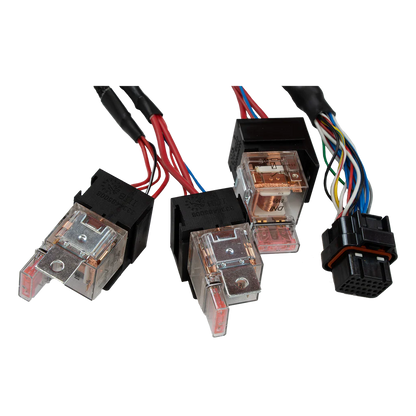

  • There are 3 separate relays to power the entire system, separating the injectors and coils from the electronics.
  • To activate the coil and injector relays, the Blue#6 output must be configured as fuel pump or RPM activation.

WHAT'S IN THE BOX

  • Wiring harness
  • User manual
  • “EXTRA” connector mating kit

Warranty: 1 year worldwide

IMPORTANT: This is only the A harness, which is all that is needed for the FT450. If you are using an FT550 and wish to use all the additional inputs and outputs, you will also need to purchase the B expansion harness (available soon).



WARNING

All GMC Racing items that result in power increases beyond those permitted by the user's country road regulations are intended exclusively for competitive use.
GMC Racing declines any liability for any use of the product that is contrary to national regulations.
