FT550 KAWASAKI 1500 WIRING HARNESS
FT550 KAWASAKI 1500 WIRING HARNESS
SKU:2002110560
Couldn't load pickup availability
Share
Contact us to see if the product is available

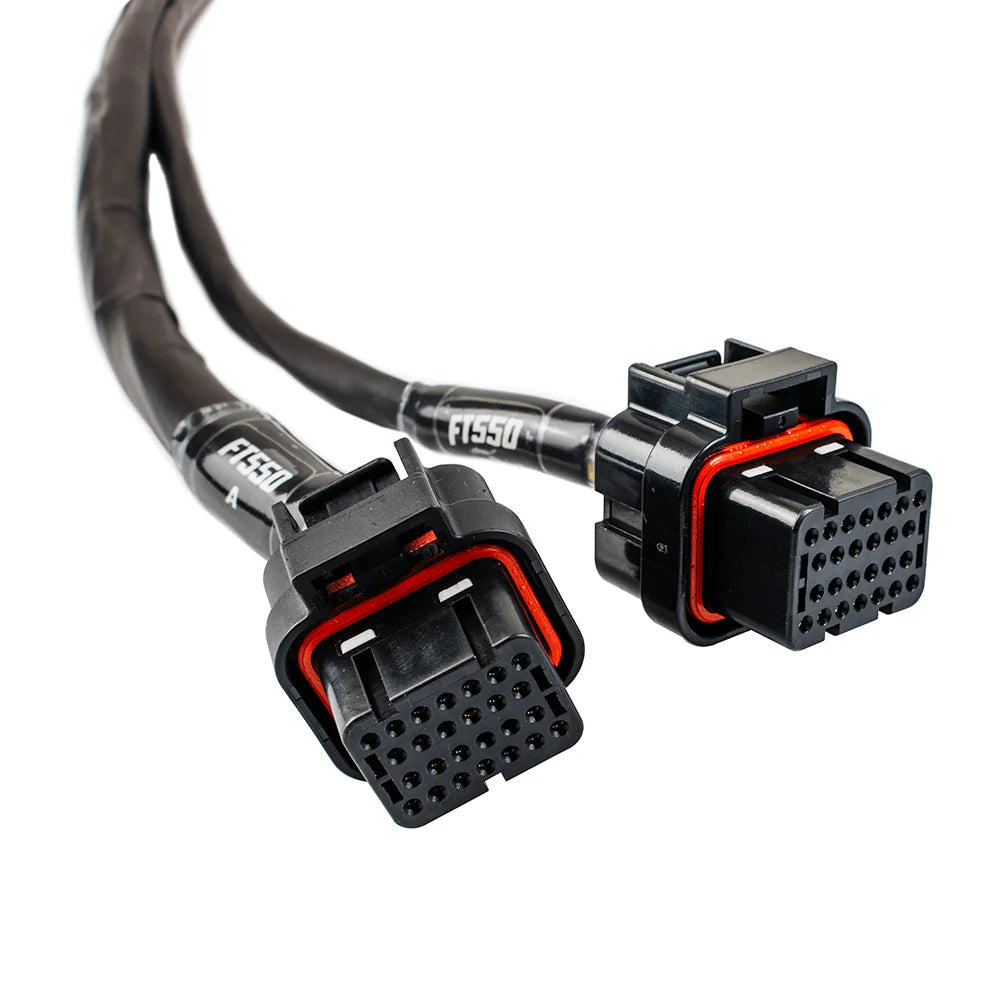

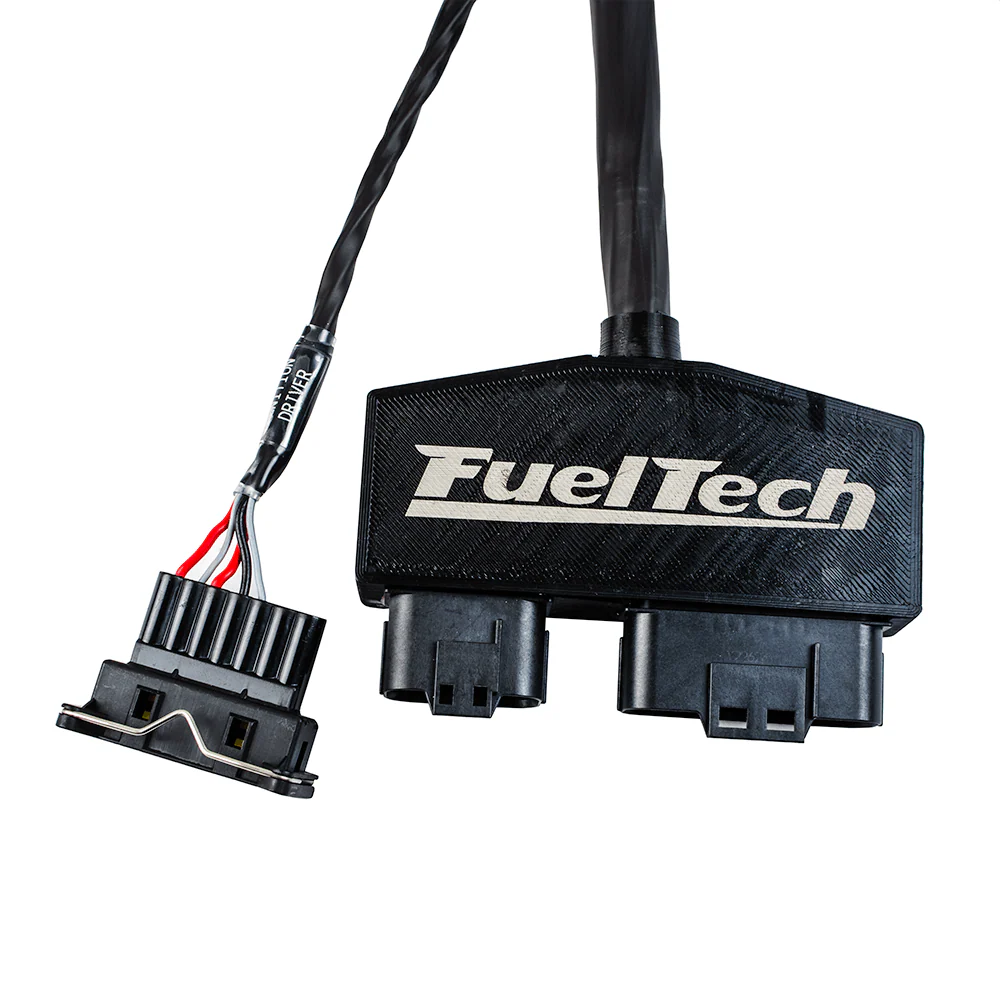

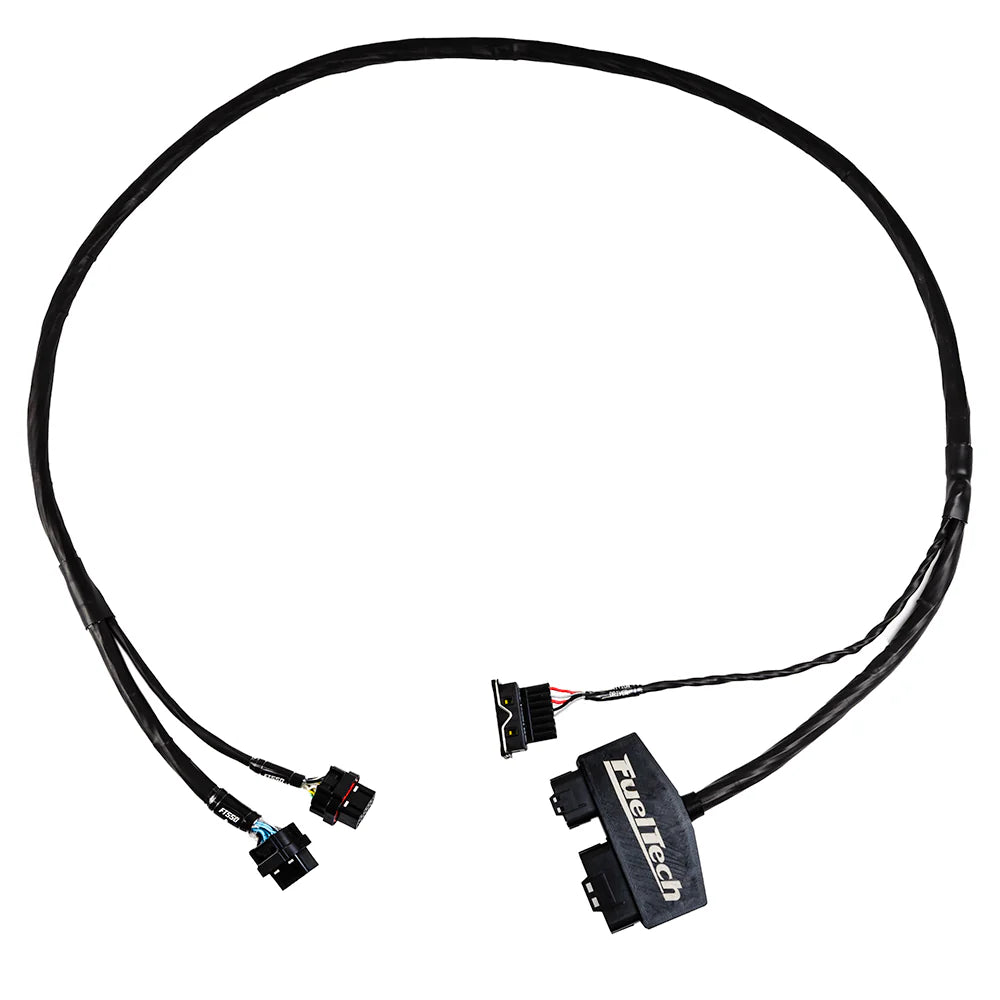

The FT550 wiring harness for Kawasaki 1500 allows you to remove the stock ECU from the Kawasaki SX-R 1500 personal watercraft and replace it with a standalone FuelTech FT550 ECU for racing.
The additional inputs of the FT550 ECU can be connected to auxiliary sensors, such as those for fuel pressure, oil pressure, tunnel pressure, temperature, and more, via the auxiliary connector. The available outputs can be used to control the boost controller, nitrous oxide injection system, additional fuel pumps, and much more! CAN bus communication allows you to connect FuelTech FTCAN compatible components without reducing the number of available inputs (14) or outputs (24). The EGT-4, for exhaust gas temperature sensors, as well as our O2 Nano and NanoPRO conditioners, for wideband O2 sensors, are among our most popular FTCAN components.
To upgrade your Kawasaki PWC with an aftermarket ECU, you need to add an ignition module to drive the dual coils. We recommend the SparkPRO-3 igniter (Nautical/Off-Road), which we specifically developed to meet the needs of watersports and the harshest off-road conditions, or the 3-channel OEM ignition module. Although the PWC has 2 coils, we recommend the 3-channel ignition as it is more readily available. If you have any questions regarding compatibility, our sales or technical staff is available to answer them.
To install the plug and play wiring adapter, it is necessary to modify the stock wiring harness by disconnecting the 12V from the idle control valve.
FuelTech FT550 PNP wiring harness product manual for Kawasaki SXR 1500 personal watercraft
WARNING
All GMC Racing items that result in power increases exceeding those permitted by the user's country road regulations are intended exclusively for competitive use.
GMC Racing declines all responsibility for any use of the product that is contrary to national regulations.
