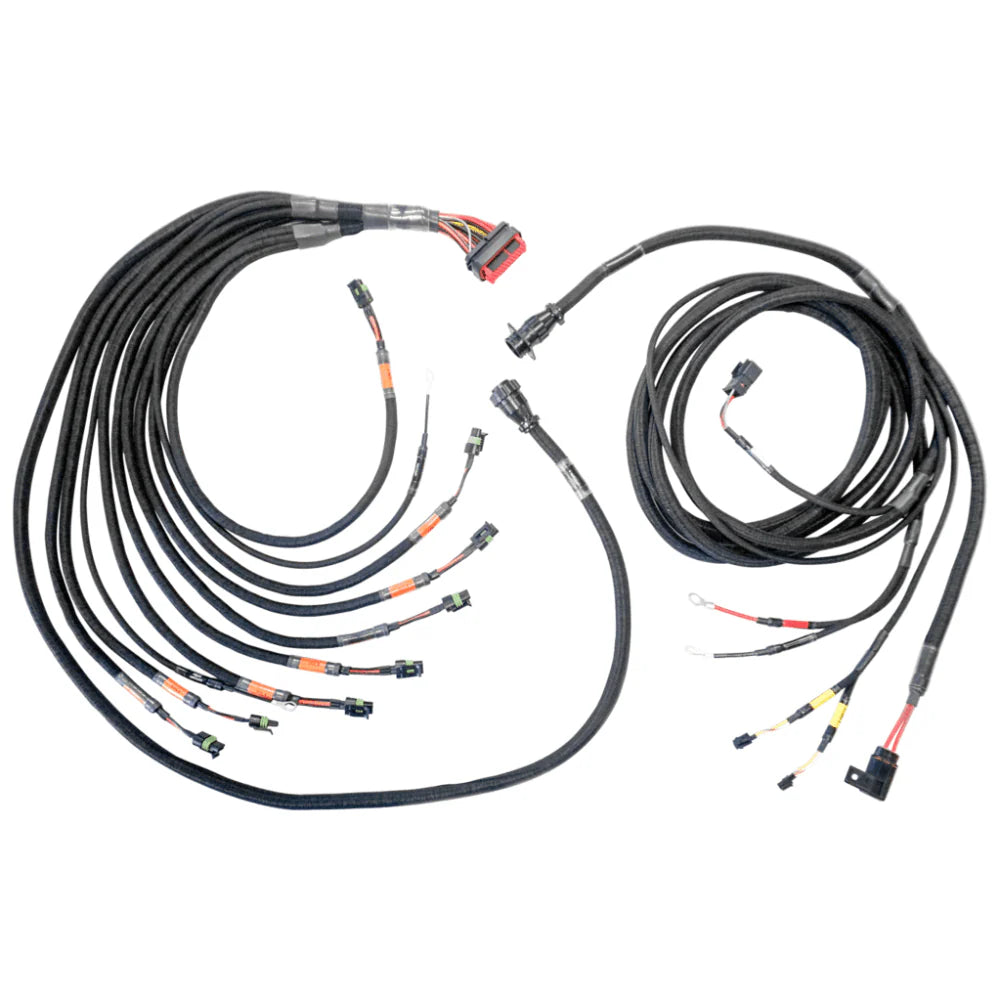

FTSPARK-8 PRO WIRING HARNESS FT550/FT600

FTSPARK-8 PRO WIRING HARNESS FT550/FT600

SKU:2002010982

Regular price $671.00 USD
Regular price Sale price $671.00 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Contact us to see if the product is available

The FuelTech PRO550/600 FTSpark-8 harness is a true plug-and-play expansion that integrates both the PRO550 and PRO600 V8 harnesses.
With this expansion harness, the user can easily upgrade to a high-power multi-coil setup! The harness features a 16-way CPC firewall connection, making the addition of the coils and the FTSpark-8 a simple installation!
The harness includes all the necessary terminals for FuelTech CDI racing coils, the FuelTech CAN connection, and output controls. The FuelTech PRO550/600 FTSpark-8 harness has a label for each connector, and the insulation is heat, moisture, and oil resistant.


TECHNICAL SPECIFICATIONS

  • For use with our FTSPARK-8 CDI module and FuelTech CDI Racing coils.
  • FTSPARK is a high-power CDI ignition module compatible with ANY ECU on the market.
  • Designed specifically to be plugged in and used with our PRO600 harness.
  • If you intend to use this harness with another ECU manufacturer, you will need to modify it and add 7 additional output wires.
  • This harness is made using a serial bus connection (1 wire) that only works with FuelTech ECUs - FT450 and higher.
  • Uses the B outputs (gray wires) on the PRO600 harness.
  • Includes: CAN connector, power and ground ring terminals (battery), 10-way connector with wires for ECU connection, and CPC connector for the firewall.



WARNING

All GMC Racing items that result in power increases exceeding those permitted by the road traffic laws of the user's country are intended exclusively for competitive use.
GMC Racing declines any liability for any use of the product contrary to national regulations.
