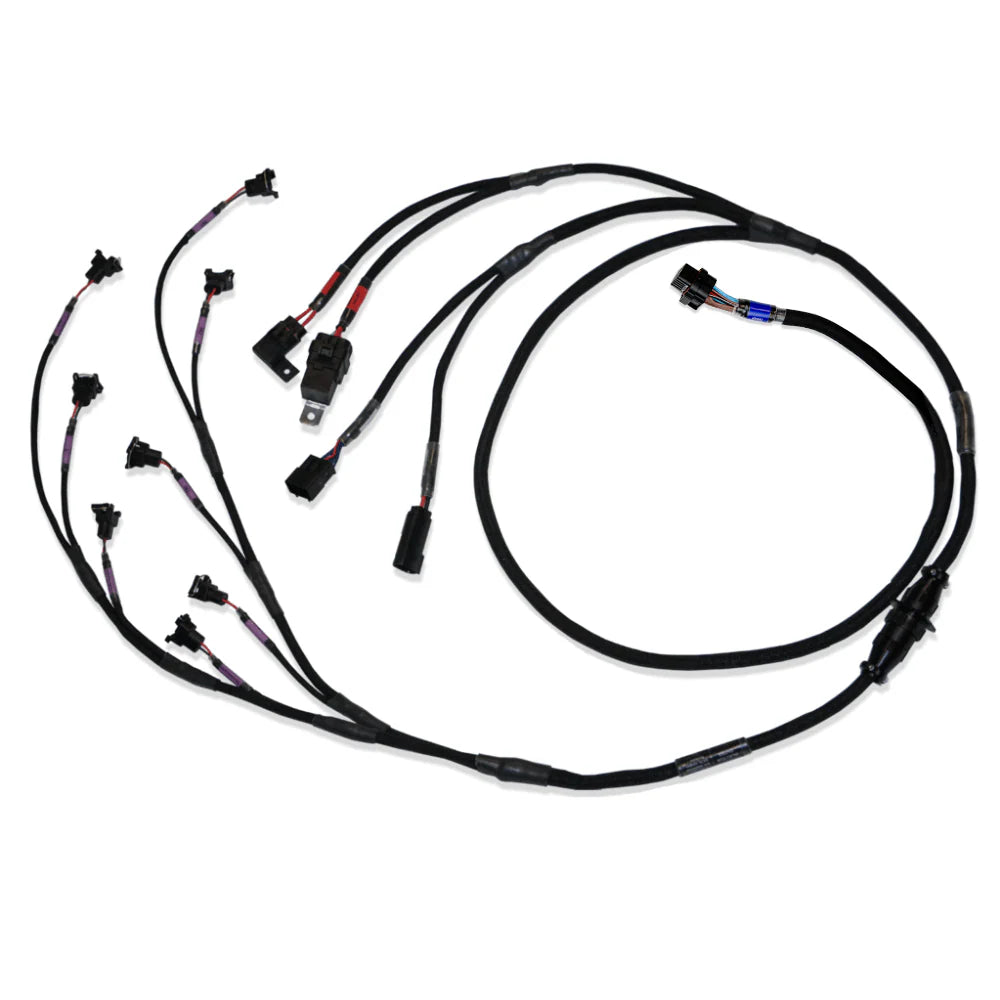

FT600 PRO V8 SECONDARY INJECTOR WIRING

FT600 PRO V8 SECONDARY INJECTOR WIRING

SKU:2002109220

Regular price $615.00 USD
Regular price Sale price $615.00 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Contact us to see if the product is available

The FuelTech PRO600 secondary injector harness is designed as a true plug-and-play expansion to complete the PRO600 V8 harness. With this expansion harness, the user can expand up to a total of 16 fully sequential injectors with simple pre-wired connections.
The harness features a 24-position CPC firewall connection that makes adding a second set of injectors a breeze!
The harness includes a single 30-amp relay and fused protection, two connections for peak and hold drivers, and is configured to fit EV1-style injectors.
The PRO600 secondary injector harness has a label for each connector and the insulation is resistant to heat, moisture, and oil.

TECHNICAL SPECIFICATIONS

  • For use with 16-injector applications.
  • EV1 injector connector.
  • Plug 'n' Play design compatible with the PRO600 harness.
  • Uses the PRO600 output connector A (blue wires).
  • Includes: 8 injector connectors, fuse, relay, auxiliary power connector (power from the battery), 12-way connector for connection to the Peak and Hold Pro ECU connector, and CPC firewall connector.

WARNING

All GMC Racing items that result in power increases exceeding those permitted by the road traffic regulations of the user's country are intended exclusively for competition use.
GMC Racing declines any liability for any use of the product contrary to national regulations.
