ROTAX WIRING FOR FT450 2009 AND EARLIER MODELS
ROTAX WIRING FOR FT450 2009 AND EARLIER MODELS
SKU:2002100595
Couldn't load pickup availability
Share
Contact us to see if the product is available

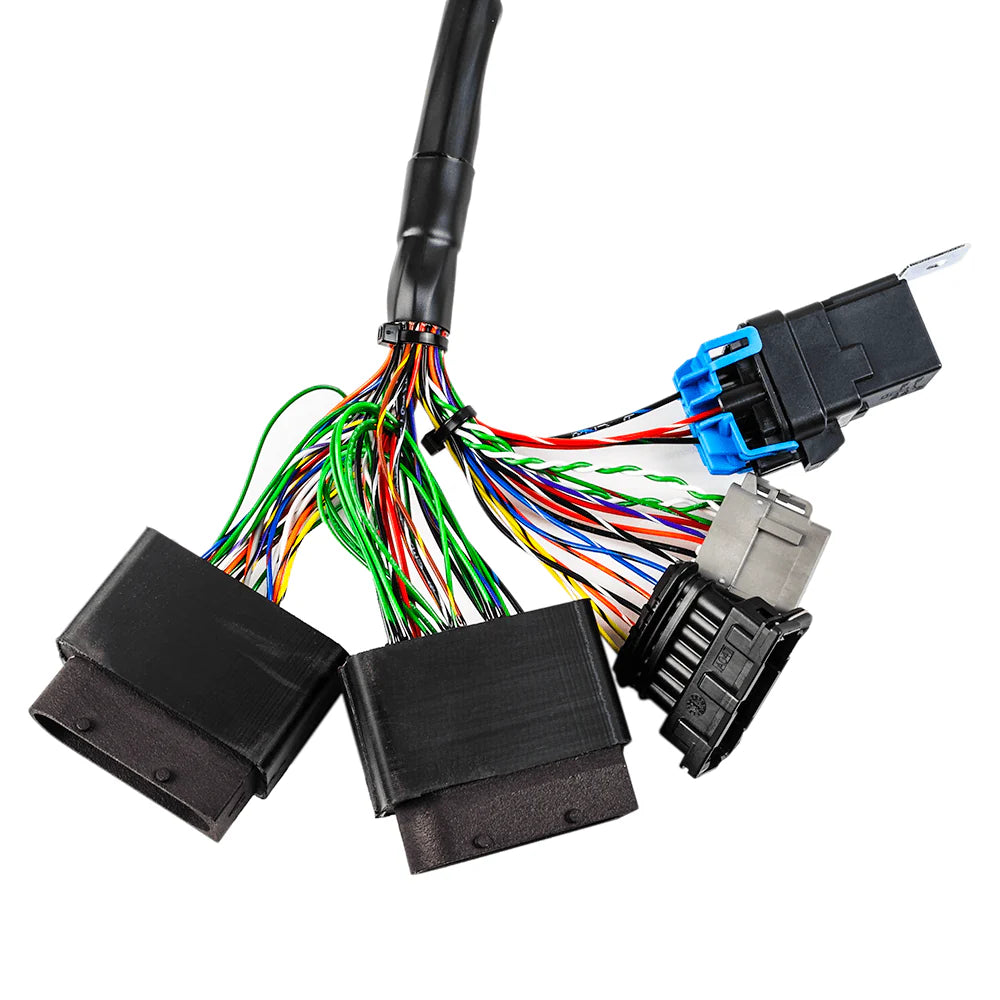

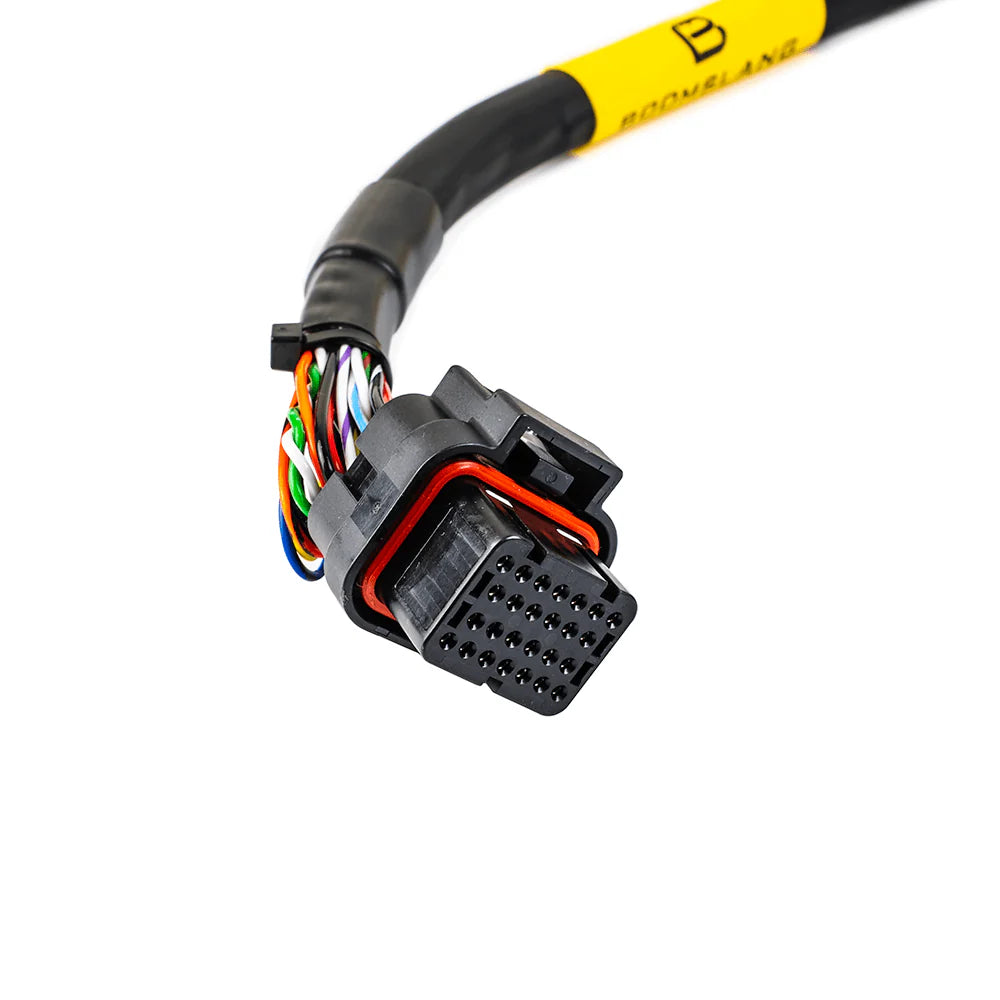

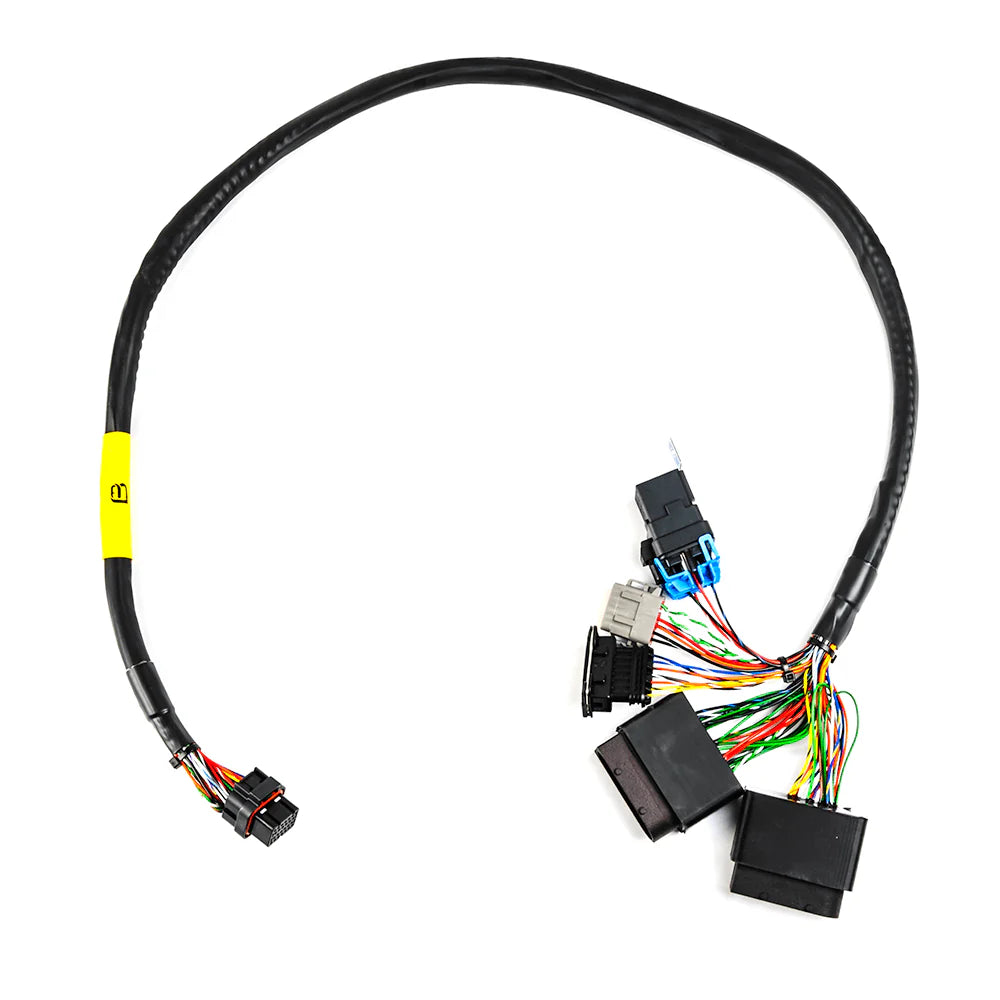

This wiring harness allows you to remove the original Siemens ECU from 2009 and earlier Sea-Doos and replace it with a standalone FuelTech FT450 or FT550 ECU. No modifications to your competition jet ski are necessary. Upgrading to our aftermarket ECU is completely reversible, should you wish to return to the original configuration.
If you already own an FT550 for another vehicle, you can easily share the ECU with your PWC by connecting the Plug and Play harness to the “A” connector of the ECU and inserting the connector provided with the kit into the “B” connector to protect it from water ingress. Any additional inputs/outputs for extra controls or sensors can be wired to the “B” connector, provided that the rubber water protection seal is not removed. Our technical support team can answer any questions you may have.
A 3-channel ignition module is required, which can be the 3-channel OEM module we offer as an OEM equivalent or a high-performance FuelTech SparkPRO-3 Marine version module.
The original dashboard will no longer be functional; the trim control remains operational as stock, but there will be no trim indicator on the display.
There are 2 inputs available from the FT450 ECU that can be wired from the EXTRA connector to additional sensors such as fuel pressure, oil pressure, tunnel pressure, temperature, and more.
There are also 2 outputs available that can be used to control a boost controller, nitrous oxide, an additional fuel pump, and more.
The FuelTech CAN bus is also available if you wish to wire in any FuelTech products such as the EGT-4 for exhaust gas temperature sensors, wideband O2 sensors using a FuelTech Nano or NanoPRO conditioner, and more.
WARNING
All GMC Racing items that result in power increases exceeding those permitted by the road traffic laws of the user's country are intended exclusively for competitive use.
GMC Racing declines all responsibility for any use of the product contrary to national regulations.
