SMART COIL PRO V8 WIRING HARNESS FOR FT550/FT600

SMART COIL PRO V8 WIRING HARNESS FOR FT550/FT600

SKU:2002108803

Regular price $615.00 USD
Regular price Sale price $615.00 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Contact us to see if the product is available

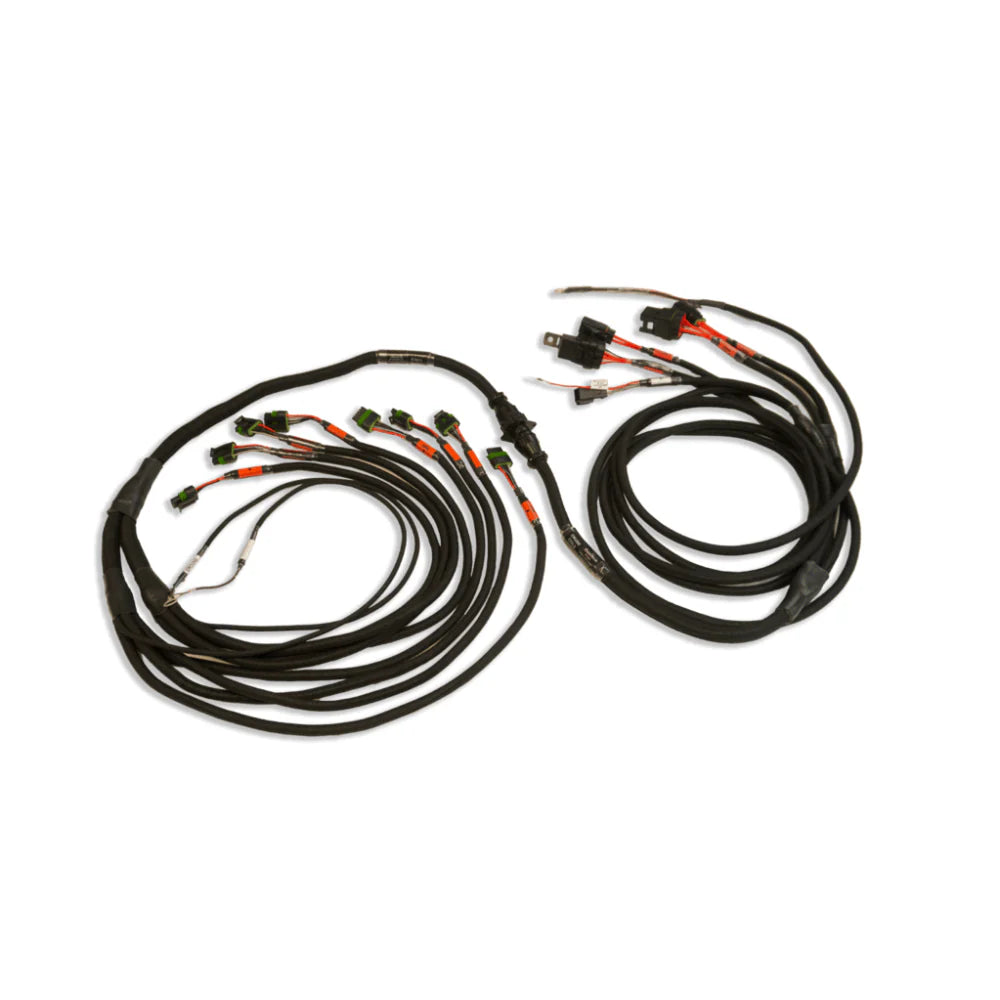

The FuelTech FT550/FT600 PRO V8 Smart Coil harness is a true plug-and-play expansion that integrates both the PRO550 and PRO600 V8 harnesses.
With this expansion harness, the user can easily upgrade to smart coils! The harness features a 16-way CPC firewall connection, making the addition of smart coils a simple installation!
The harness includes all terminals suitable for smart coils, the FuelTech CAN connection, and output controls. The FuelTech PRO550/600 Smart Coil harness has a label for every connector, and the insulation is heat, moisture, and oil-resistant.

TECHNICAL SPECIFICATIONS

  • For use with our smart ignition coils (with integrated igniter)
  • Plug n' Play design for use with the PRO600 harness
  • Uses B outputs (gray wires) on the PRO600 harness
  • Includes: fuse, relay, power and ground ring terminals (battery), and 10-way connector with wires for ECU connection and CPC connector for the firewall.

ATTENTION

All GMC Racing items that result in power increases beyond those permitted by the road traffic laws of the user's country are intended exclusively for competitive use.
GMC Racing declines any liability for any use of the product contrary to national regulations.
