UNIVERSAL WIRING HARNESS FOR 4-CYLINDER FT450/550
UNIVERSAL WIRING HARNESS FOR 4-CYLINDER FT450/550
SKU:2002006505
Couldn't load pickup availability
Share
Contact us to see if the product is available

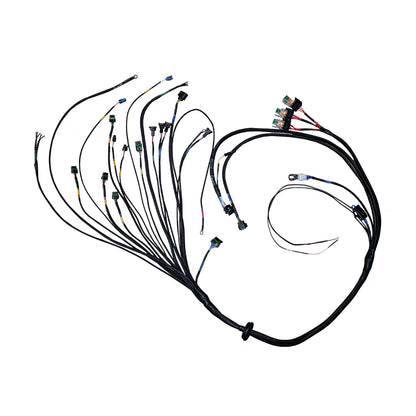

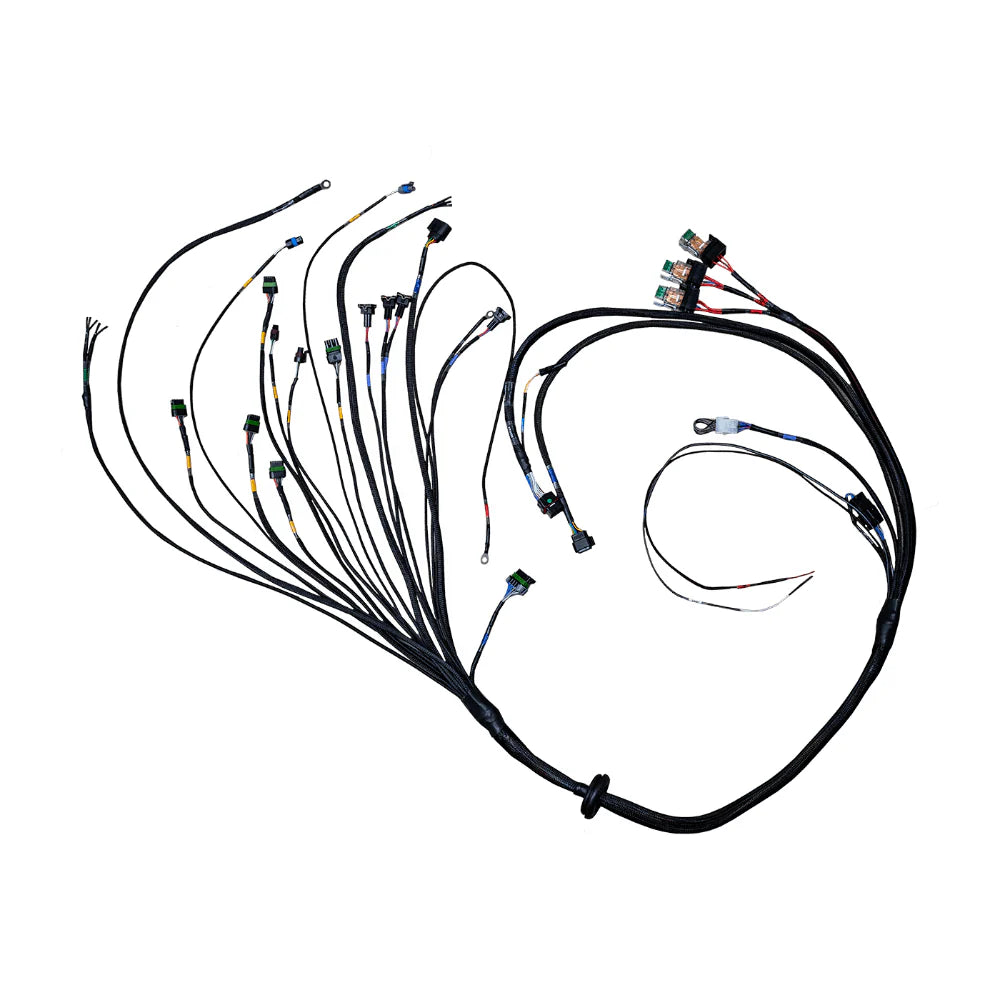

The FuelTech 4-cylinder Universal Harness A is an excellent addition to any 4-cylinder setup and can be used with FT450 and FT550 ECUs in plug-and-play mode.
It is suitable for 4 injectors and 4 individual smart coils, wired for semi-sequential fuel injection and wasted spark ignition (full sequential requires the FT550 ECU and the 4-cylinder Universal B expansion harness).
It can be used with high or low impedance injectors; low impedance injectors require the use of a Peak & Hold driver, while high impedance injectors require a Peak & Hold jumper harness (both sold separately).
The harness is prepared for VR or Hall effect cam and crank sensors and includes 3 relays with integrated fuses for the main electronics, injectors, and coils.
The 4-cylinder Universal Harness A features a label for each connector, and the insulation is resistant to heat, moisture, and oil.
PRODUCT FEATURES

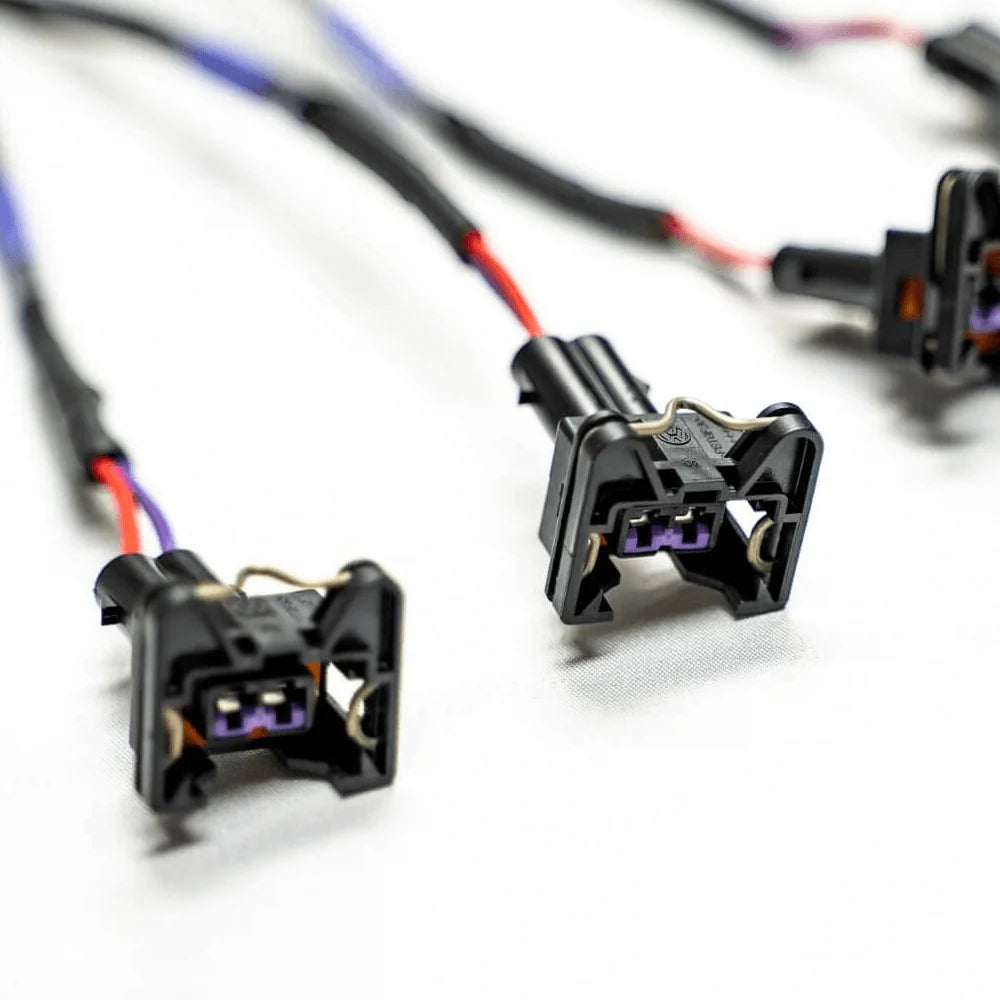

- 4 EV1 injectors
- 4 smart coils
- FuelTech Peak and Hold external driver ready
- FuelTech WB-Nano O2 ready
- GM style intake air temperature sensor ready
- GM style engine temperature sensor ready
- 2 pressure sensors ready for fuel, oil / other 0-5V sensor
- Extra output connector for general use
- Crank and CAM connectors (hall and VR options included)
This harness has been designed for systems with a maximum of 4 injectors, 4 smart coils, and a FuelTech Wideband Nano O2 with Bosch LSU 4.2 sensor.
It is configured to work with semi-sequential or multipoint injection and wasted spark ignition.
It is already wired for use with a FuelTech Peak and Hold driver when using 4 low impedance injectors.
When using high impedance injectors, a Peak and Hold driver is not required, and in this case, only a bypass connector (jumper included) is required.
There are 3 separate relays to power the entire system, separating the injectors and coils from the electronics.
To activate the coil and injector relays, the Blue#6 output must be configured as fuel pump or RPM activation.
This is only Harness A, which is all that is needed for the FT450.
To use this harness with the FT550, the FT550 4-cylinder Universal B expansion harness is required in order to be able to use all the additional inputs and outputs.
WARNING
All GMC Racing items that lead to power increases exceeding those permitted by the road traffic laws of the user's country are intended exclusively for competitive use.
GMC Racing declines all responsibility for any use of the product that is contrary to national regulations.
