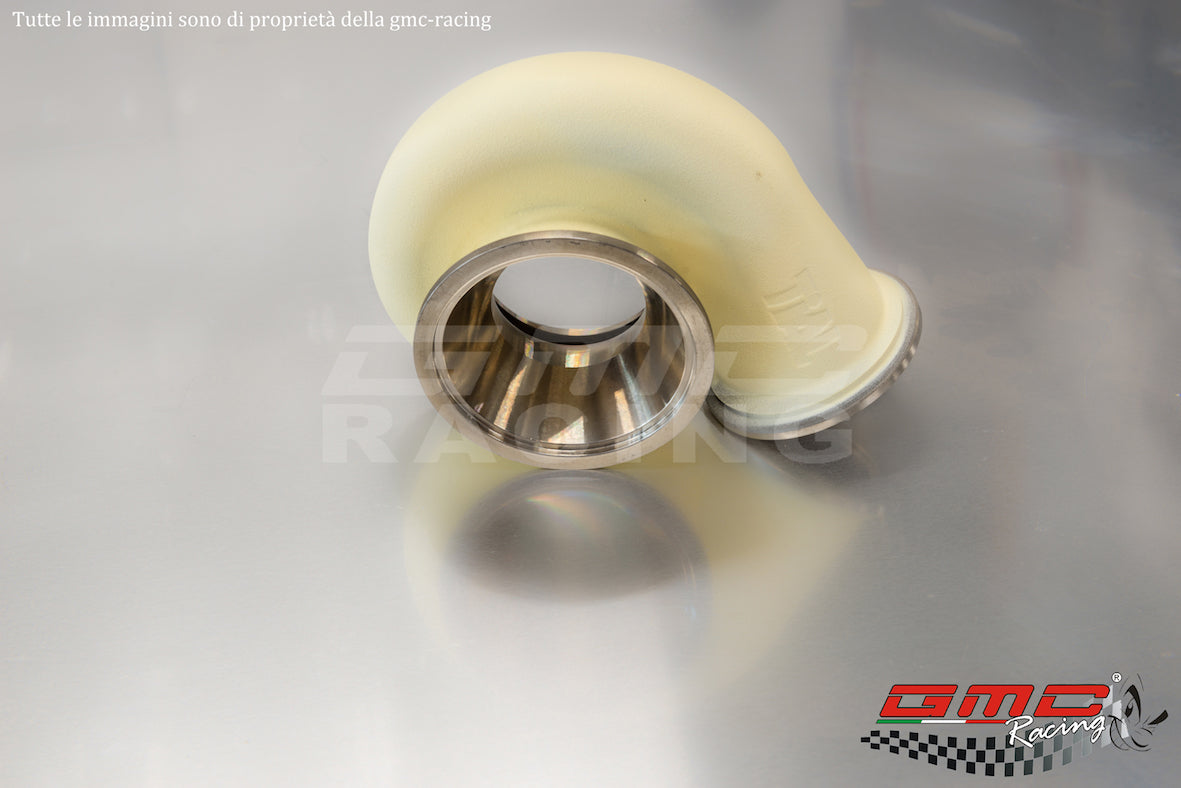

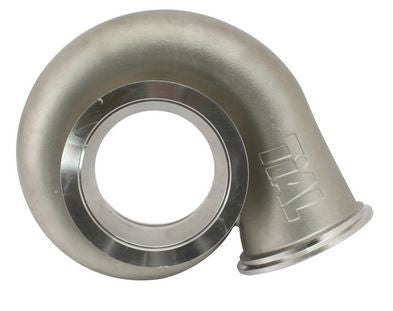

Ultra-lightweight stainless steel exhaust snail for GT/GTX 30 series turbochargers. Compatible with 60mm turbine wheel diameter and 84 trim ratio. Note: This outlet is not compatible with CHRA 700177-23 GT307 1R, the heat shield is different, you need to use CHRA 700177-22.

TIAL SPORT EXHAUST SNAIL FOR GT/GTX 30 SERIES WITHOUT FLANGES AND CLAMPS

DESCRIPTION

• 33% reduction in turbocharger weight compared to a cast iron snail

• Perfect and smooth stainless steel casting both internally and externally

• Inlet and outlet valve with V-band system free from any bolts and gaskets, no leaks or broken bolts

• Three A/R options

• The physical dimensions are overall smaller than a standard nut, thus allowing for greater adaptation even in narrow engine compartments.

• Better heat retention than cast iron

• Inconel bolts included for vibration and extension resistance in extreme applications

• Retaining rings included for applications involving strong vibration

• Possibility to rotate the turbo 360°

• Note: This outlet is not compatible with CHRA 700177-23 GT307 1R, the heat shield is different, you need to use CHRA 700177-22.

Attention

All GMC Racing items that provide horsepower increases beyond those permitted by the highway code in the user's country are intended for competitive use only.
GMC Racing declines all responsibility for any use of the product contrary to national regulations.

Round trip available .63  .82 1.06

TIAL V-BAND FLANGES AND CLAMPS GTVFL 3.0 Inlet Valve Flange VC300 outlet valve clamp VBF300M outlet valve flange VC355 outlet valve clamp

WHAT'S IN THE BOX? A drain snail Three fixing semicircles Six inconel bolts
