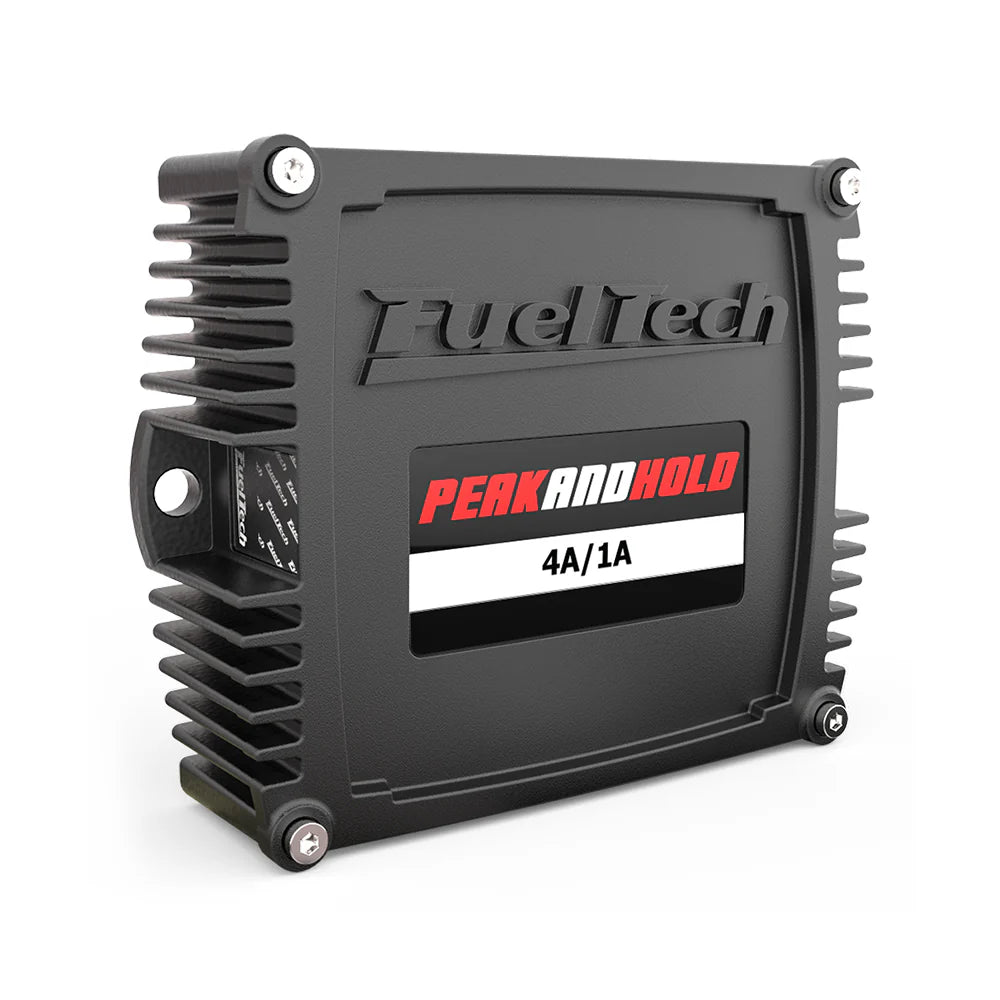

PEAK & HOLD INJECTOR DRIVER 4A/1A

PEAK & HOLD INJECTOR DRIVER 4A/1A

SKU:3010003324

Regular price €291,58 EUR
Regular price Sale price €291,58 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

Contact us to see if the product is available

The FuelTech 4A/1A Peak & Hold injector driver is a 4-channel unit designed for the control of low-impedance injectors with values between 1.5 and 3 Ohms. This module ensures rapid injector opening (Peak phase) and safe holding (Hold phase), protecting components from overheating. Includes mounting kit.

PRODUCT FEATURES

  • Current control: Specific driver for current management in low-impedance injectors.
  • Channels: 4 independent channels.
  • Series versions:
    • 8A/2A
    • 4A/1A (Current version)
    • 2A/0.5A


TECHNICAL DESCRIPTION (4A/1A VERSION)

This version is optimized to manage up to 4 injectors with impedance between 1.5 and 3 Ohms, including:

  • 8 Bosch 160lb/h (1600cc) injectors: (2 per channel).
  • 4 Siemens 83lb/h injectors: (1 per channel).
  • 4 MSD injectors: (with 2 Ohm impedance per injector).
  • Billet Atomizer injectors: Models produced before November 2012 (serial numbers prior to C300****).

PEAK & HOLD SELECTION GUIDE

To determine which module is needed for your setup, perform this test with a multimeter:

  1. Set the multimeter to Ohms (200).
  2. Touch the probes together to measure the tool's internal resistance (e.g., 0.3 Ohm).
  3. Measure the resistance at the injector terminals (e.g., 4.8 Ohm).
  4. Subtract the value from step 2 from the value in step 3 (e.g., 4.8 - 0.3 = 4.5 Ohm).

Test result:

  • Above 7 Ohms: High impedance - No module required.
  • From 3 to 7 Ohms: Peak and Hold 2A required (e.g., Bosch 160lb/h).
  • From 1.5 to 3 Ohms: Peak and Hold 4A required.
  • Below 1.5 Ohms: Peak and Hold 8A required (e.g., FT Injector).


PHYSICAL SPECIFICATIONS AND CONTENTS

  • Dimensions: 115 x 90 x 33 mm.
  • Contents:
    • 1 Peak and Hold 4A/1A module.
    • 1 Installation guide.
    • 1 Mounting kit (4 rubber mounts, washers, and nuts).

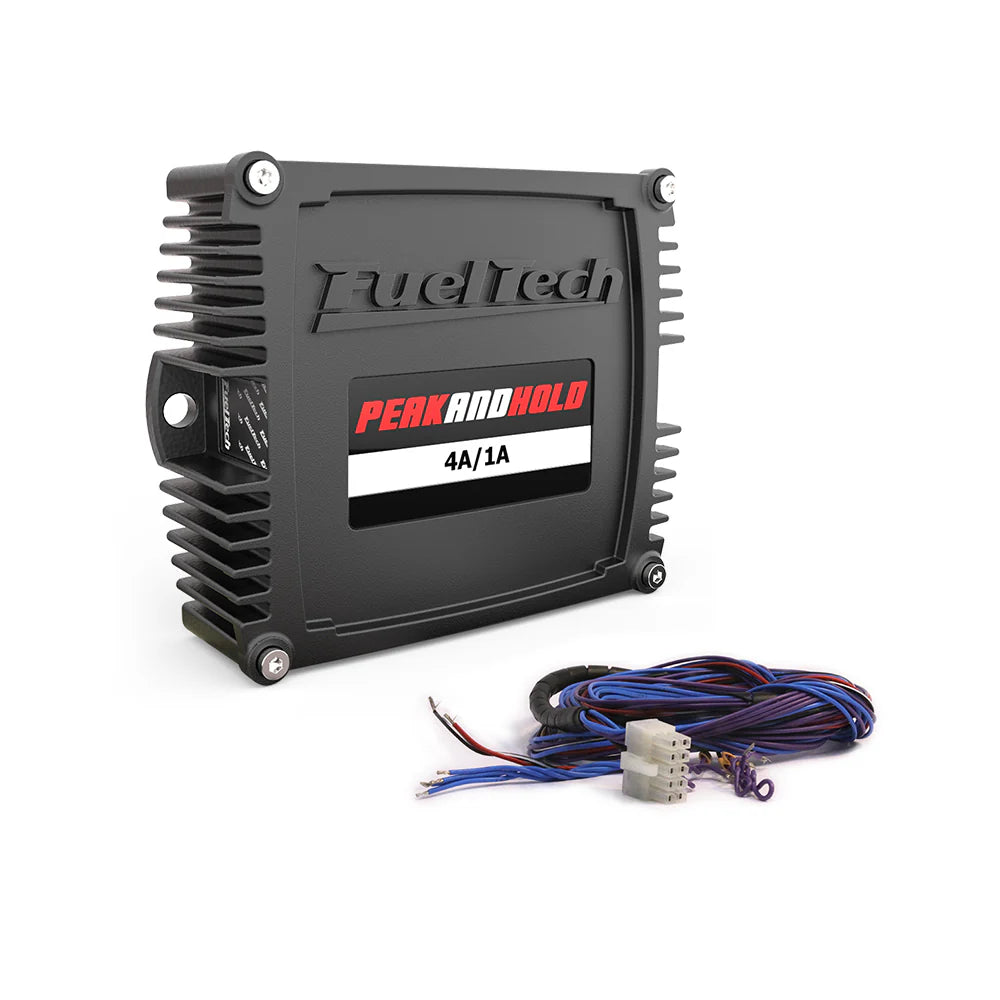

    • Universal 1.8m (6ft) wiring harness (Optional).
    • 1 FuelTech "Black Carbon Fiber" sticker.

WARNING

All GMC Racing items that result in power increases exceeding those provided for by the road traffic laws of the user's country are intended exclusively for competitive use.
GMC Racing declines all responsibility for any use of the product that is contrary to national regulations.
