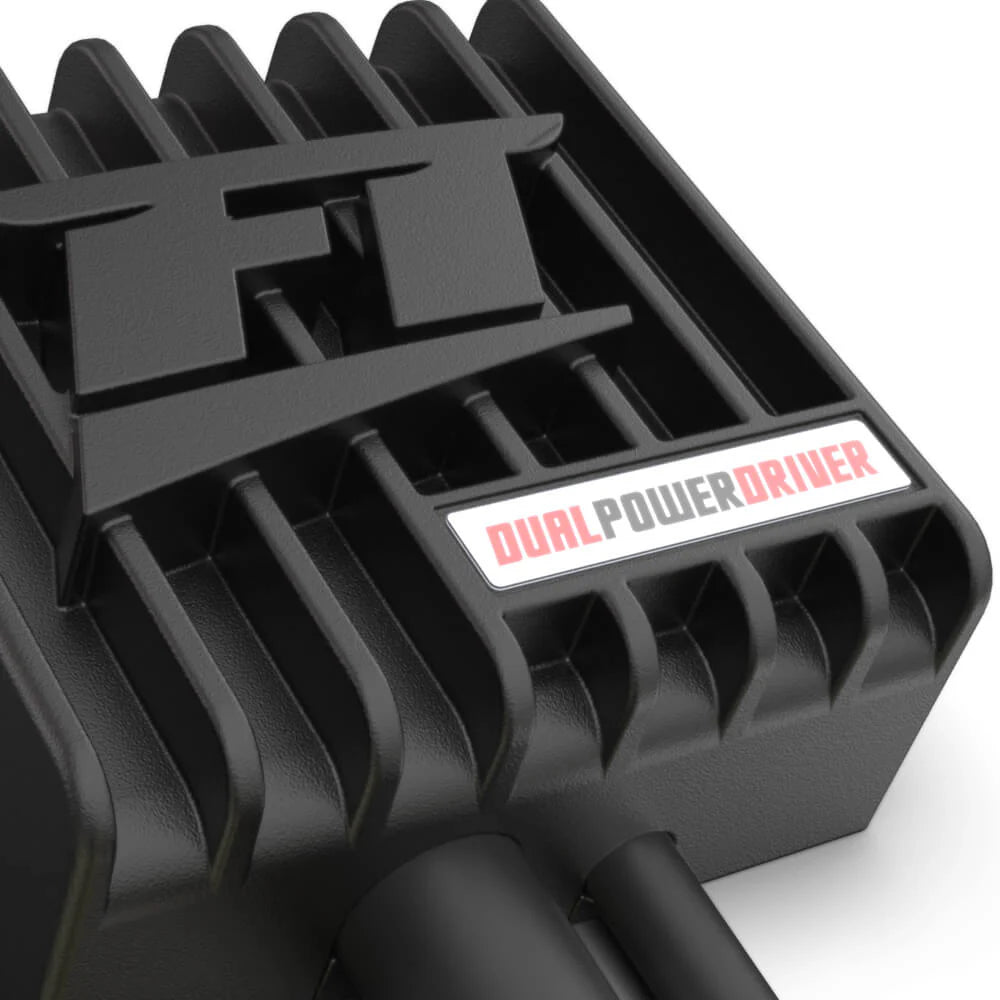

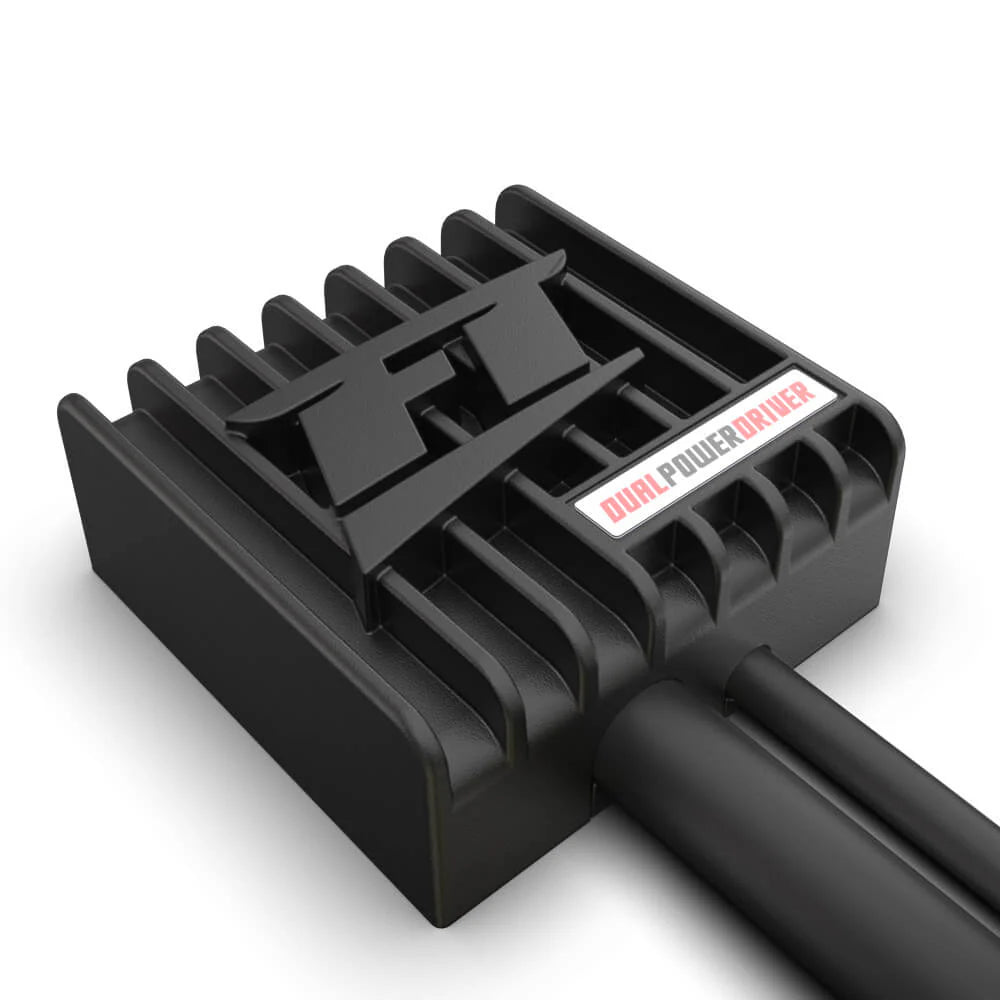

The FT Dual Power Driver features two half-bridge outputs that allow the activation of loads up to 25A. Thanks to the two half-bridge outputs, the DPD can drive a single motor in two directions, or two motors in a single direction. It is capable of handling high-speed PWM signals (using the ECU's PWM output). Its robust hardware ensures extremely low activation delay, allowing the use of controls that require high-frequency PWM signals.
TECHNICAL DESCRIPTION
Power supply: from 9V to 30V
Maximum output current (total): 25A
Peak current: 100A for 10ms
Operating voltage: from 9V to 30V
Maximum operating frequency: 25KHz @ 30V
LOW input signal level: <1.3V
HIGH input signal level: >1.6V
Switching delay:
High to low: 5.6 μs
Low to high: 6 μs
DIMENSIONS
DPD: 55 x 55 x 28 mm (W x H x D)
WEIGHT
FT Dual Power Driver: 220 g
DPD packaging: 0 g
BOX CONTENTS
1 FT Dual Power Driver
1 User manual
1 Mounting kit
1-year international warranty
WARNING
All GMC Racing items that result in power increases exceeding those permitted by the user's national traffic laws are intended exclusively for competitive use. GMC Racing declines all liability for any use of the product contrary to national regulations.
