FT550 PRO V8 COMPLETE WIRING HARNESS
FT550 PRO V8 COMPLETE WIRING HARNESS
SKU:3026109037
Couldn't load pickup availability
Share
Contact us to see if the product is available
The FuelTech FT550 PRO V8 complete harness is the best connection between the FT550 or FT550LITE ECU and a V8 engine.

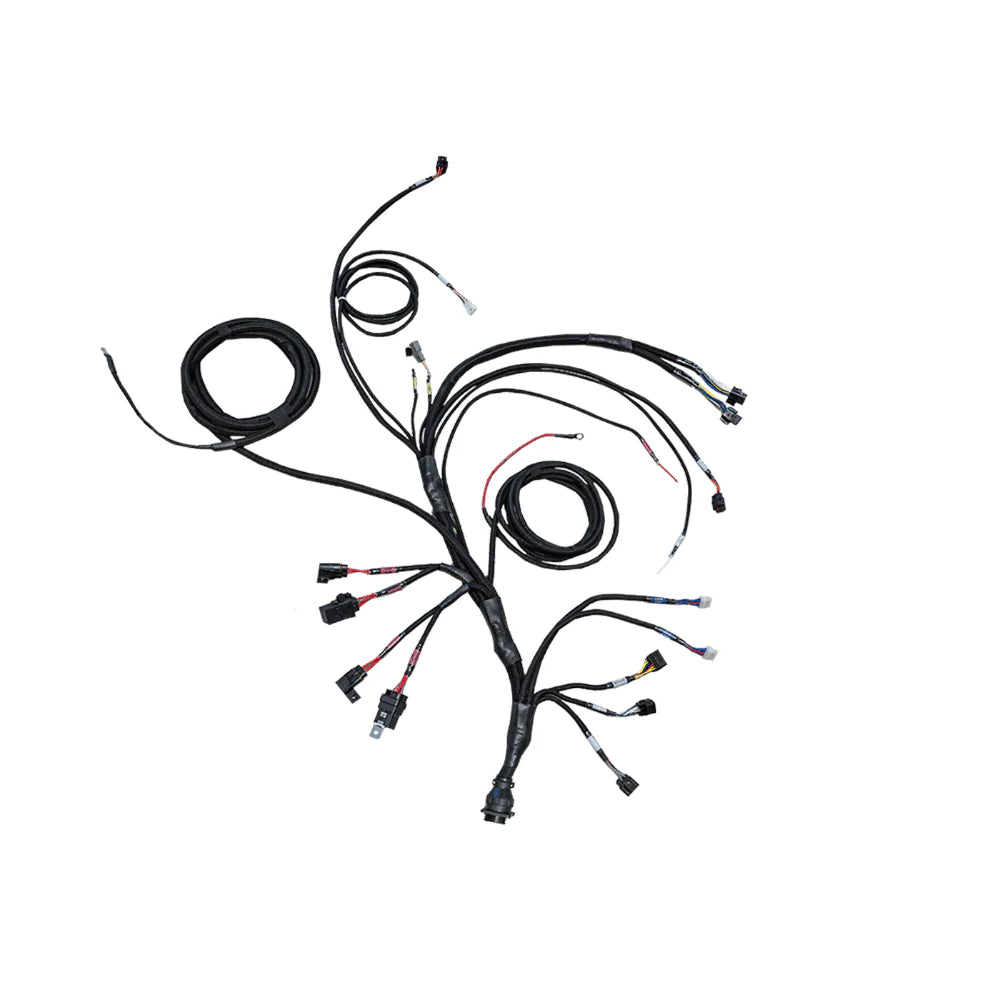

It is supplied complete and ready for installation to fit a V8 engine with all the necessary relays and fuses for a simple 3-wire battery and ignition power connection.

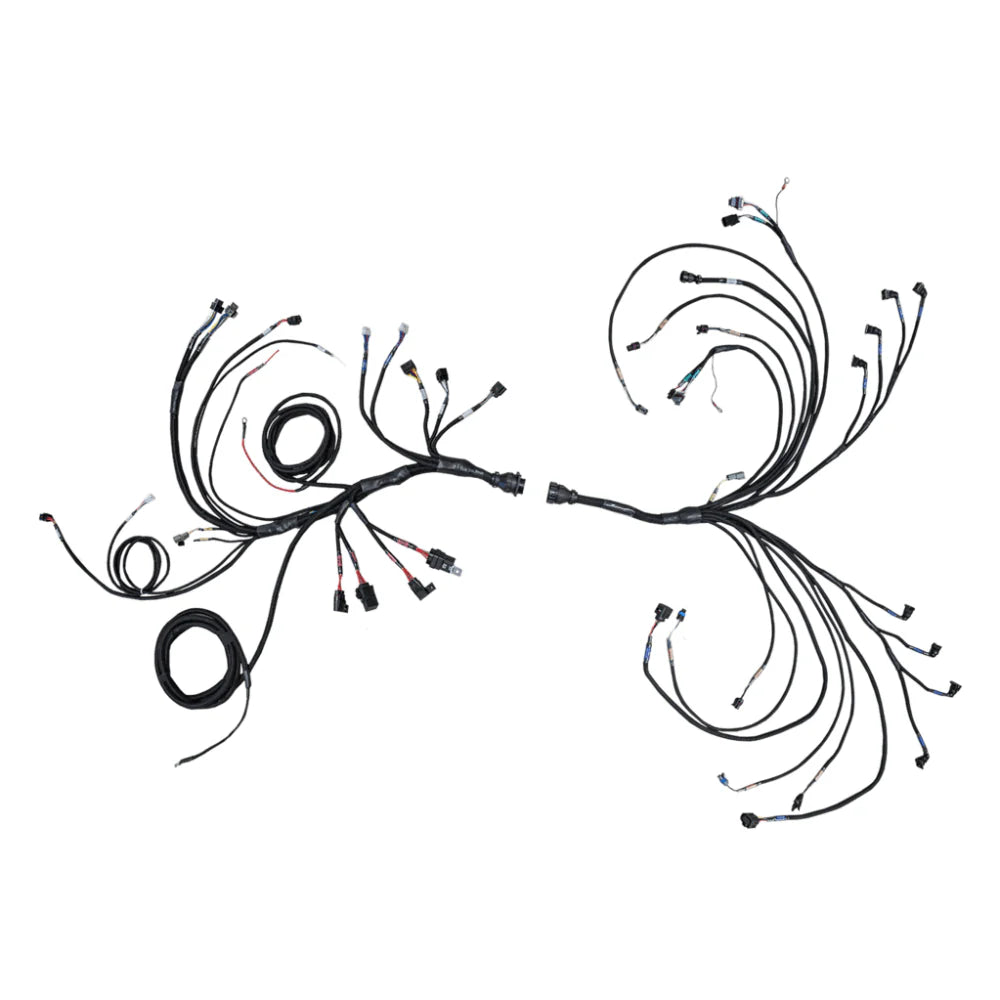

It features a 37-pin firewall connector that simplifies installation and, thanks to its modular design, adding individual coils is as easy as connecting additional harnesses using the integrated output connectors.
Each connector is labeled, and the harness connectors and insulation are resistant to heat, moisture, and oil.
PRODUCT FEATURES
- The FT550 PRO V8 Complete Harness is a wiring harness designed to install a FuelTech FT550 on almost any competition V8 application. It is configured for 8 EV1 injectors.
- It is pre-terminated to fit a V8 engine with all necessary relays and fuses for a simple 3-wire battery and ignition power connection. It features a 37-pin firewall connector that simplifies installation and, thanks to the modular structure, adding individual coils is as easy as connecting additional wiring using the integrated output connectors. Each connector has its own label, and the connectors and wire insulation are heat, moisture, and oil resistant.

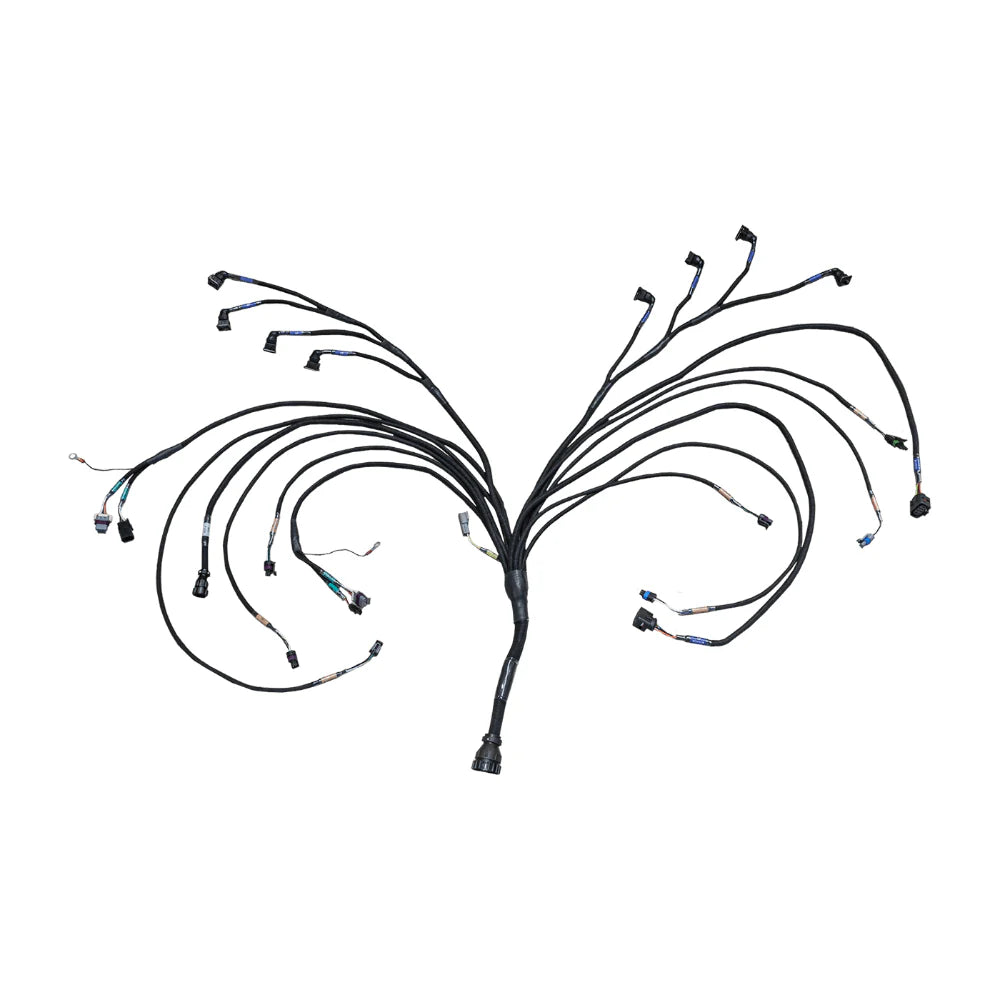

- It has most engine sensors pre-wired: TPS, Hall and VR crankshaft trigger, Hall and VR camshaft synchronization, fuel pressure, oil pressure, wastegate pressure, turbo backpressure, coolant and intake air temperature, driveshaft, and more.
- It comes pre-wired for 2x of our EGT-4 CAN modules.
- It can be used directly with a distributor-type ignition or with additional auxiliary harnesses to have coil-per-cylinder ignition, such as smart coils or the FuelTech FTSPARK CDI unit with an additional harness.
- This harness is configured for two wideband O2 conditioners and two O2 sensors. It is also possible to use an additional adapter for a dual-channel alcohol O2 with NTK O2 sensors (requires Bosch to NTK adapters).
- There is an INPUTS connector to connect up to 5 additional input channels for engine or chassis data logging (e.g., transbrake button, suspension travel sensors, input shaft RPM, staging button, and much more).
- There are 2 additional OUTPUTS connectors to connect custom outputs such as wastegate boost control solenoids, transbrake solenoid, exhaust and lockup valves, gear shifting, nitrous stages, and more.
WHAT'S IN THE BOX
-
1 FT550 PRO V8 complete harness
-
1 8-way connector kit
-
1 10-way connector kit
-
1 12-way connector kit
- 1 operation and installation guide
ATTENTION
All GMC Racing items that result in power increases exceeding those provided for by the road traffic regulations of the user's country are intended exclusively for competitive use.
GMC Racing declines all responsibility for any use of the product contrary to national regulations.
