FT600 PRO V8 COMPLETE WIRING HARNESS
FT600 PRO V8 COMPLETE WIRING HARNESS
SKU:3026109080
Couldn't load pickup availability
Share
Contact us to see if the product is available

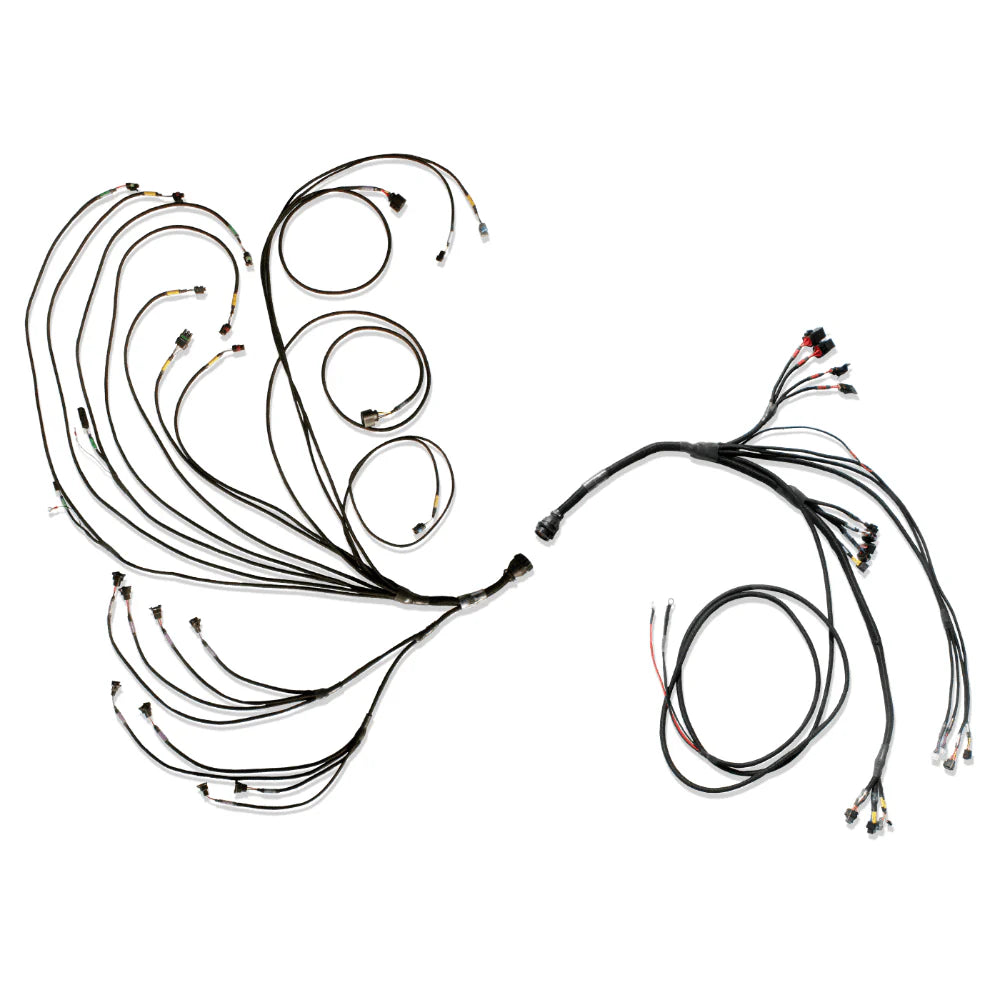

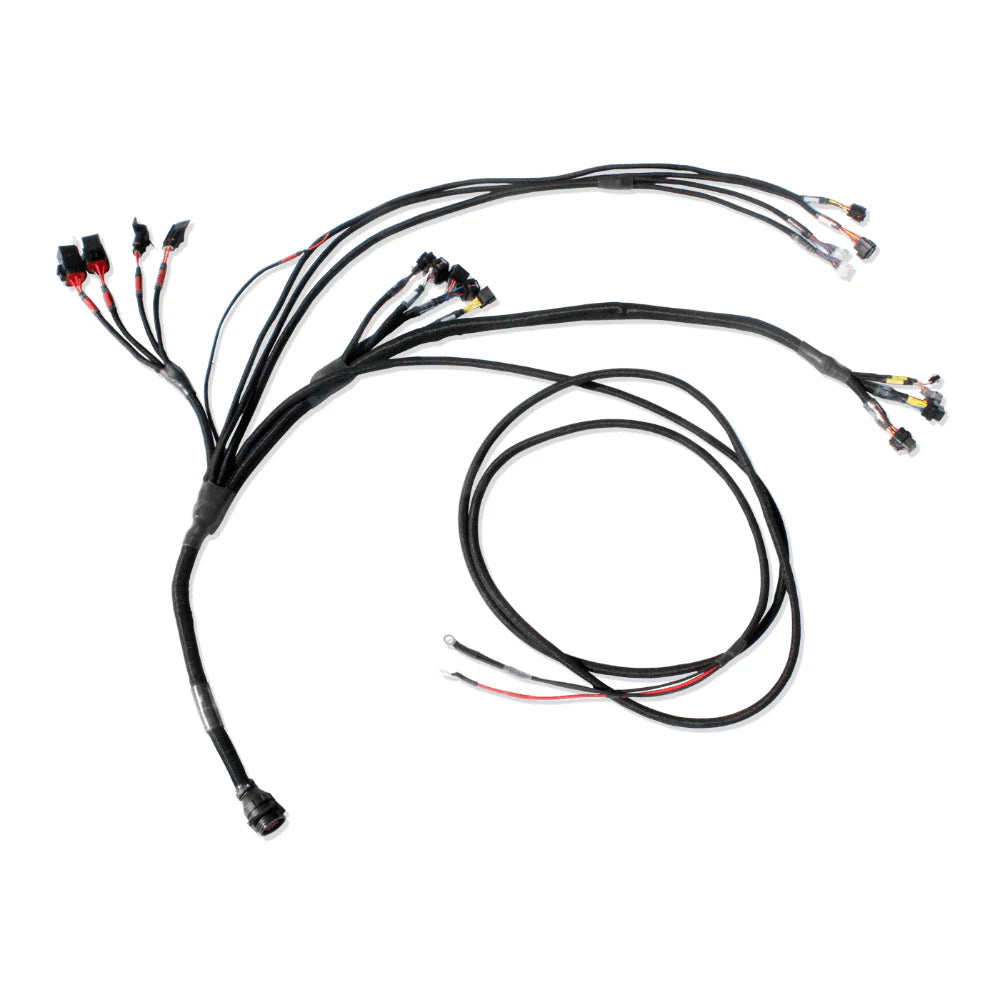

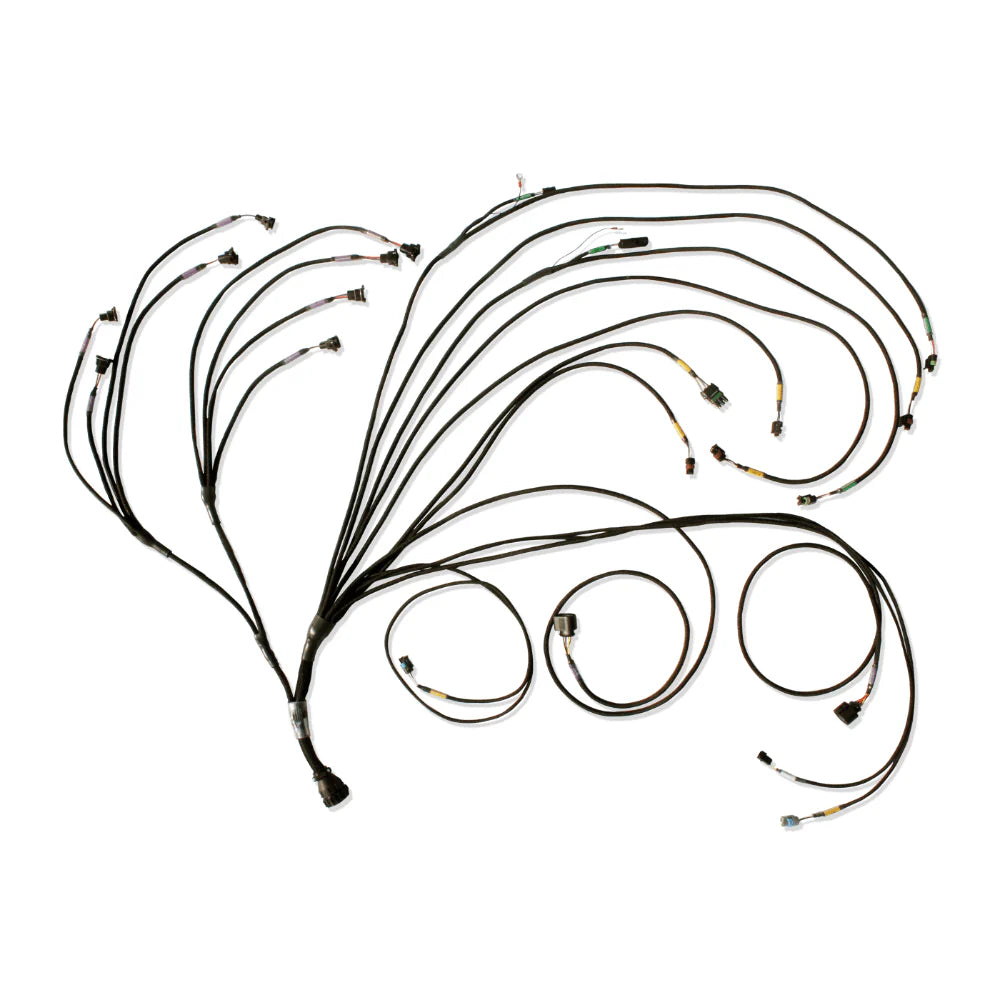

The FuelTech FT600 PRO V8 complete harness is the best connection between the FT600 ECU and a V8 engine.
It comes complete and ready for installation to fit a V8 engine with all the necessary relays and fuses for a simple 3-wire connection to the battery and ignition power.
It features a 37-pin firewall connector that simplifies installation, and thanks to the modular design, adding a second set of injectors or individual coils is as easy as plugging in additional harnesses using the integrated output connectors. Each connector is labeled, and the harness connectors and insulation are heat, moisture, and oil resistant.
PRODUCT FEATURES
-
The FT600 PRO V8 complete harness is designed to install a FuelTech FT600 on almost any racing V8 application. It is configured for 8 EV1 injectors and can support 16 EV1 injectors using an optional secondary adapter harness.
- It has most engine sensors pre-wired: TPS, Hall and VR crankshaft trigger, Hall and VR cam sync, fuel pressure, oil pressure, wastegate pressure, turbo backpressure, coolant and intake air temperature, and more.
- It can be used directly with a distributor-type ignition or with additional auxiliary harnesses to have coil-per-cylinder ignition, such as smart coils or the FuelTech FTSPARK CDI unit with an additional harness.
- This harness is configured for two Nano wideband O2 conditioners and two O2 sensors. An additional adapter can also be used for a dual-channel alcohol O2 with NTK O2 sensors (requires Bosch to NTK adapters).
- There is an INPUTS connector to connect up to 13 additional input channels for engine or chassis data logging (e.g., driveshaft RPM, transbrake button, suspension travel sensors, input shaft RPM, staging button, and much more).
- There are 3 additional OUTPUTS connectors to connect custom outputs such as wastegate boost control solenoids, transbrake solenoid, exhaust and lock valves, gear shifting, nitrous stages, and more.
WHAT'S IN THE BOX
-
1 FT600 PRO V8 complete harness
-
1 Peak & Hold PRO jumper
-
1 8-way connector kit
-
1 10-way connector kit
-
1 12-way connector kit
-
1 16-way connector kit
- 1 User and installation guide
WARNING
All GMC Racing items that result in power increases above those permitted by the user's country road regulations are intended exclusively for competitive use.
GMC Racing declines all responsibility for any use of the product that is contrary to national regulations.
