Elite 1500 + Honda OBD-I B series Plug 'n' Play Adapter Wiring Kit
DESCRIPTION
COMPATIBILITY : Plug 'n' Play factory ECU replacement for Honda OBD-I B-series 92-95 Civic, Integra and Prelude. 90-95 Accord. Manual transmission only.

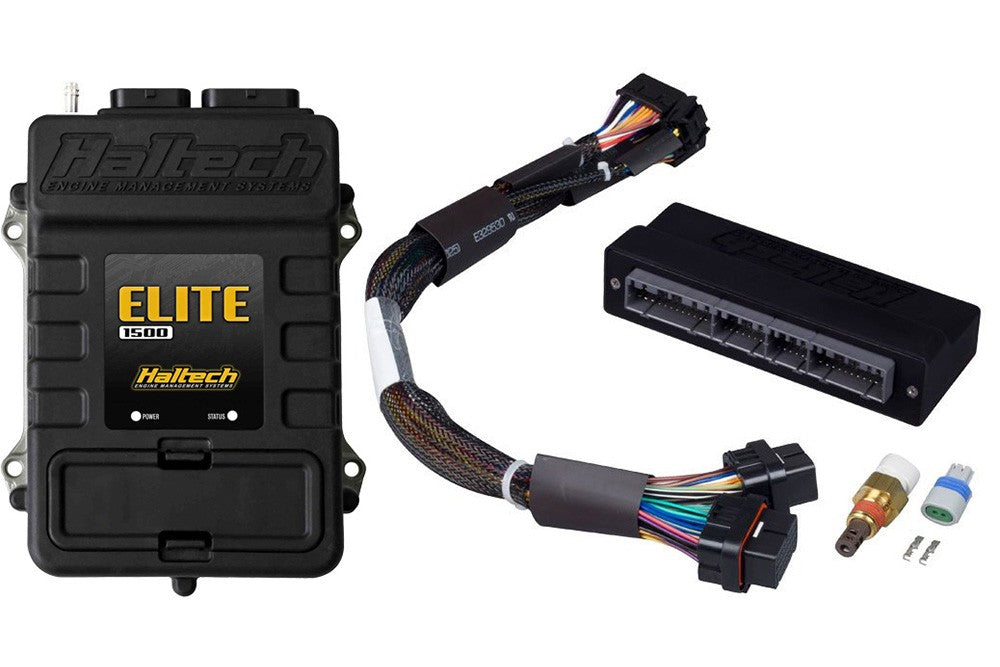

INCLUDES : Elite 1500 ECU with DBW and race functions, injection molded plastic plug 'n' play adapter wiring harness, M14 x 1.5 air temperature sensor with matching plug and pin, auxiliary I/O 16 Pin TYCO plug and pin, USB programming cable and USB software key.
Product specifications
Haltech's Elite1500 ECU takes the art of engine tuning to a whole new level. Featuring a rugged, environmentally sealed waterproof case, intake cam control, short- and long-term map learning, compass control, and much more, the Elite 1500 ECU gives engine calibrators the tools they need to get the job done. Alongside the Elite 1500 ECU, you'll find the Elite Software Programmer (ESP), which offers unprecedented levels of functionality and ease of use in an engine control package. Together, they bring cutting-edge technology to tuners and performance enthusiasts worldwide.
Supports 1 to 12 cylinder engines
2 rotor motors
Normally aspirated or forced induction
Load sensing via throttle position (TPS), manifold absolute pressure (MAP) or mass air flow (MAF)
Gradual, sequential, semi-sequential, batch or multipoint injection models
Distributor ignition systems, multi-coil systems, CDI range expansion or Haltech Multiplex CDI systems
Connect to a wide range of displays and expansion devices via CAN.
Waterproof case (with pocket case attached)
4 x Fuel injection
4 x ignition outputs
12 x digital outputs
10 x analog voltage inputs
4 x synchronized pulse inputs
3 x dedicated inputs (Knock, ignition switch and on-board MAP sensor)
2 x dedicated motor position inputs with broad trigger type support
Up to 45 channels of Input/Output (I/O) expansion (via CAN)
Portable USB Communication (Windows)
ESP Calibration Software - Intuitive and easy to use
ATTENTION
All GMC Racing items that provide horsepower increases beyond those permitted by the highway code in the user's country are intended for competitive use only. GMC Racing declines all responsibility for any use of the product contrary to national regulations.
