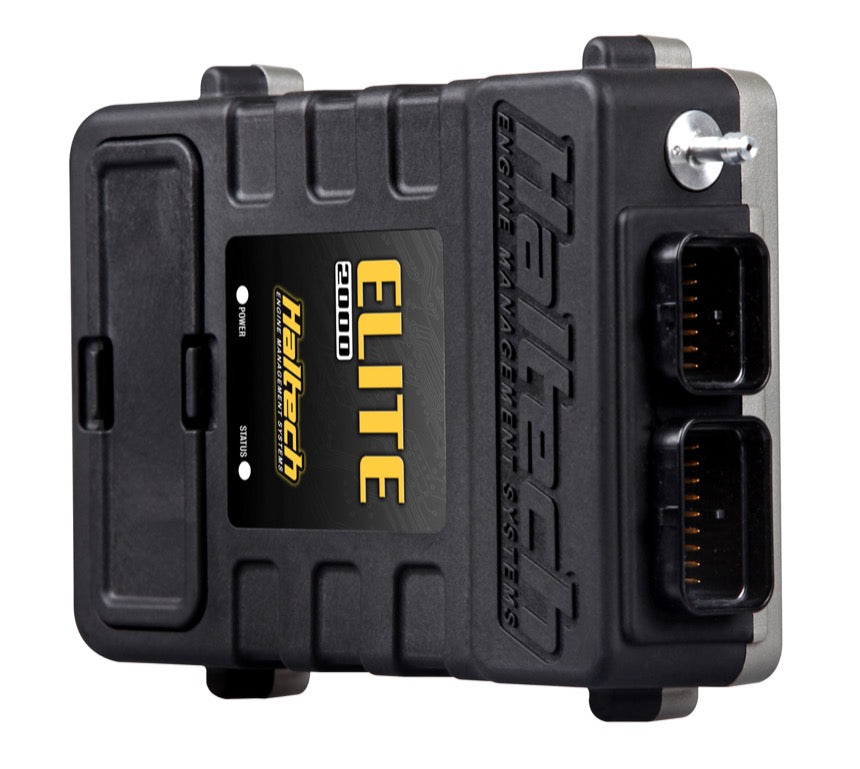

HALTECH Elite 2000 ECU + Plug and Socket Set

Haltech's Elite 2000 ECU features a rugged, watertight case, intake cam control, short and long term map learning, dual channel knock control and much more, the Elite 2000 ECU provides engine tuners with the tools they need to get the job done right.

DESCRIPTION

OUTPUTS : up to 8 injector and 8 ignition.

COMPATIBILITY : Universal applications 1-12 cylinders or 2-4 rotors.

INCLUDES : Elite 2000 ECU Plug and Pin set to suit

Overview

• Load sensing by throttle position (TPS), manifold absolute pressure (MAP) or mass air flow (MAF)
• Gradual, sequential, semi-sequential, batch or multi-point injection schemes
• Distributor ignition systems, multi-coil systems, extended CDI range or Haltech systems
• CDI Multiplex
• Connect to a wide range of display dashes and expansion devices via CAN.
• Waterproof case (with pocket case attached)
• 8 fuel injection outlets
• 8 ignition outputs
• 10 x digital outputs
• 10 analog voltage inputs
• 4 synchronized pulsed inputs
• 4 dedicated inputs (Dual Knock, ignition switch and integrated MAP sensor)
• 2 dedicated motor position inputs with extended trigger type support
• Up to 45 channels of Input & Output (I/O) expansion (via CAN)
• USB Laptop Communication (Windows)
• ESP Calibration Software - Intuitive and easy to use


Engine adaptability

• Supports 1 to 12 cylinder engines
• 2 to 4 rotor motors
• Normally aspirated or forced induction
