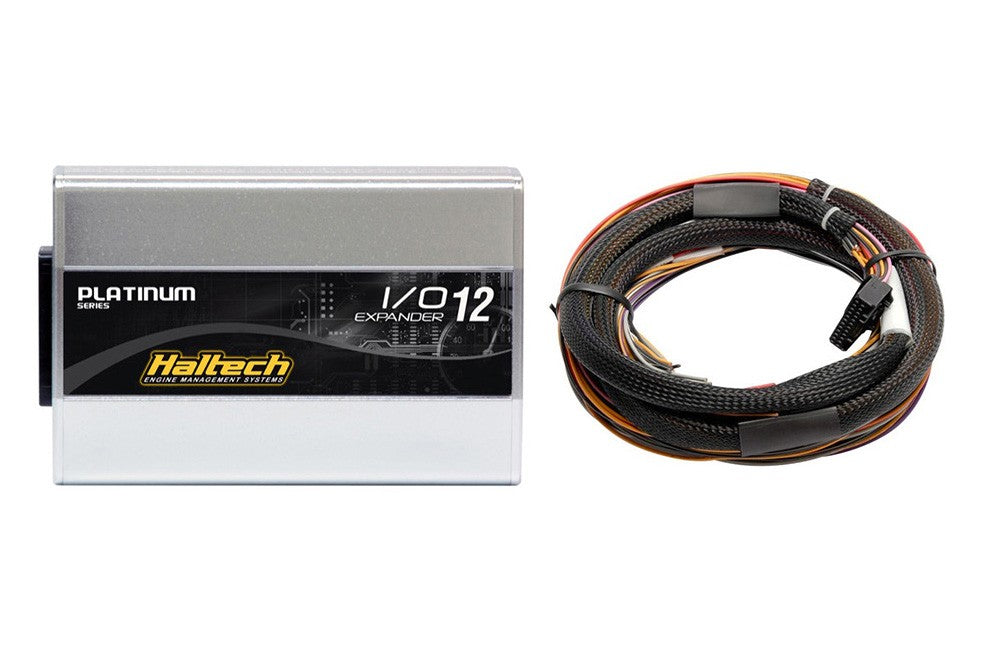

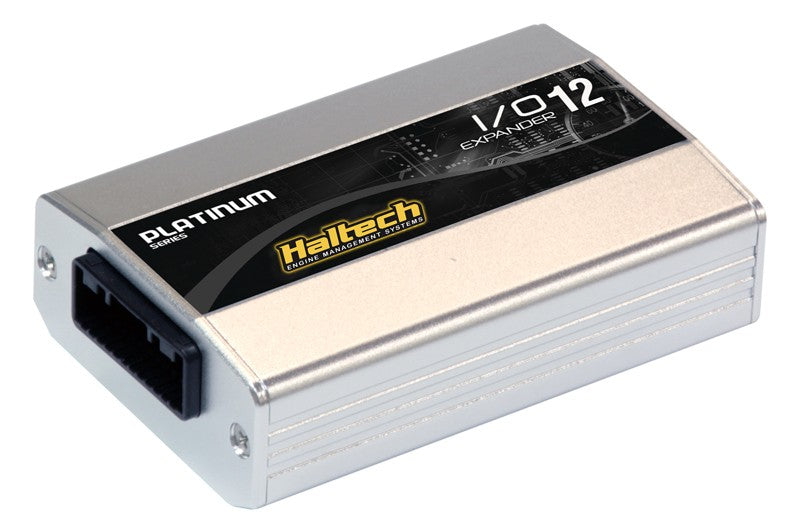

The Haltech I/O Expander 12 allows users to increase the functionality of their Haltech ECU using the Haltech CAN system found on all Platinum Series ECUs. The I/O Expander 12 immediately provides 12 user-configurable inputs and outputs. Simply plug in the CAN cable and start using the additional I/O.
DESCRIPTION
The Haltech I/O Expander 12 allows the user to increase the functionality of their Haltech ECU using the Haltech CAN system, which is included with all Platinum Series ECUs. The I/O Expander 12 immediately provides 12 user-configurable inputs and outputs. Simply plug in the CAN cable and start using the additional I/O.
Product specifications
4 x AVI - Analog voltage inputs (0-5V) * 1
4 x DPI - Pulse digital inputs (0-5 V - Max. Freq 300 Hz) * 1
4 x DPO - Pulse digital outputs (Pullup 5 V / 12V - Max 1A) * 1
Transmit rate of 20mS to the Haltech ECU for each channel.
User-definable "Safe State" for each output in the event of communication loss or failure.
Switchable pull-up resistors on AVI channels for use with temperature sensors.
Power and status LEDs
Powered by the CAN bus. External power is only required if DPOs are to be used.
Multiple I/O expansion boxes can be used on certain Haltech ECUs
LENGTH : 2.5m (8')
OUTPUTS : 4 pulsed digital outputs (DPO) 4 pulsed digital inputs (DPI) 4 analog voltage inputs (AVI)

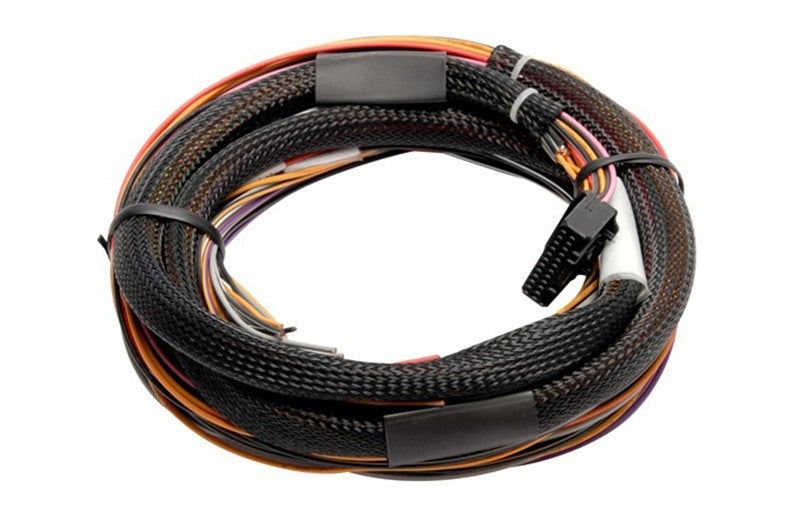

INCLUDES : IO 12 Expander with matching flying lead, TYCO Black DTM-4 to 8-Pin CAN Elite Cable - 300mm (12")
NOTE : Combine two IO 12 expansions with different CAN identifier IDs (Box A or B) for up to 24 additional channels (subject to ECU compatibility)
