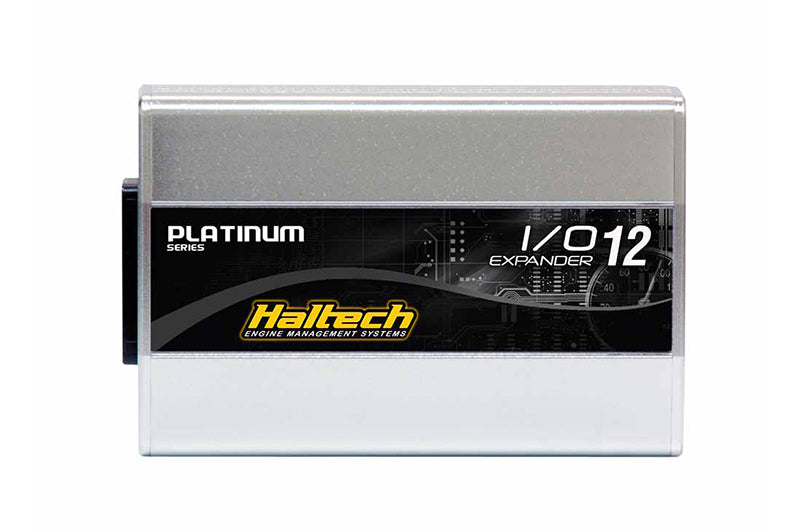

The Haltech I/O Expander 12 allows users to increase the functionality of their Haltech ECU using the Haltech CAN system found on all Platinum Series ECUs. The I/O Expander 12 immediately provides 12 user-configurable inputs and outputs. Simply plug in the CAN cable and start using the additional I/O.
DESCRIPTION
The Haltech I/O Expander 12 allows the user to increase the functionality of their Haltech ECU using the Haltech CAN system, which is included with all Platinum Series ECUs. The I/O Expander 12 immediately provides 12 user-configurable inputs and outputs. Simply plug in the CAN cable and start using the additional I/O.
Product specifications
4 x AVI - Analog voltage inputs (0-5V) * 1
4 x DPI - Pulse digital inputs (0-5 V - Max. Freq 300 Hz) * 1
4 x DPO - Pulse digital outputs (Pullup 5 V / 12V - Max 1A) * 1
Transmit rate of 20mS to the Haltech ECU for each channel.
User-definable "Safe State" for each output in the event of communication loss or failure.
Switchable pull-up resistors on AVI channels for use with temperature sensors.
Power and status LEDs
Powered by the CAN bus. External power is only required if DPOs are to be used.
Multiple I/O expansion boxes can be used on certain Haltech ECUs
Include
Haltech I/O Expander 12 CAN
direct connection cable (600mm) * 2
ATTENTION
All GMC Racing items that provide horsepower increases beyond those permitted by the highway code in the user's country are intended for competitive use only. GMC Racing declines all responsibility for any use of the product contrary to national regulations.
