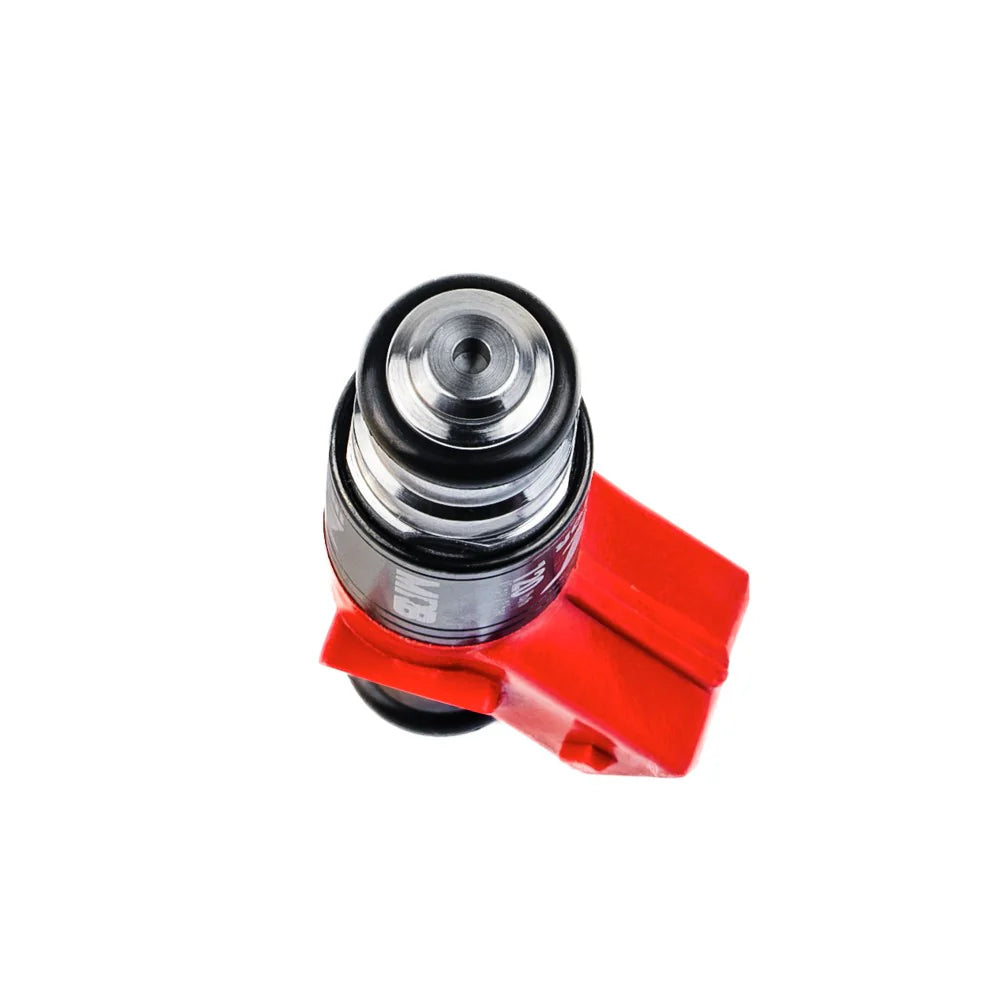

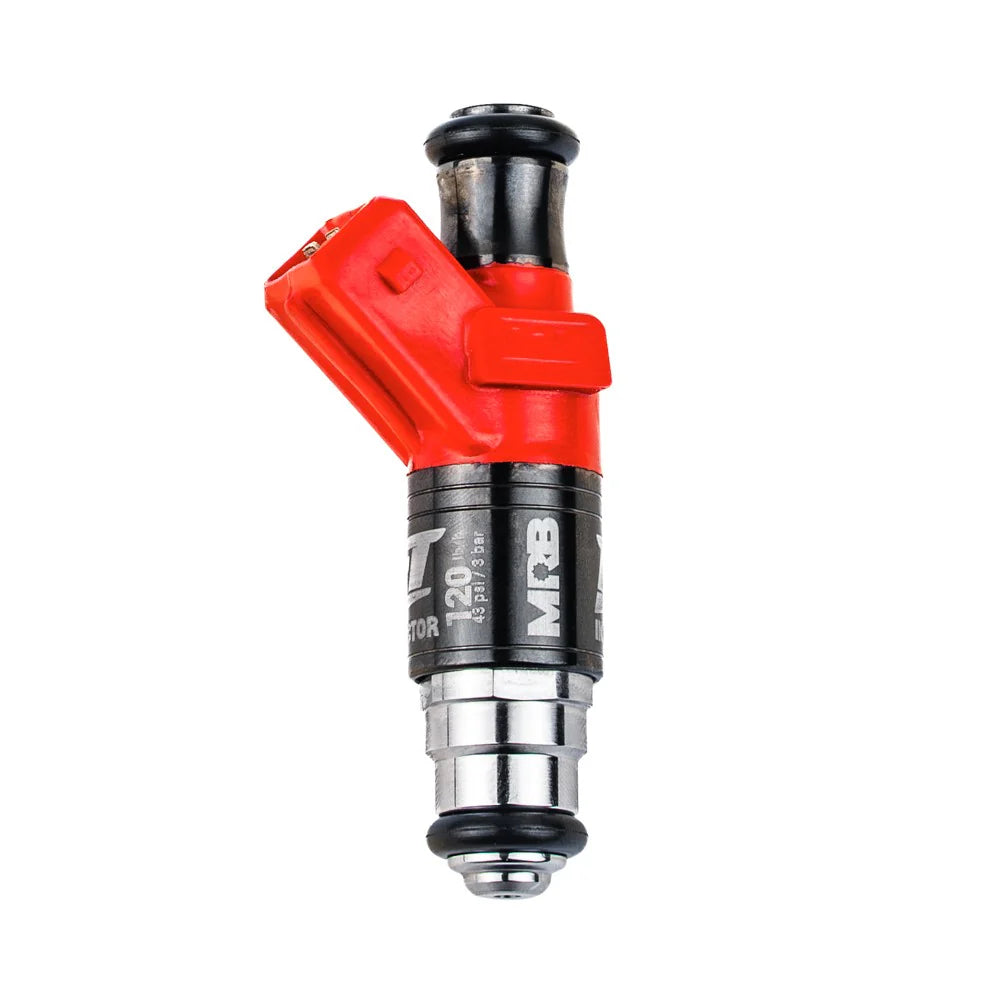

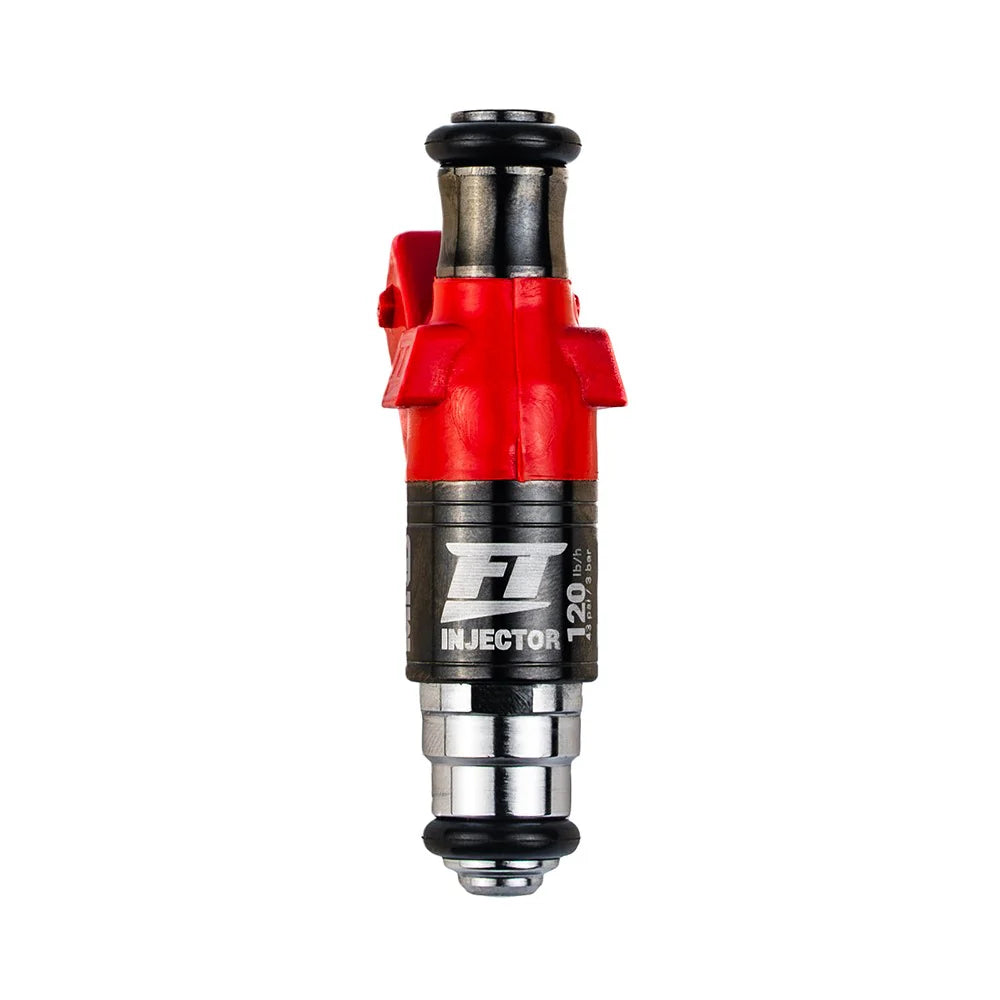

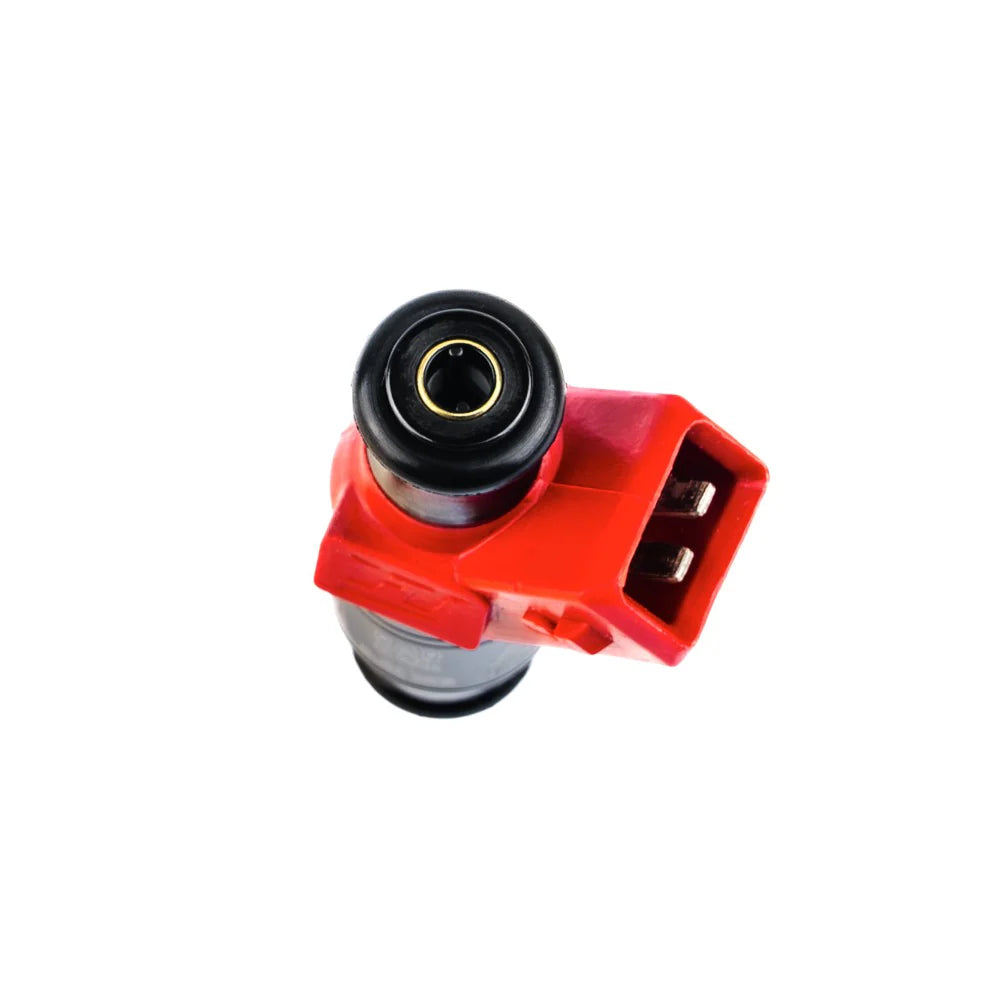

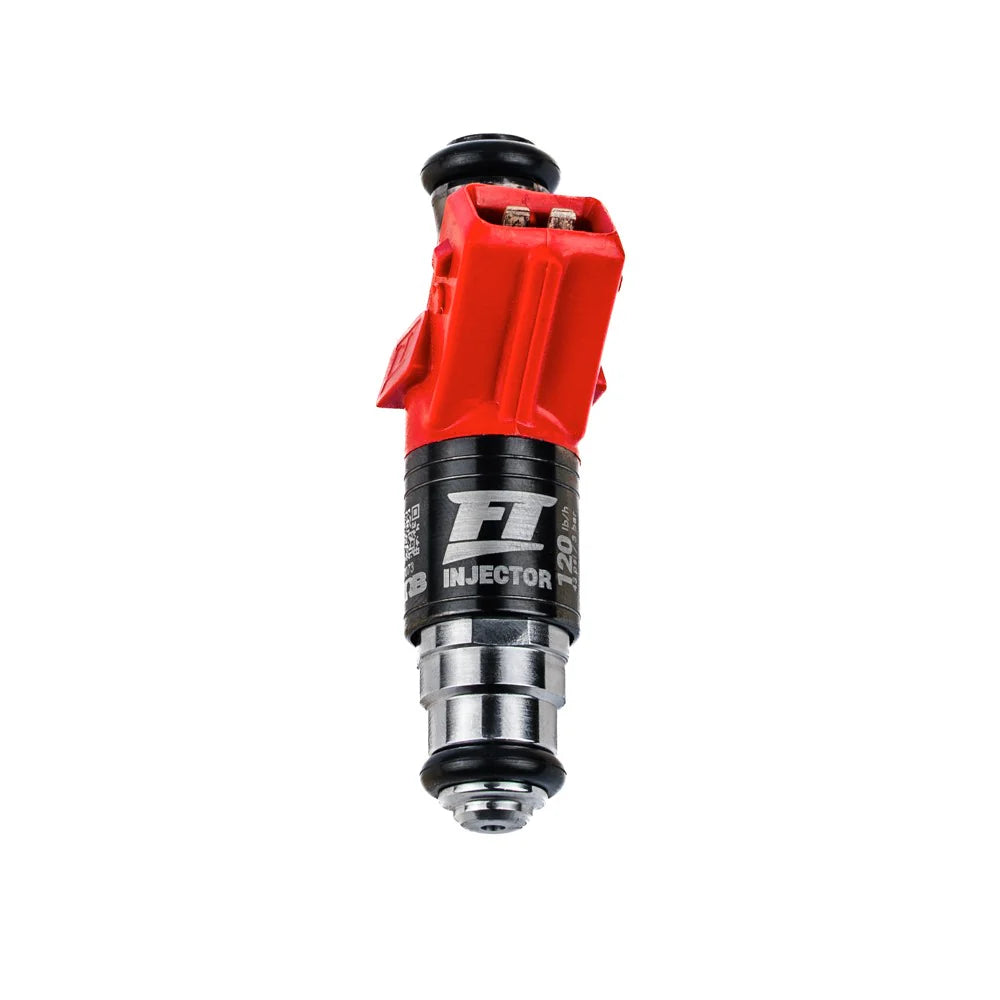

The 120 lb/h (1,260 cc/min @ 43.5 psi) FT Injector is a high-impedance injector from the FT Injector family; it does not require the use of a Peak and Hold driver. It is compatible with all available fuel types (gasoline, ethanol, alcohol, nitromethane, nitropropane, MTBE, and ETBE). It features EV1 connectors with silver-plated terminals for superior conductivity and corrosion-resistant internal components.
PRODUCT FEATURES
REAL flow: all injectors are tested and calibrated to ensure linearity, repeatability, and precision across all cylinders.
Corrosion resistance: internal components guaranteed by salt spray testing performed on all raw materials used.
Total compatibility: can be used with any fuel (Gasoline, Ethanol, Nitromethane, Nitropropane, MTBE, and ETBE).
Universal: compatible with any ECU on the market.
FuelTech quality: design developed prioritizing injector durability and reliability, with official warranty and support.
TECHNICAL DESCRIPTION
Type: High impedance.
Coil resistance: 8.1 - 8.2 Ohm.
Protection rating: IP67 / NEMA6.
DIMENSIONS
Total height: 74 mm
Total width: 18 mm
Upper O-ring diameter: 14.50 mm
Tip: 4.1 mm
Lower O-ring diameter: 14.50 mm
BOX CONTENTS
1 FT Injector.
1 User manual.
Warranty: 90 days
WARNING
All GMC Racing items that result in power increases exceeding those permitted by the user's country road regulations are intended exclusively for competitive use. GMC Racing declines all responsibility for any use of the product contrary to national regulations.
