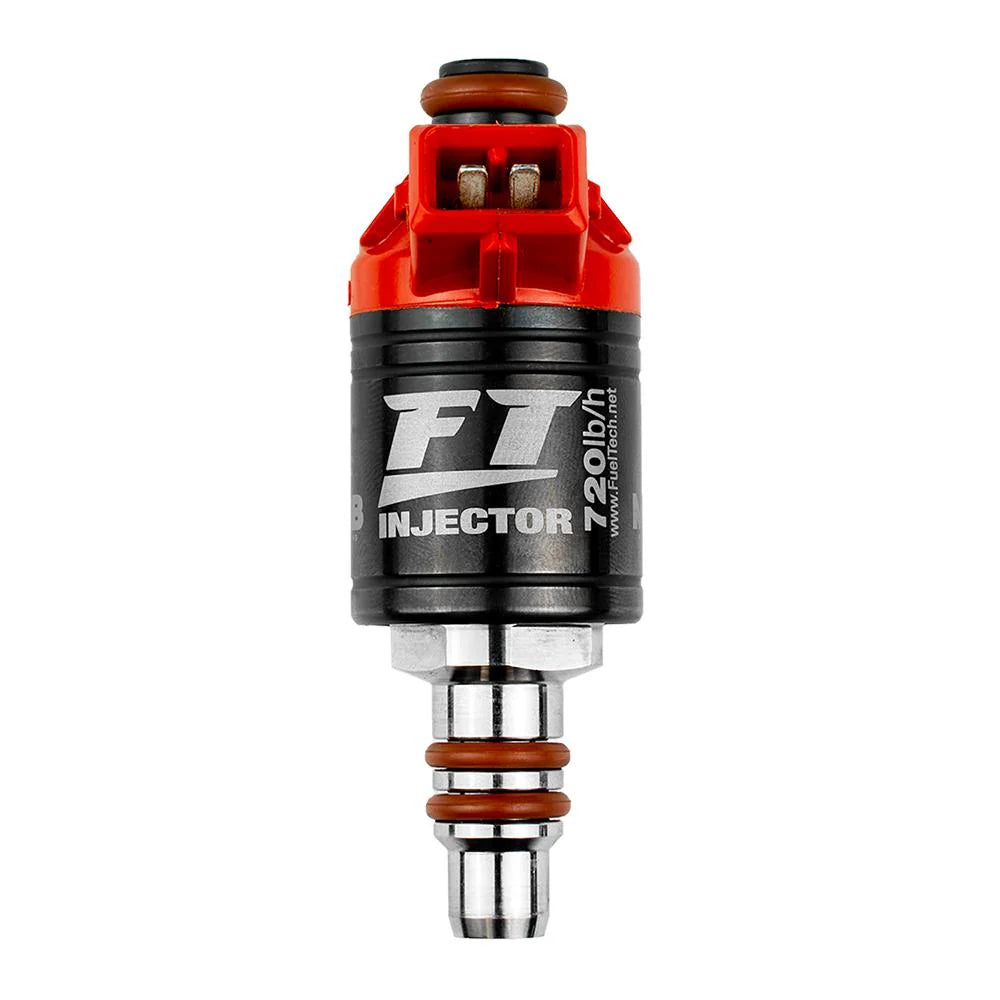

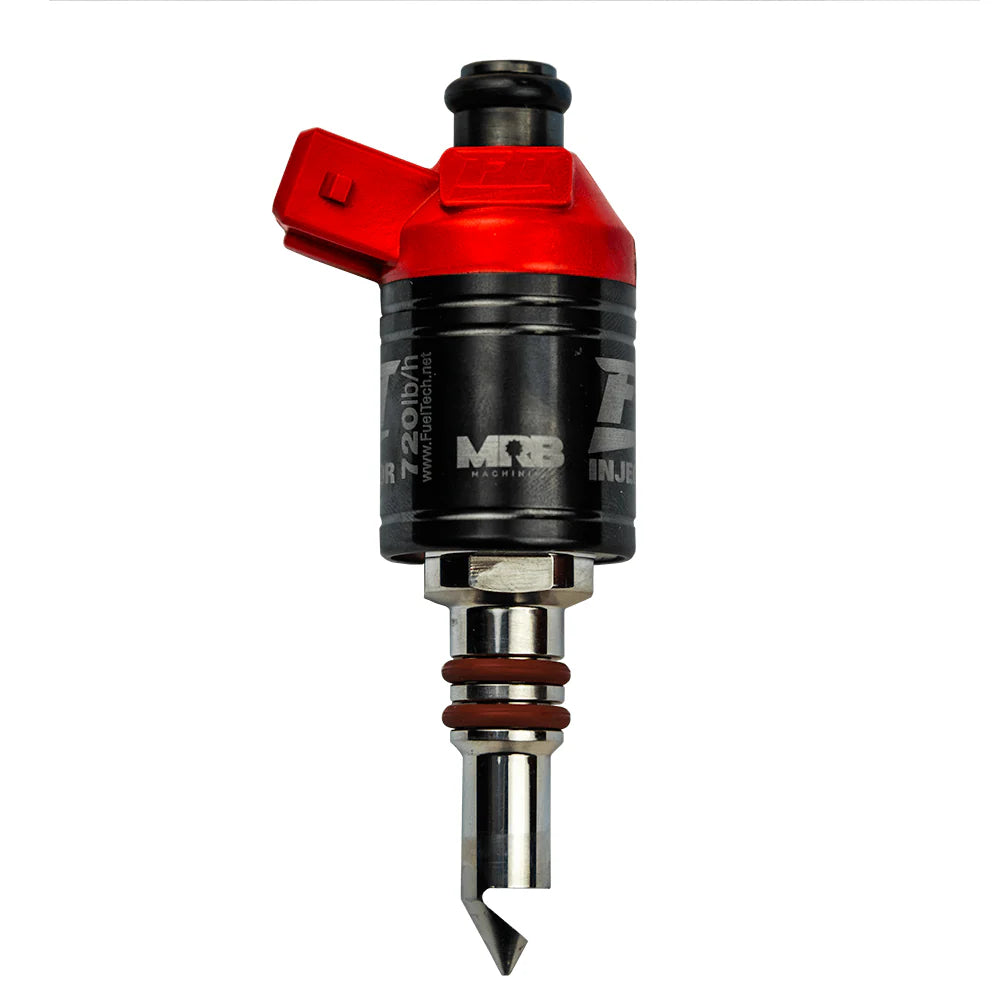

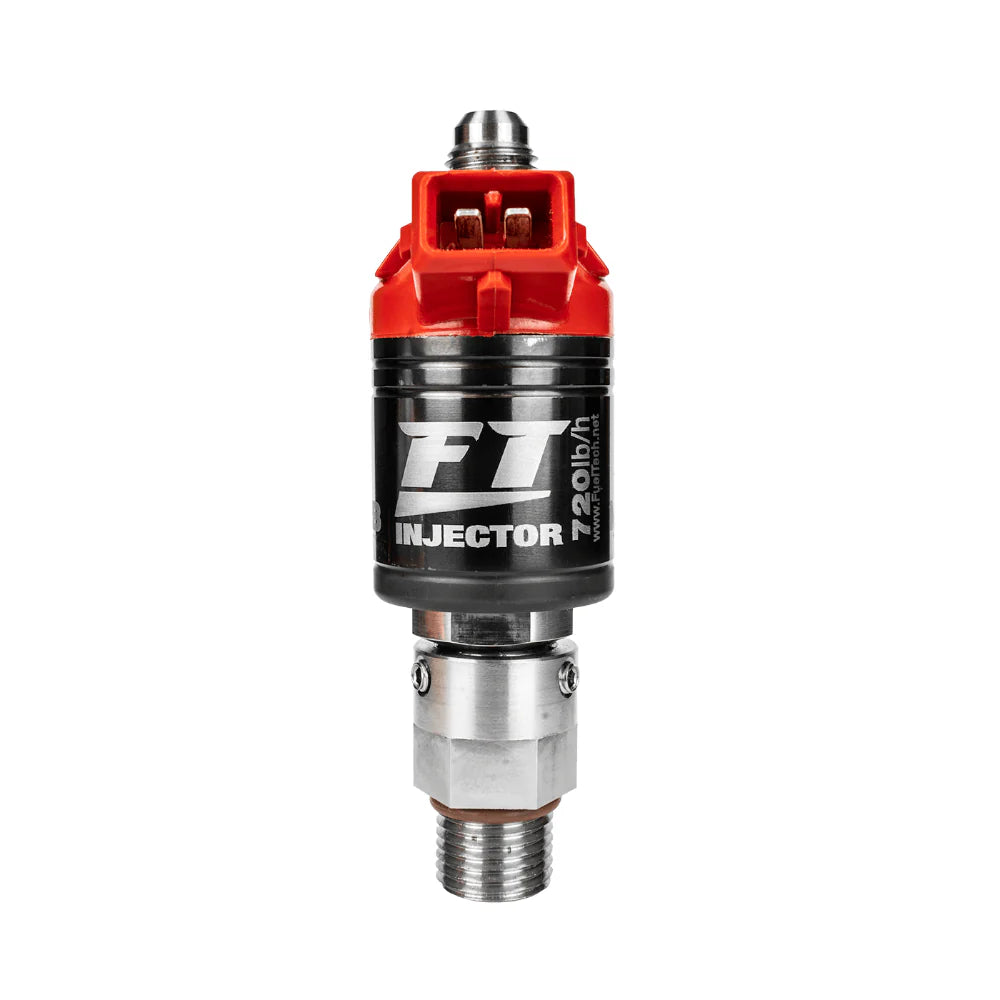

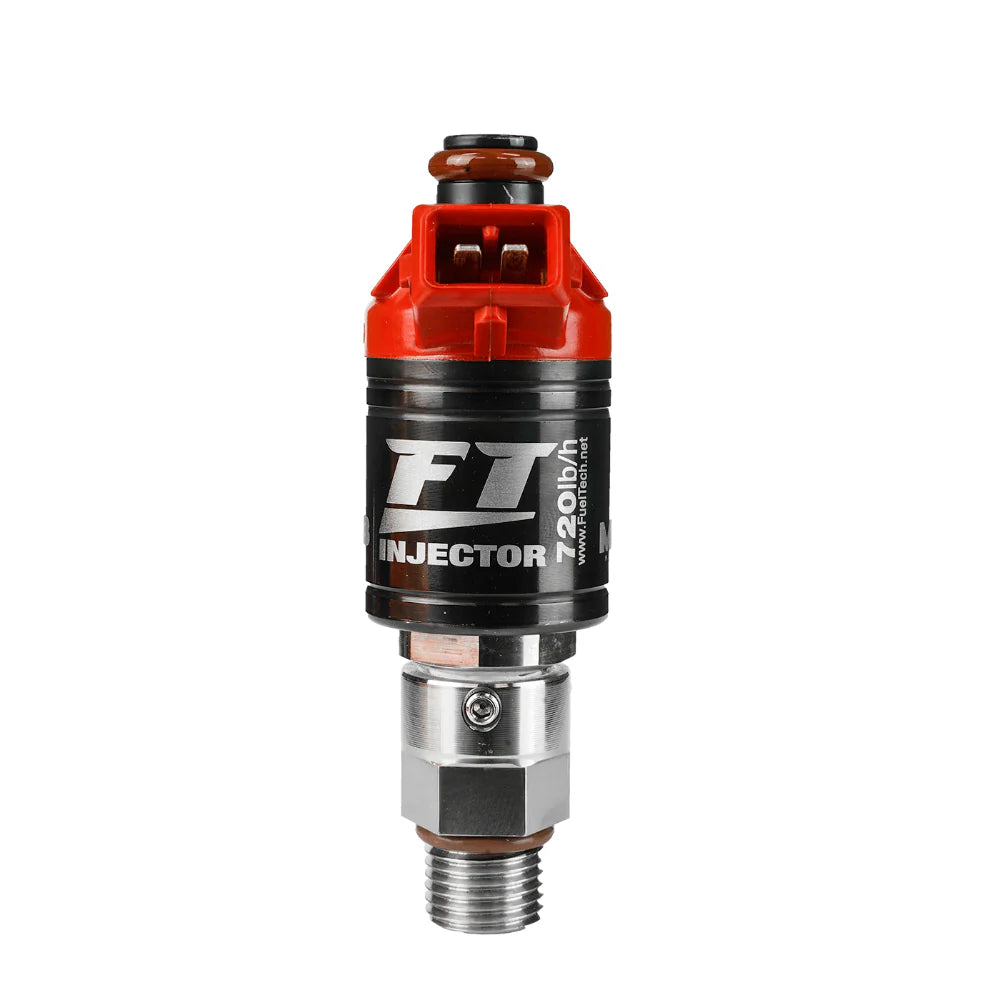

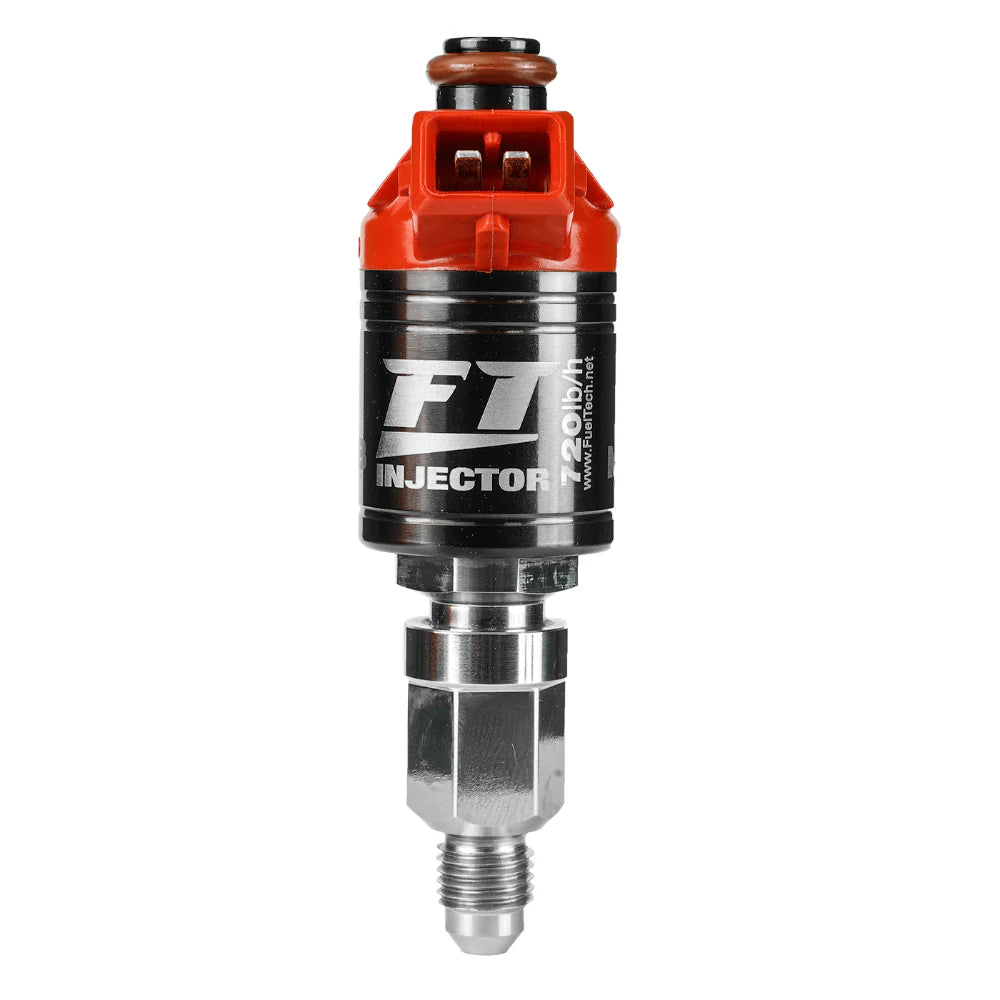

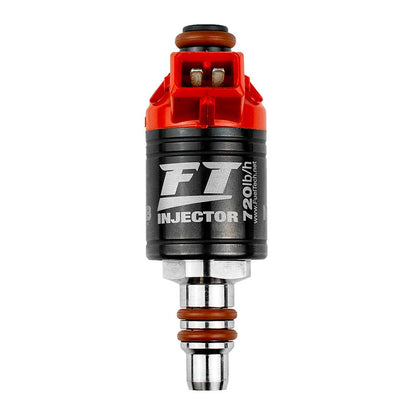

FT 720 LB/H INJECTOR

FT 720 LB/H INJECTOR

SKU:5010107883

Regular price $469.00 USD
Regular price Sale price $469.00 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Contact us to see if the product is available

The 720 lb/h (5,449 cc/min @ 43.5 psi) FT Injector is the flagship of the range in terms of flow rate, with a low-impedance configuration (1.5 Ohm). A Peak & Hold driver, such as the Peak & Hold Driver 8A/2A or the Peak & Hold PRO Injector Driver, is required for operation. FT injectors are compatible with any ECU and all available fuels (gasoline, ethanol, alcohol, nitromethane, nitropropane, MTBE, and ETBE). They feature EV1 connectors with silver-plated terminals for superior conductivity and corrosion-resistant internal components.

PRODUCT FEATURES

  • REAL flow: all injectors are tested and calibrated to ensure linearity, repeatability, and precision across all cylinders.
  • Corrosion resistance: internal components guaranteed by salt spray testing performed on all raw materials used.
  • Maximum efficiency: allows for a drastic reduction in the number of injectors, connections, and piping in your project.
  • Track tested: approved on engines with over 4,000 horsepower.
  • ECU optimization: allows for better utilization of ECU outputs, reducing the complexity of the fuel system.
  • FuelTech Quality: design developed to ensure maximum durability and reliability, supported by an official warranty.

TECHNICAL DESCRIPTION

  • Low impedance: 1.5 Ohm.
  • Driver requirement: Use of a Peak and Hold 8A/2A driver is required.
  • Voltage limit: up to 24V.

DIMENSIONS AND WEIGHT

  • Injector: 86 x 32 mm.
  • Weight: 160 g.
  • Packaging: 223 x 162 x 60 mm.

BOX CONTENTS

  • 1 FT Injector.
  • 1 User manual.

Warranty: 90 days.

ATTENTION

All GMC Racing items that lead to power increases beyond those permitted by the user's country's traffic laws are intended exclusively for competitive use.
GMC Racing declines any liability for any use of the product that is contrary to national regulations.
