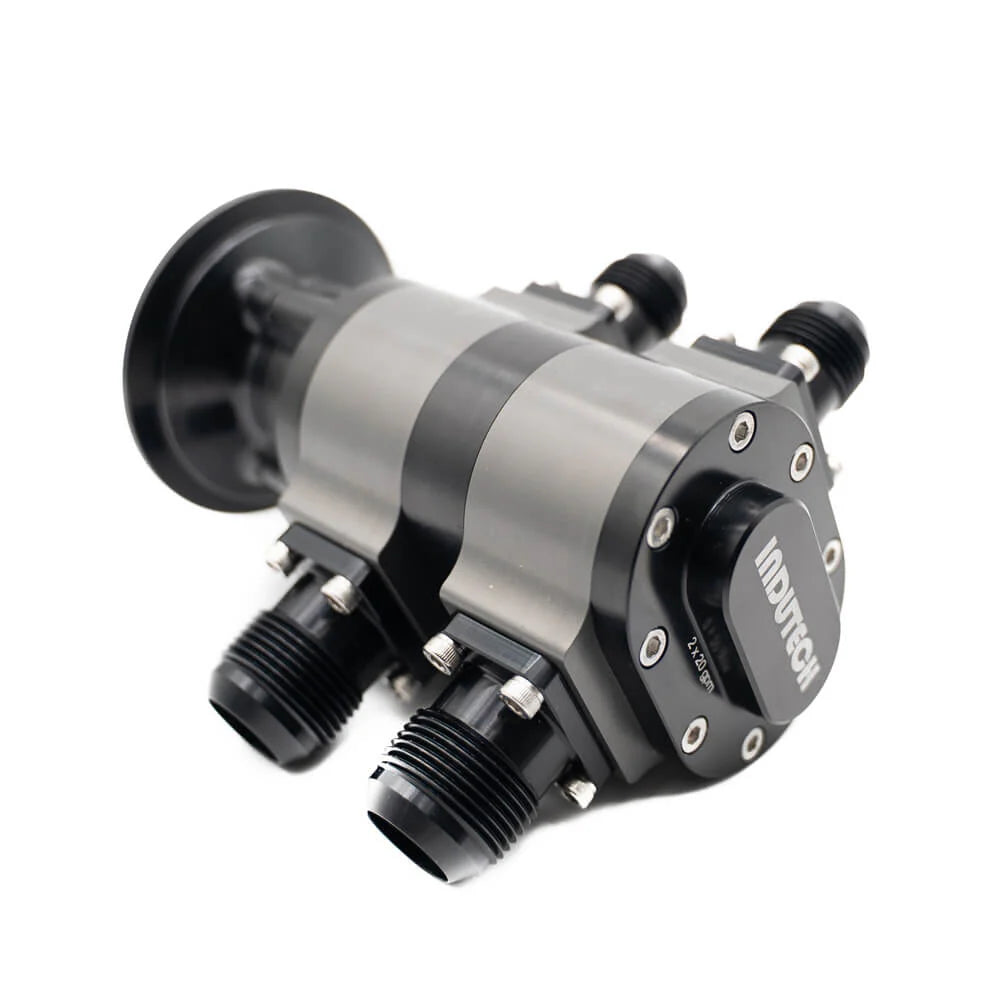

The Indutech Hex Drive mechanical fuel pump is designed to deliver up to 40 gallons per minute (GPM) by combining both stages; this pump is ideal for gasoline, ethanol, or methanol-powered engines. Whether mounted directly to the engine or installed externally, this pump ensures reliable fuel delivery and optimal performance. Developed for use in dual-feed systems that require individual pressure regulators, such as in EFI engine combinations with superchargers (Screw or Roots).
PRODUCT FEATURES
High-performance capacity: Delivers up to 20 GPM per stage, perfect for high-demand electronic fuel injection engines.
Drive versatility: Driven by a 3/8" female hex shaft, compatible with special drives and mounts for various engine models, or installable on the rear of a FuelTech Billet Wet Sump Racing oil pump or other hex-drive mechanical oil pumps using the Indutech flange collar.
Flexible mounting options: Can be mounted externally to the engine with a universal mount or at the rear of the vehicle, driven by a remote mount via Indutech cable.
Durable construction: Features special heat-treated gears and a high-strength hard-anodized body for increased longevity.
Premium materials: Built with 6351-T6 aerospace aluminum for the body and cover, ensuring durability and resilience.
Optimized fluid dynamics: Equipped with an AN16 inlet flange and flanged AN12 and AN10 outlets for efficient fuel flow.
Improved internal components: Heat-treated internal wear plates with PVD coating for superior performance and durability.
Wide operating pressure range: Operates effectively in a pressure range from 2 to 15 bar, adapting to various engine requirements.
WHY CHOOSE THE INDUTECH HEX DRIVE MECHANICAL FUEL PUMP?
The Indutech Hex Drive mechanical fuel pump is the ideal solution for high-performance electronic fuel injection engines. Its robust structure, versatile mounting options, and exceptional delivery capacity make it a reliable choice for racing, high-performance, and daily applications. Ensure your engine runs smoothly and efficiently with Indutech's unmatched quality and innovation.
PRODUCT SPECIFICATIONS
Flow rate: 20 GPM x 2
Drive type: 3/8" female hex shaft
Material: 6351-T6 aerospace aluminum
Inlet: Flange for AN16
Outlet: Flange for AN12 and flange for AN10 included
Collar: Standard 1.45"
Pressure range: 2-15 bar
Gears: Special heat-treated
Coating: Internal wear plates with PVD coating
Recommended parts:

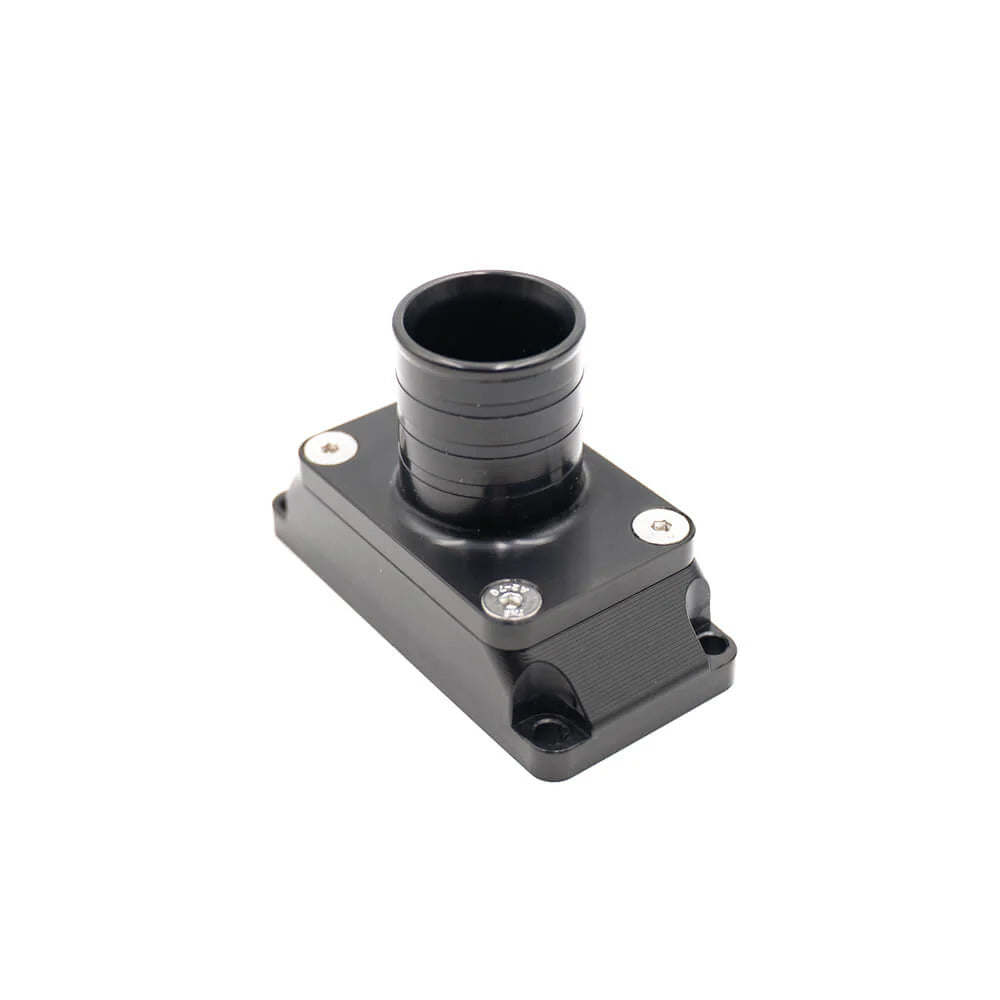

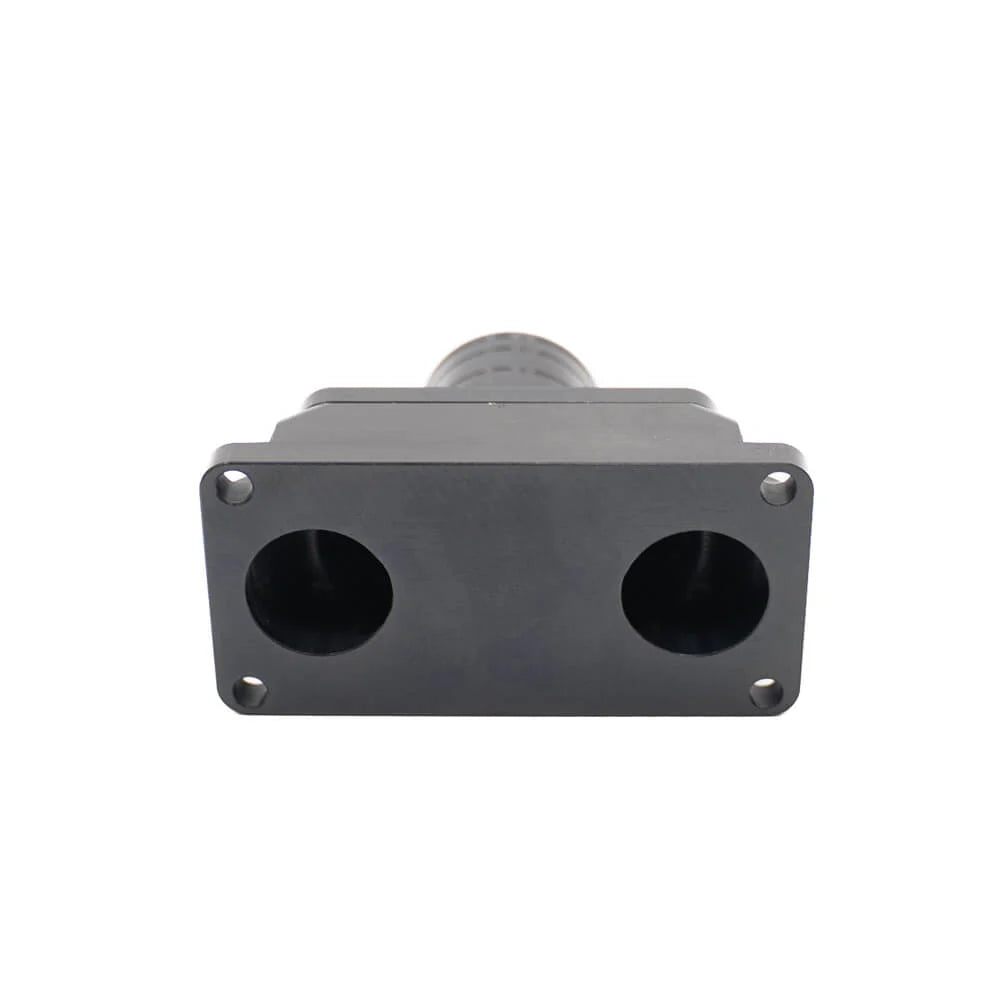

Flange collar for Indutech mechanical fuel pump (Hex Drive)
FT Filter - Fuel
WARNING
All GMC Racing items that result in power increases exceeding those provided by the user's country road regulations are intended exclusively for competitive use. GMC Racing declines all responsibility for any use of the product that is contrary to national regulations.
