Staging control integrated into FT600 / FT550 / FT500 / FT500LITE / FT450 ECUs.
Brake control integrated into FT600 / FT550 / FT500 / FT500LITE / FT450 ECUs.

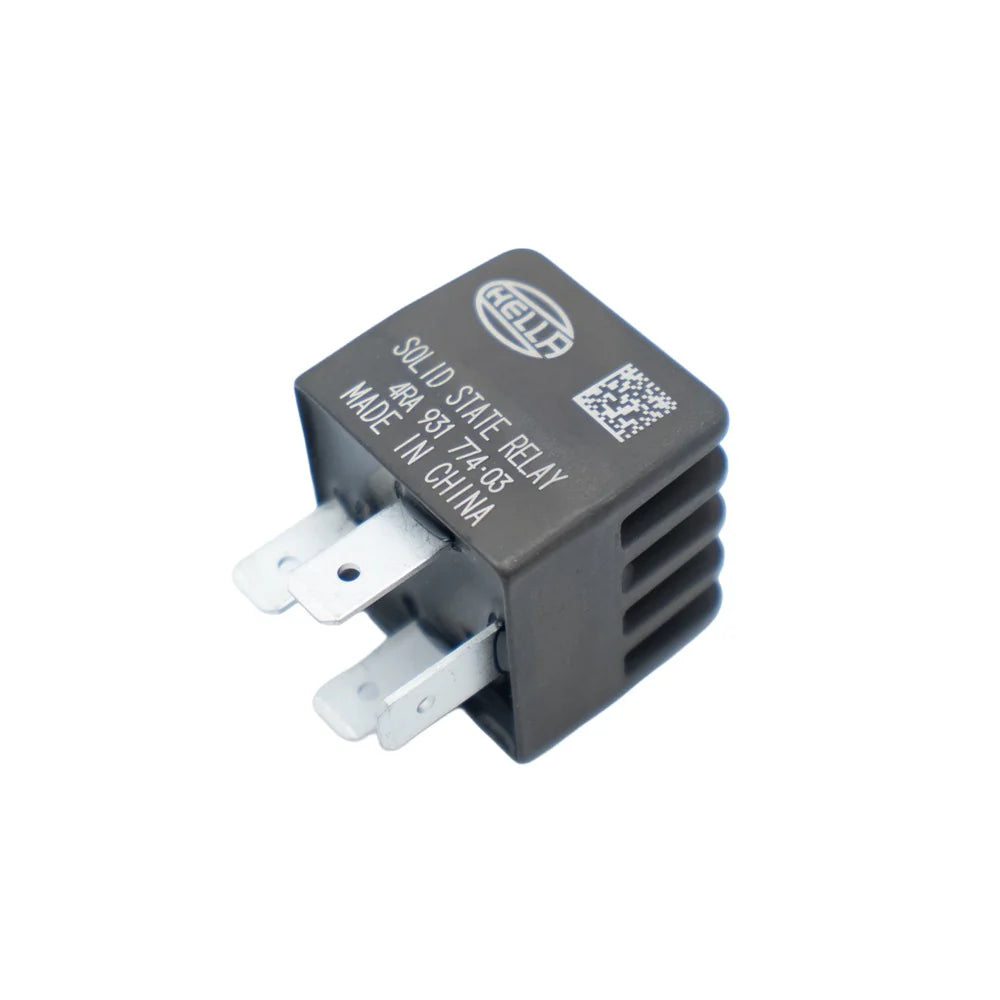

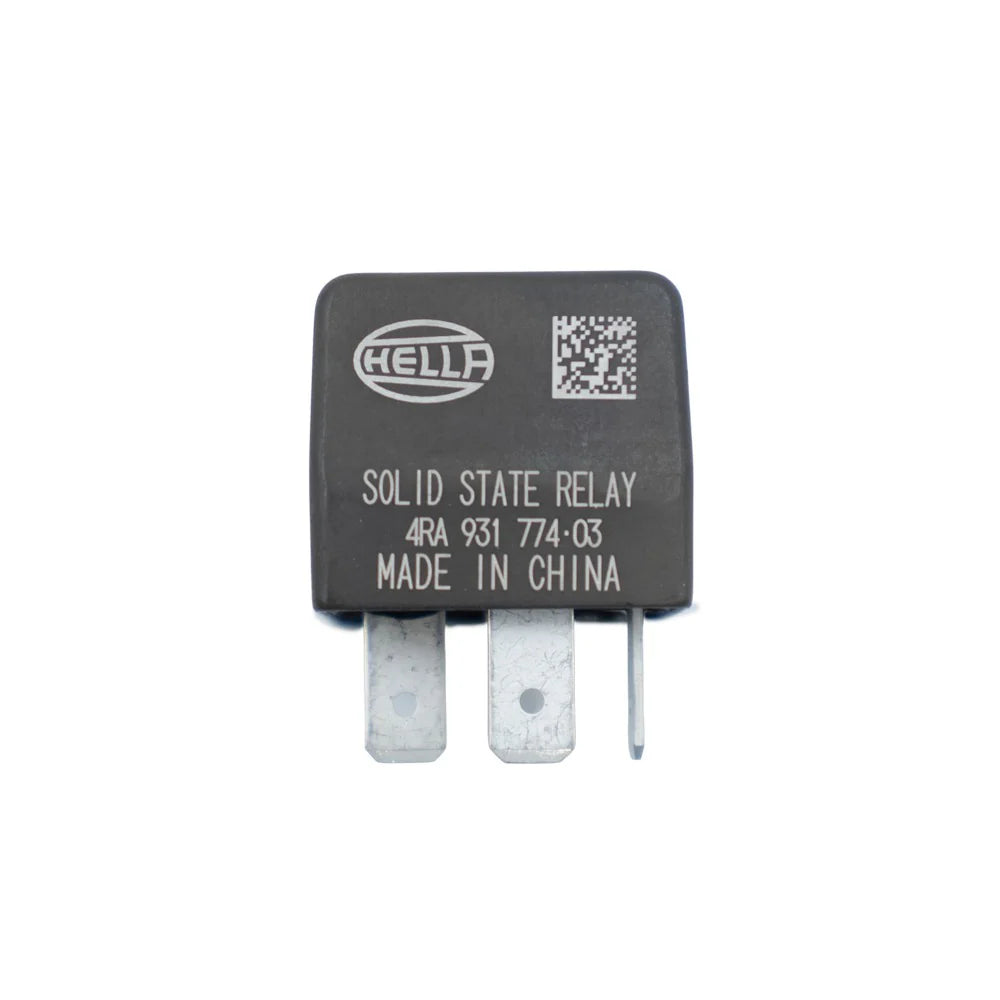

Fast switching speed, perfect for PWM control and for use as a standard relay. No internal mechanical parts. Silent operation.
12V solid state relay
Maximum current: 20A
PWM frequency: 0-1000Hz
Dimensions (W x D x H): 27mm x 27mm x 26mm
Weight: 30g
ELECTRICAL CONNECTIONS
30 – 12V Switched (use a fuse)
85 – Not connected
86 – Activation signal (FT auxiliary output, activated when switched to ground)
87 – Output for load (Normally Open contact - 20A)
WARNING
All GMC Racing items that result in power increases above those permitted by the user's country's traffic laws are intended exclusively for competitive use. GMC Racing declines any liability for any use of the product contrary to national regulations.
