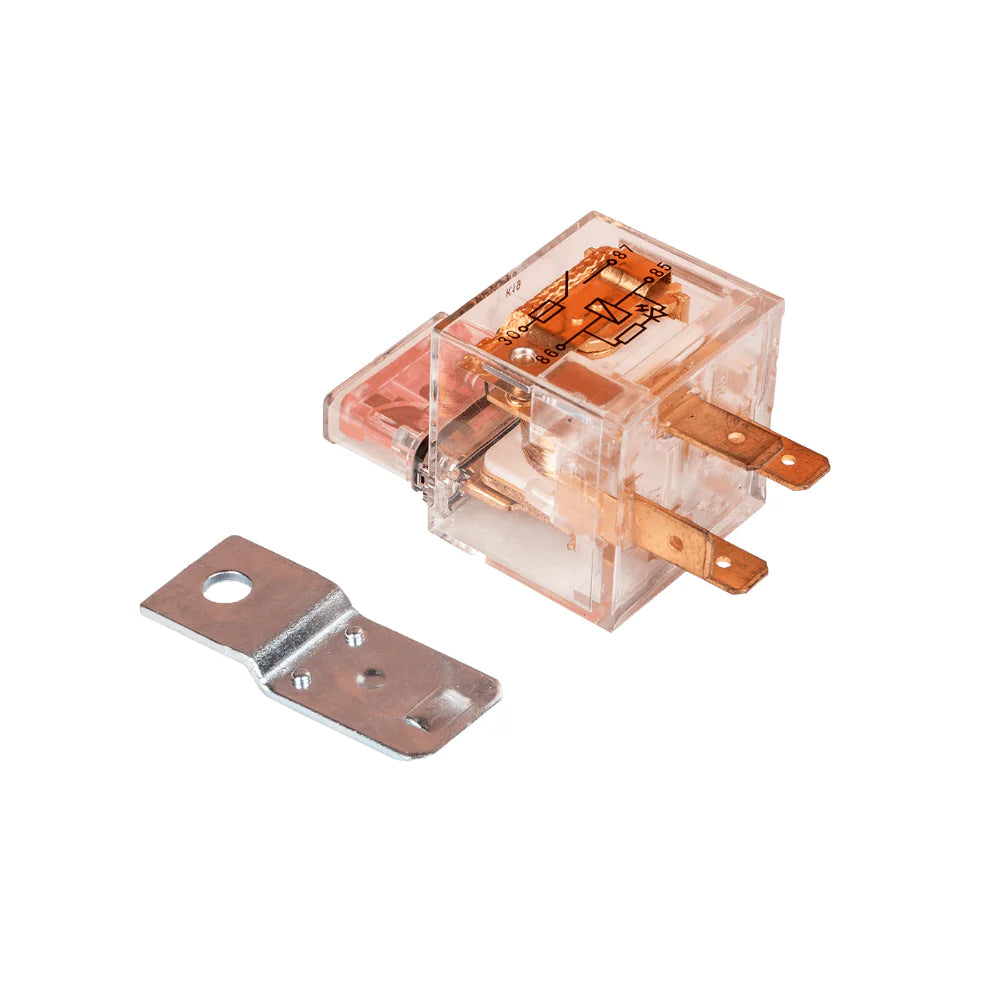

The heavy-duty 40A Integrated Fuse Relay is ideal for powering ECUs, injectors, ignition coils, and other components, providing essential protection and a stable current flow for high-performance applications. Designed to handle up to 40A, it ensures efficient power management when wiring multiple components (one relay for each wired component).
Each component to be connected requires its own dedicated relay, making this unit a versatile choice for custom wiring projects. The FuelTech relay with integrated fuse features straightforward electrical connections:
85 – Activation signal (FT auxiliary output, activated by ground switch)
86 – 12V Switched ignition
30 – 12V Battery
87 – Load output (normally open, 40A capacity)
For easier installation, pair it with our Relay Holder Kit, keeping your setup organized and secure.
WARNING
All GMC Racing items that result in power increases exceeding those permitted by the road traffic regulations of the user's country are intended exclusively for competitive use. GMC Racing declines all responsibility for any use of the product that is contrary to national regulations.
