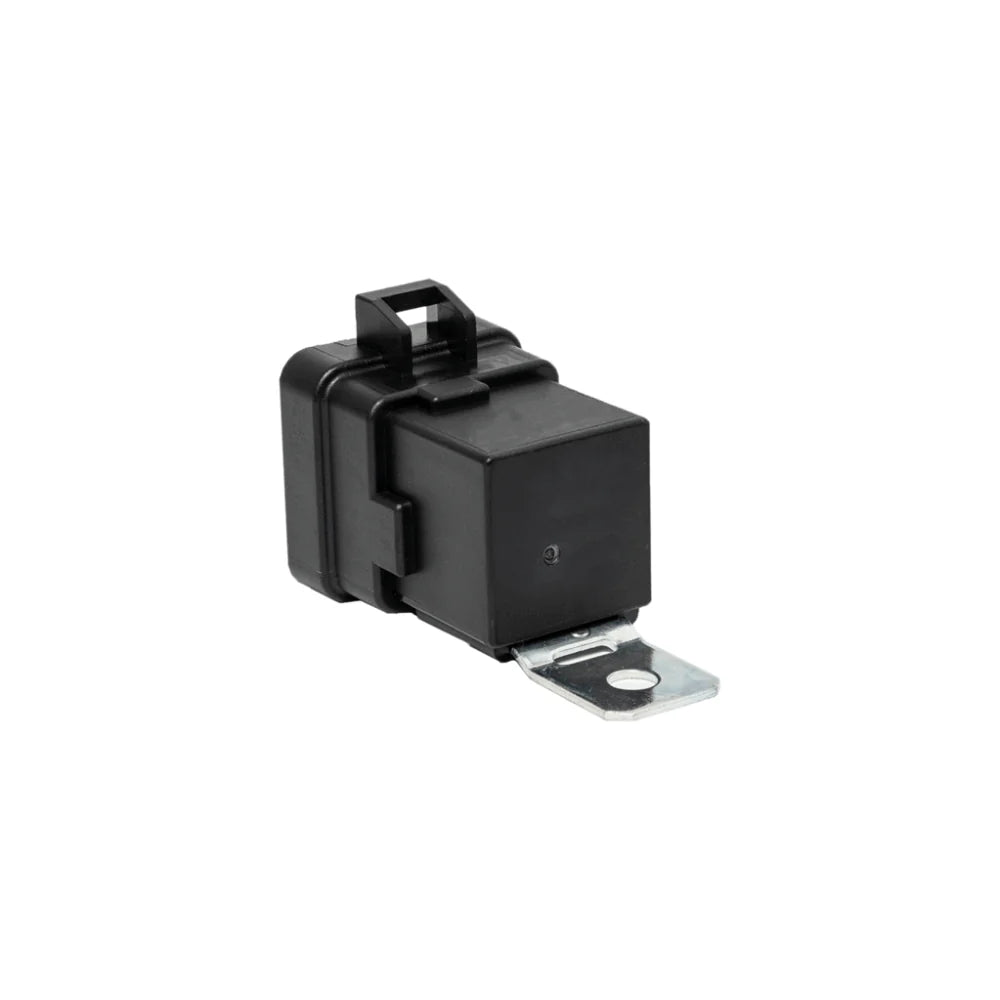

High-quality sealed relay, typically used for ECUs, injectors, and coils when building your own wiring harness. One relay is required for each wired component.

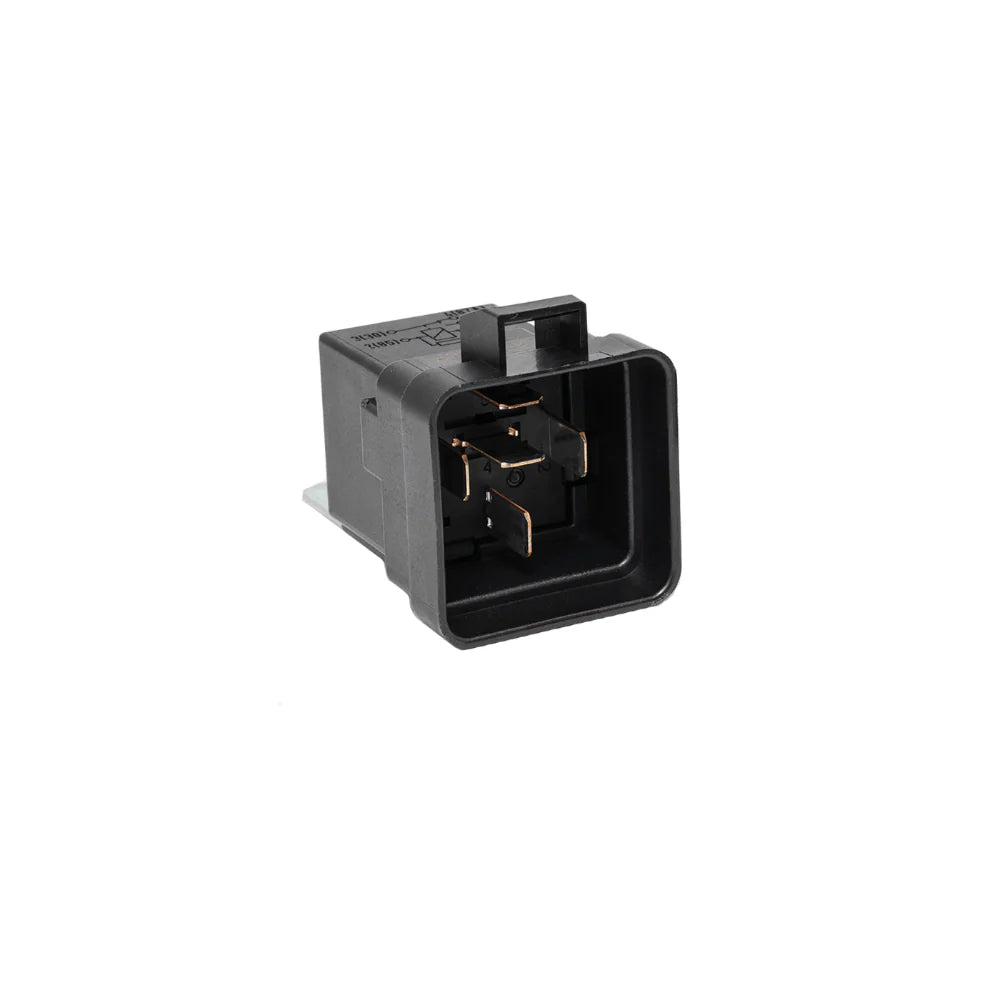

ELECTRICAL CONNECTIONS
85 – Activation signal (FT auxiliary output, activated when switched to ground)
86 – 12V Switched power
30 – 12V Battery (use a fuse)
87 – Output for load (Normally Open contact - 40A)
87A – Normally Closed contact
WARNING
All GMC Racing items that result in power increases exceeding those permitted by the road traffic regulations of the user's country are intended exclusively for competitive use. GMC Racing declines all liability for any use of the product that is contrary to national regulations.
