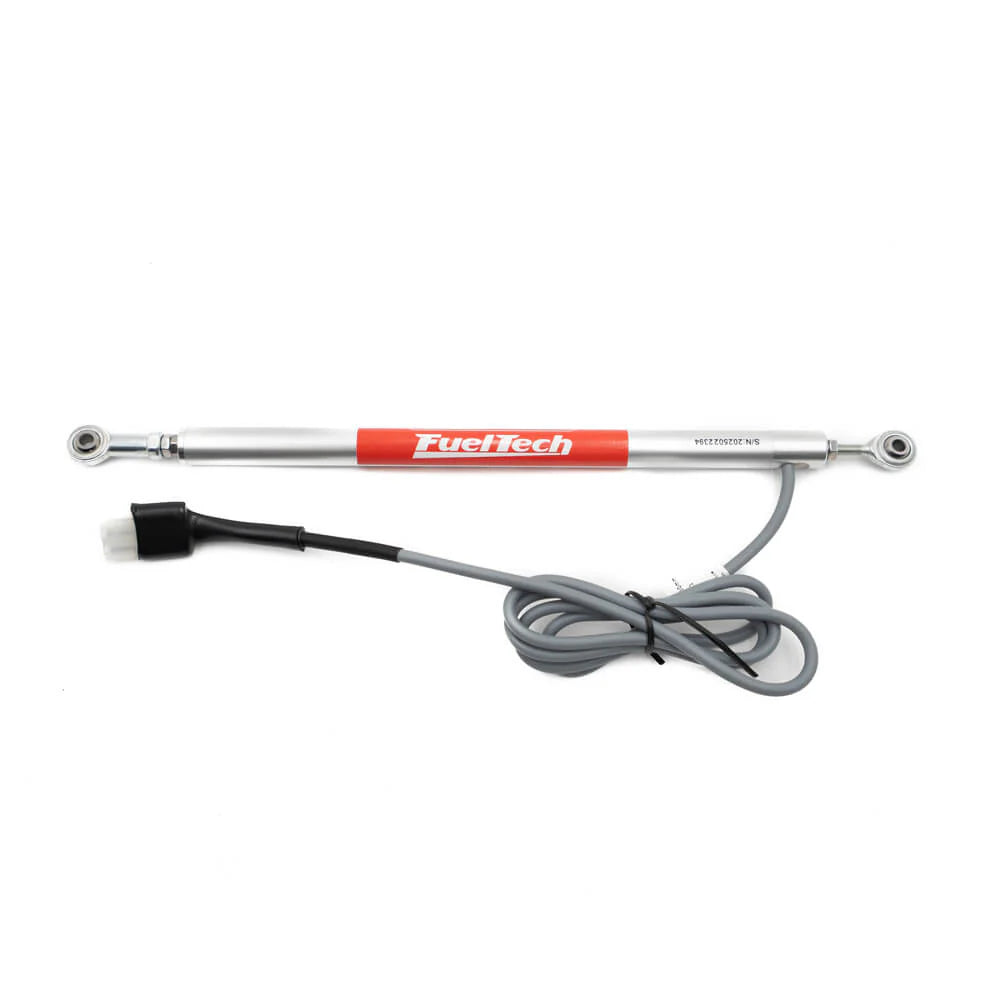

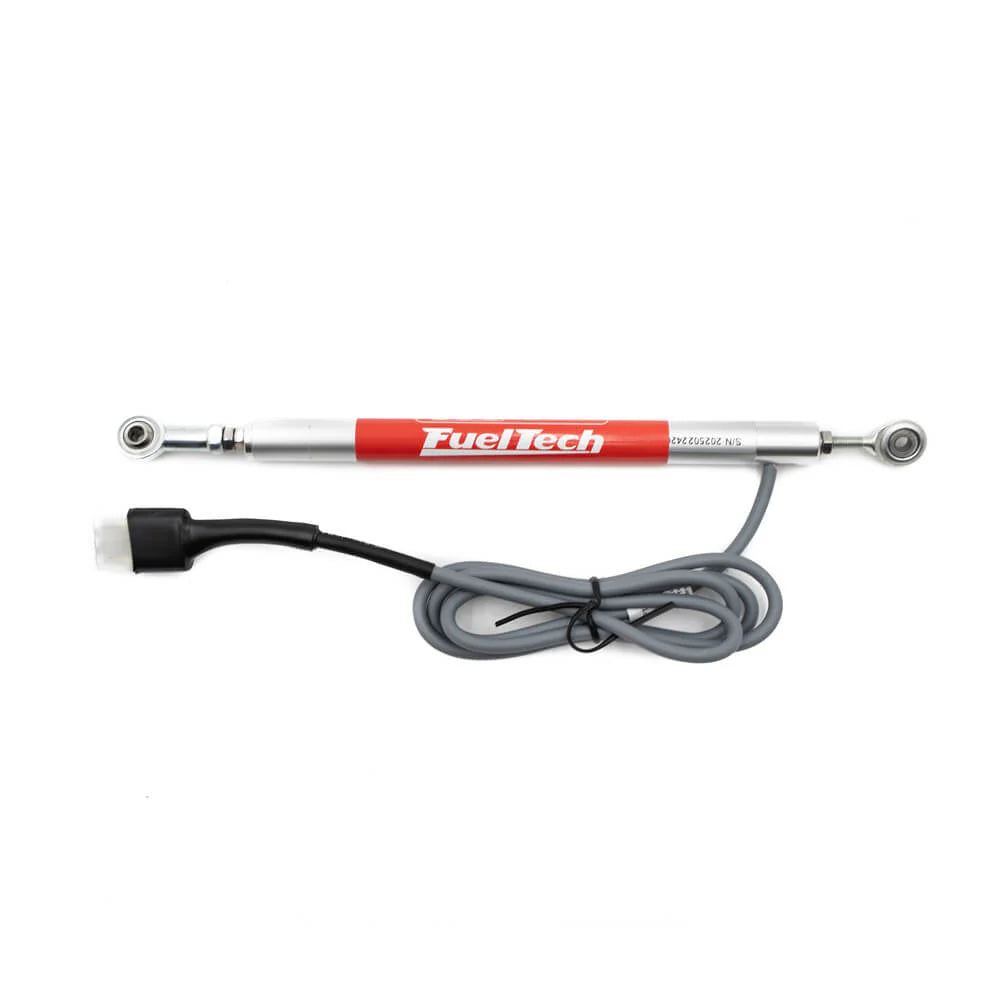

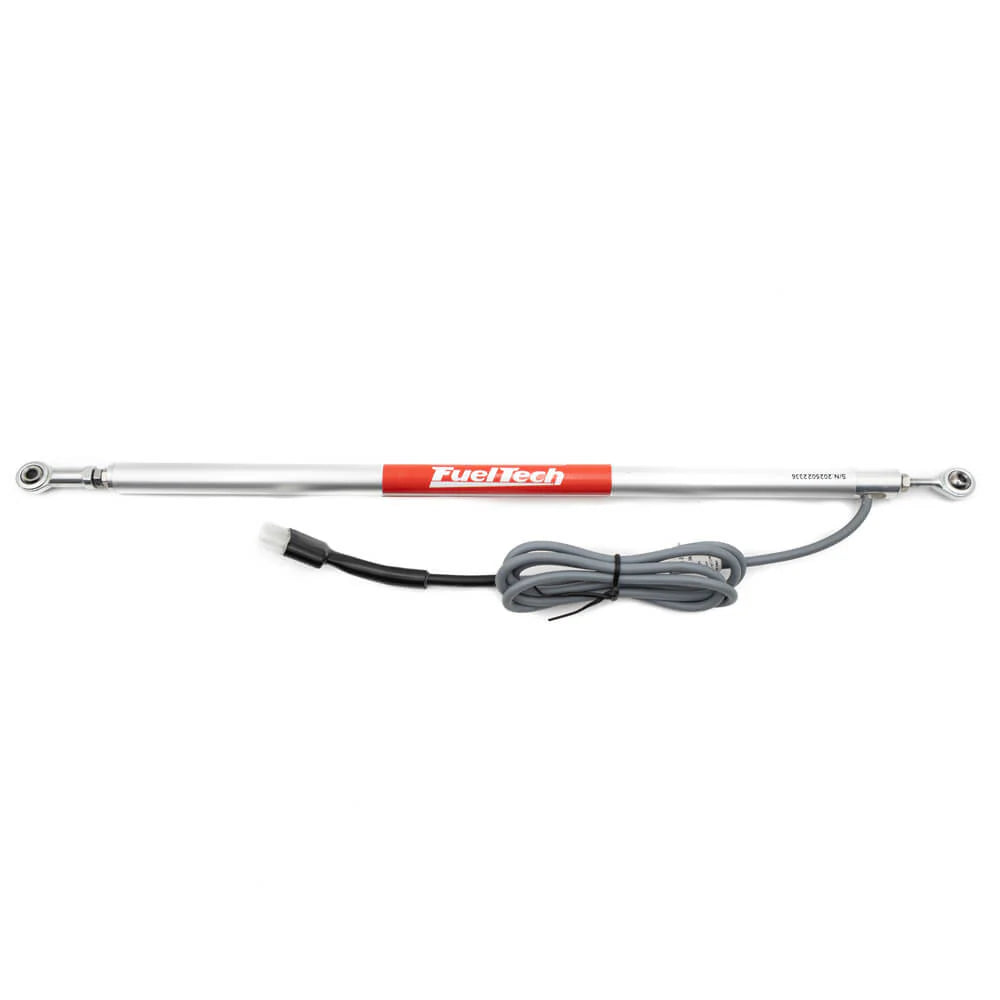

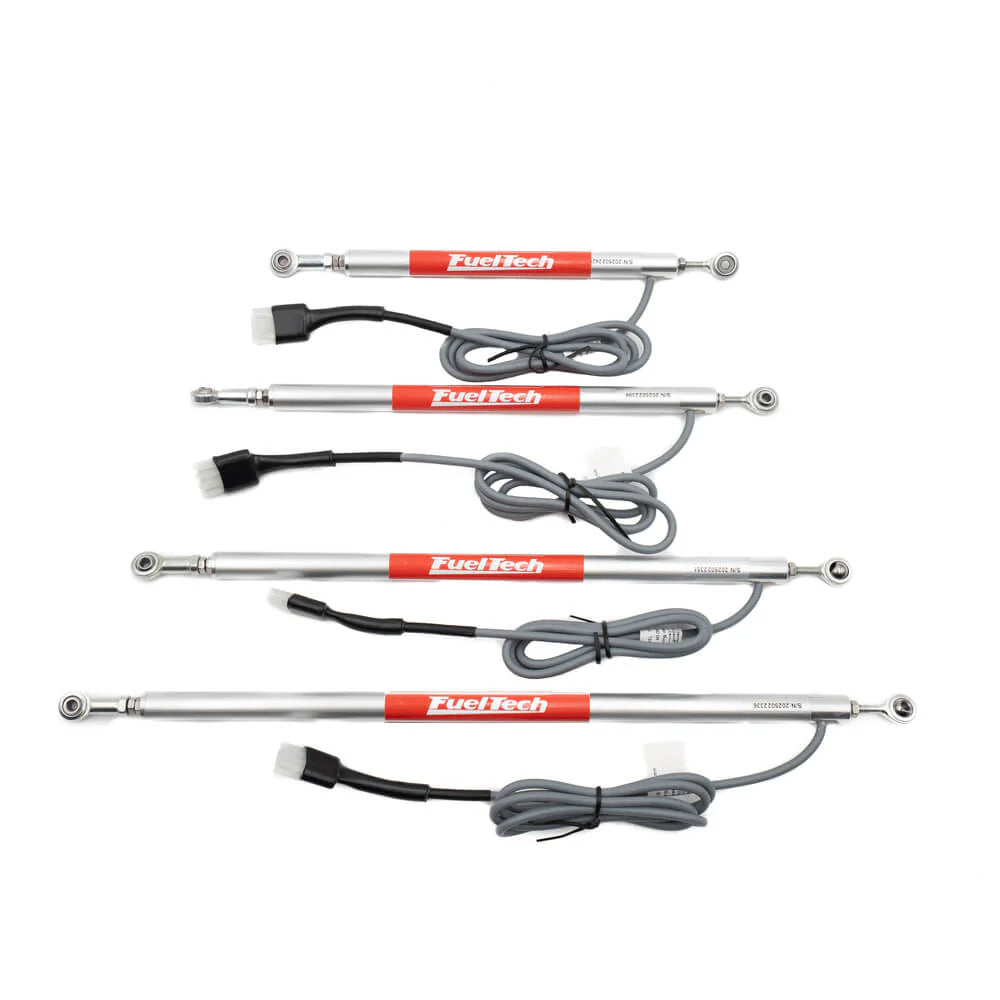

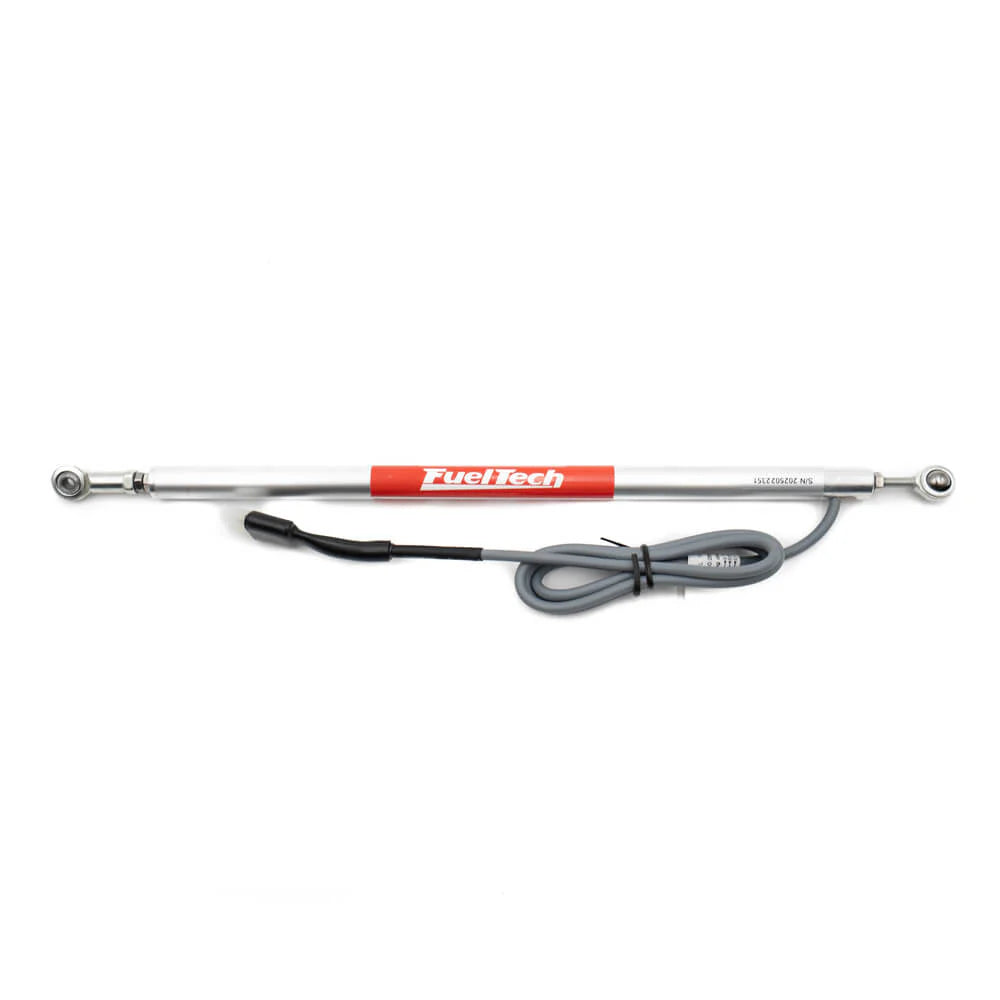

TRAVEL SENSOR

TRAVEL SENSOR

SKU:5005100769 / 5011100155

Regular price $174.00 USD
Regular price Sale price $174.00 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Contact us to see if the product is available

4" Travel sensor

  • Total travel: 4"
  • Collapsed length: 9"
  • Extended length: 13"
  • Mounting: 4 mm Heim joints
  • Cable length: 38.5"

6" Travel sensor

  • Total travel: 6"
  • Collapsed length: 11"
  • Extended length: 17"
  • Mounting: 4 mm Heim joints
  • Cable length: 38.5"

8" Travel sensor

  • Total travel: 8"
  • Collapsed length: 13"
  • Extended length: 21"
  • Mounting: 4 mm Heim joints
  • Cable length: 38.5"

10" Travel sensor

  • Total travel: 10"
  • Collapsed length: 15"
  • Extended length: 25"
  • Mounting: 4 mm Heim joints
  • Cable length: 38.5"

Voltage/Output:

  • Supply voltage: 5V
  • Signal output: 0V - 5V

Connector pinout:

  • Pin 1 - Ground (Brown)
  • Pin 2 - Signal (Yellow)
  • Pin 3 - 5V (Blue)

WARNING

All GMC Racing items that result in power increases exceeding those permitted by the user's local road regulations are intended exclusively for competitive use.
GMC Racing declines any responsibility for any use of the product that is contrary to national regulations.
