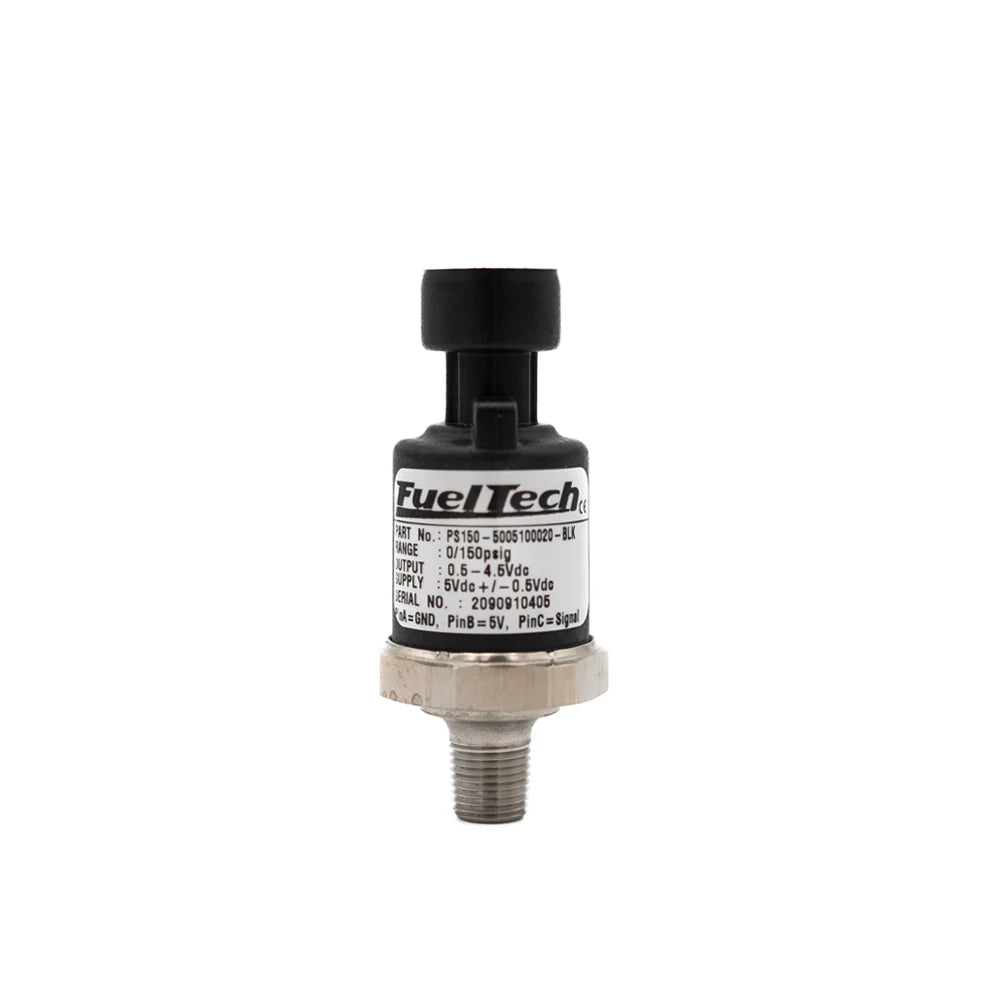

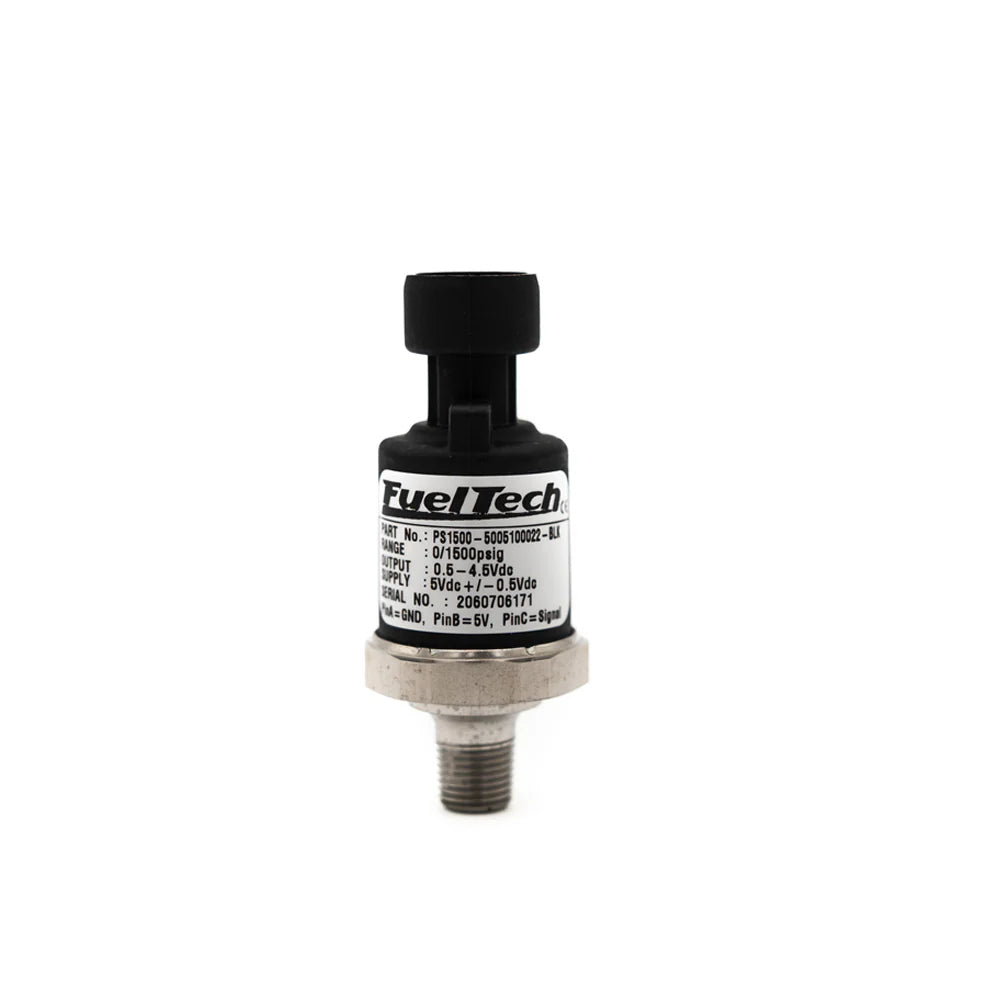

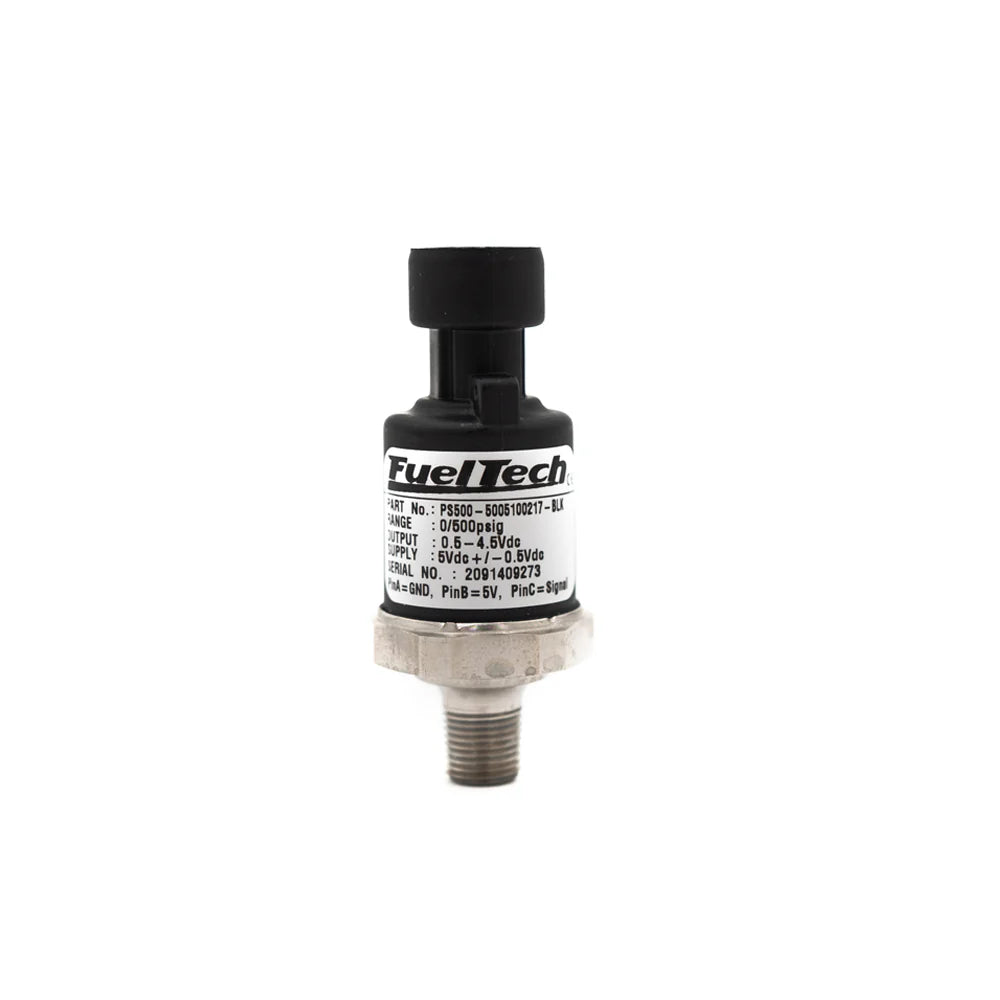

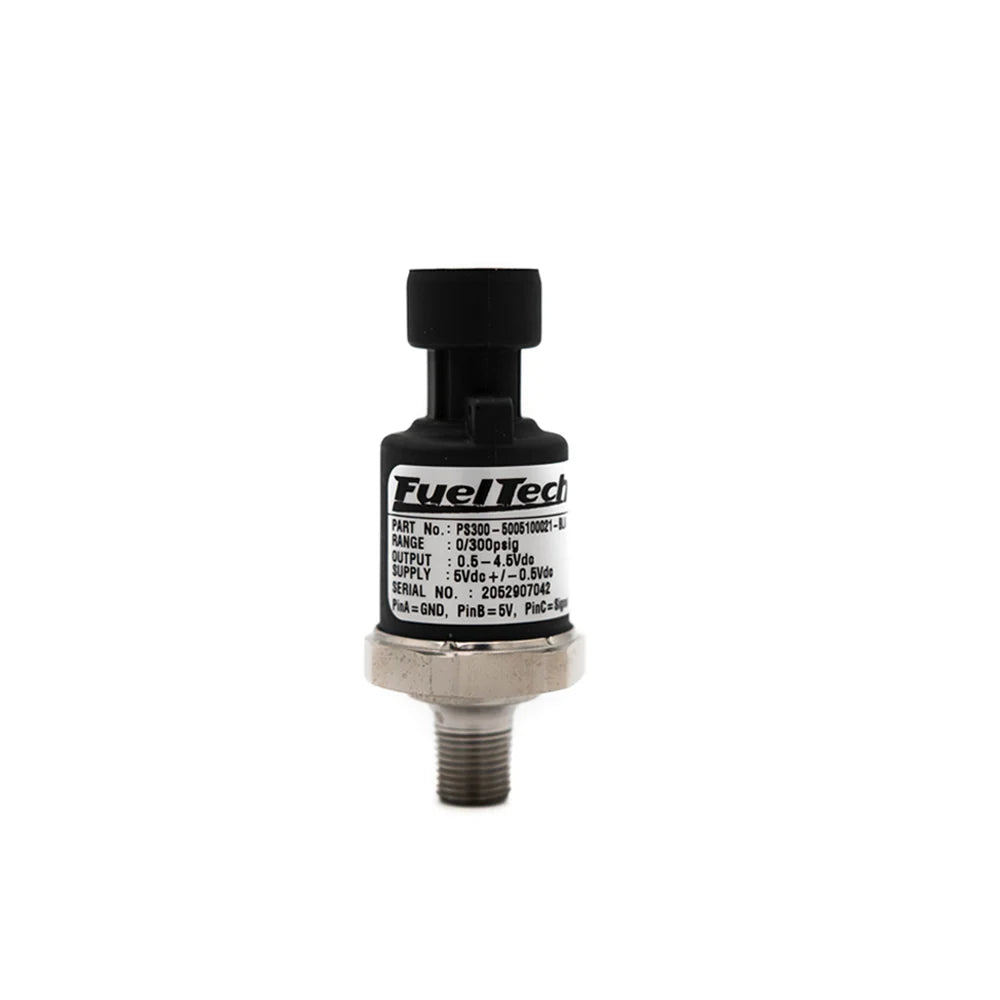

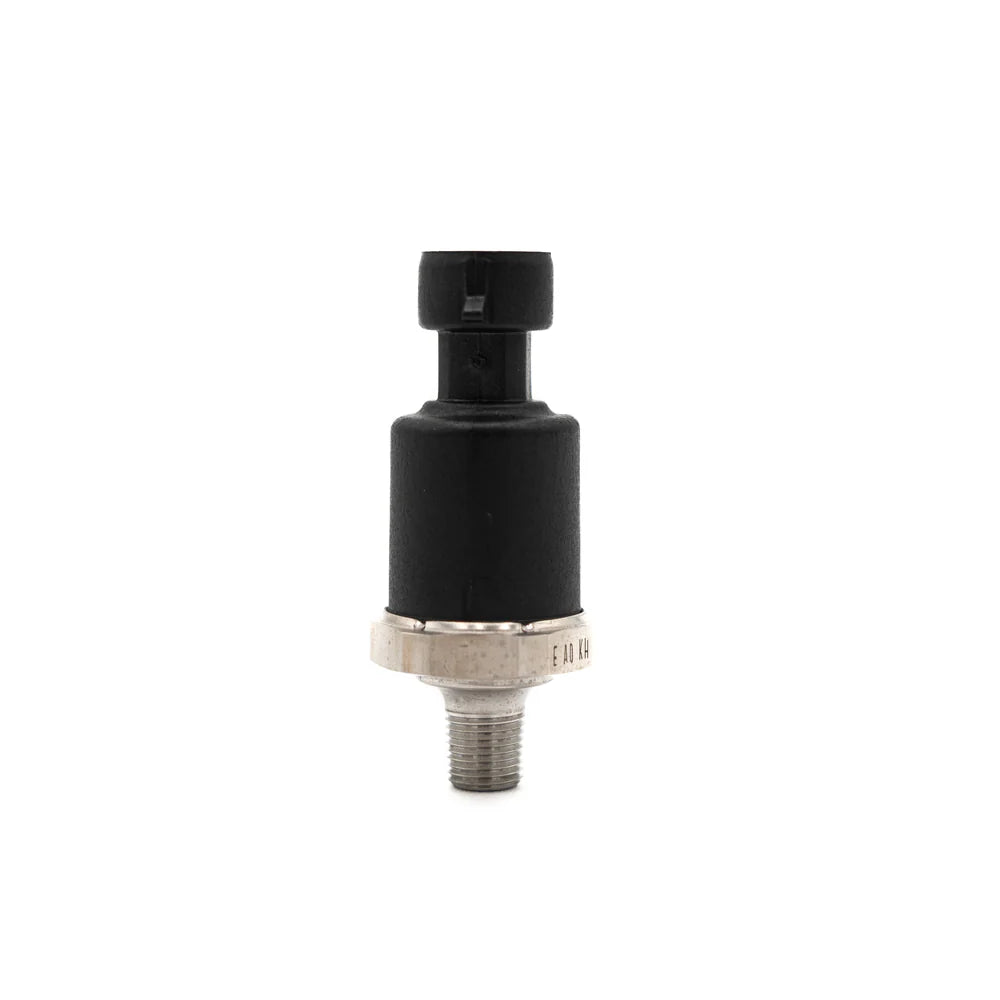

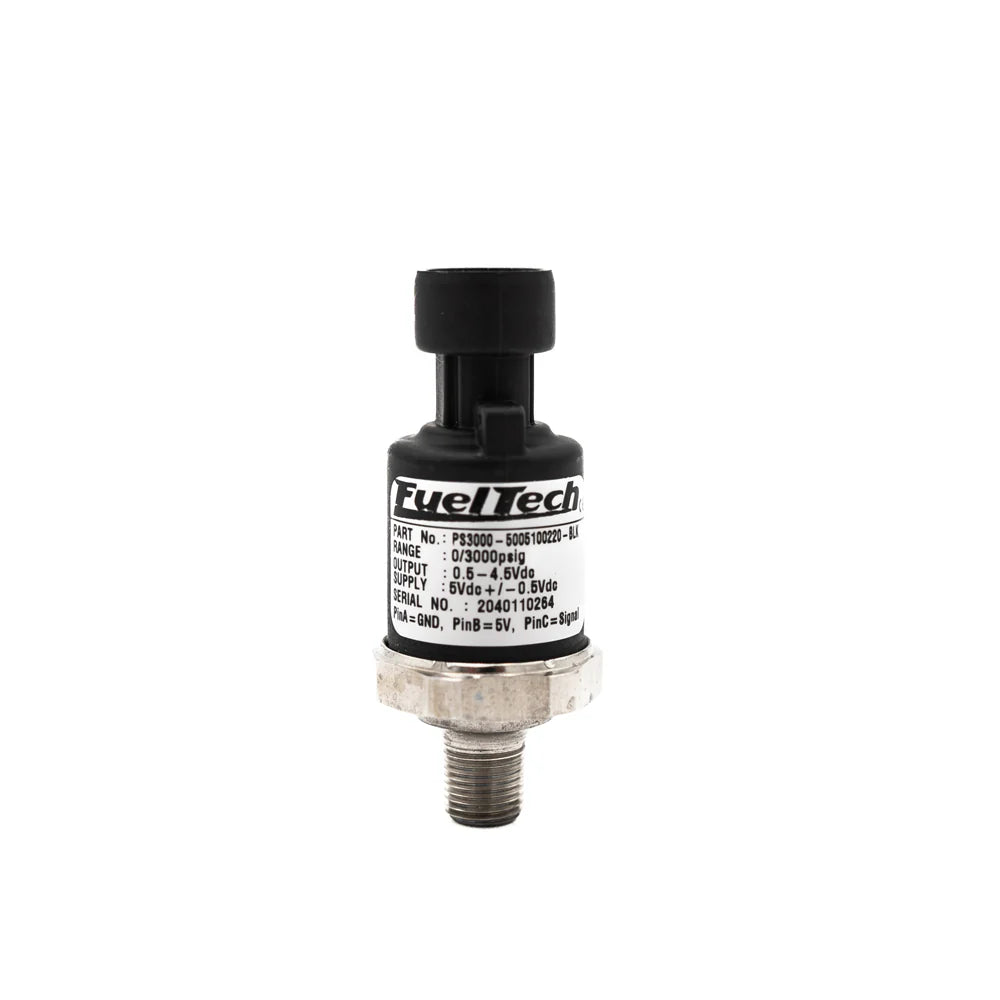

COMPOSITE PRESSURE SENSOR
COMPOSITE PRESSURE SENSOR
SKU:5005100020-BLK
Couldn't load pickup availability
Share
Contact us to see if the product is available
FuelTech pressure sensors provide accurate and reliable pressure readings in high-performance automotive applications, such as racing.
Designed for precision and durability, these sensors provide essential real-time data to optimize engine performance and ensure safe operation. Whether used to monitor fuel, oil, or boost pressure, these sensors offer invaluable information to both enthusiasts and professionals, making them an indispensable component in any performance-oriented setup.
TECHNICAL DESCRIPTION
Output: 0.5-4.5 V
Power supply: 5 V

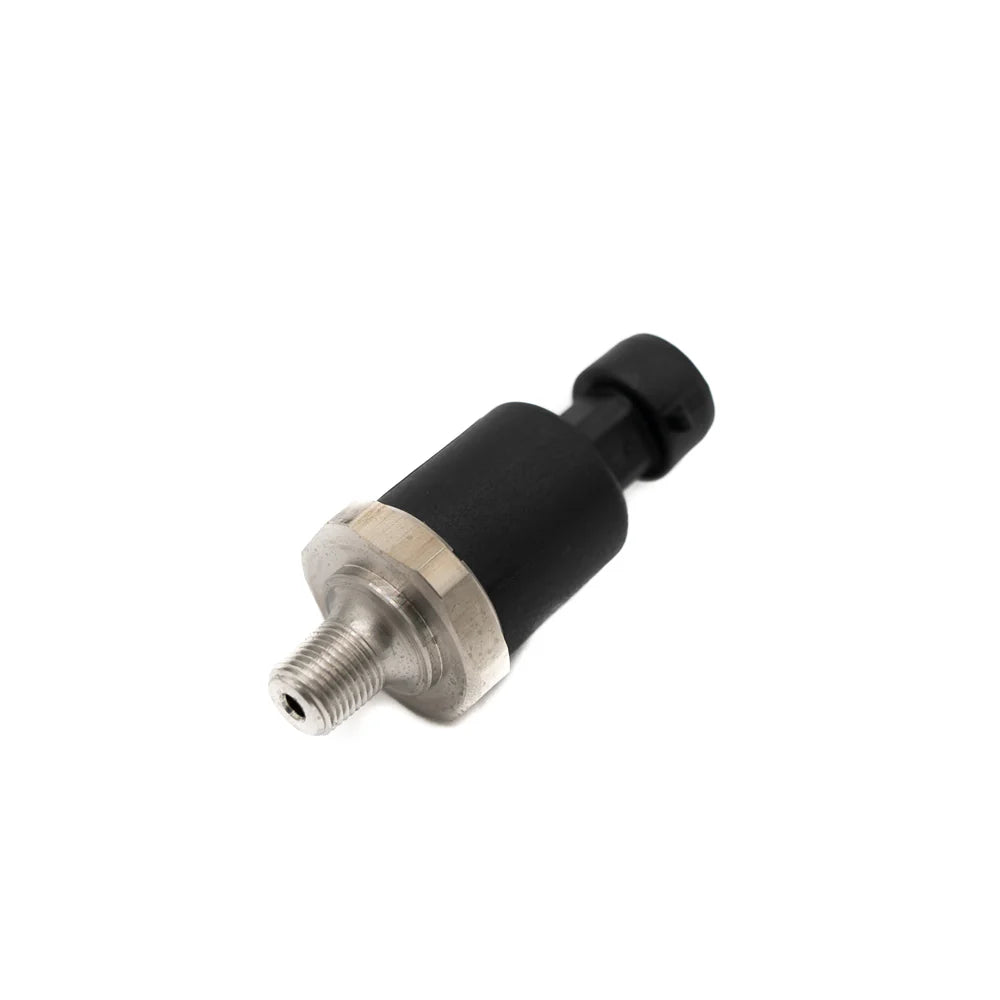

Thread size: 1/8" NPT

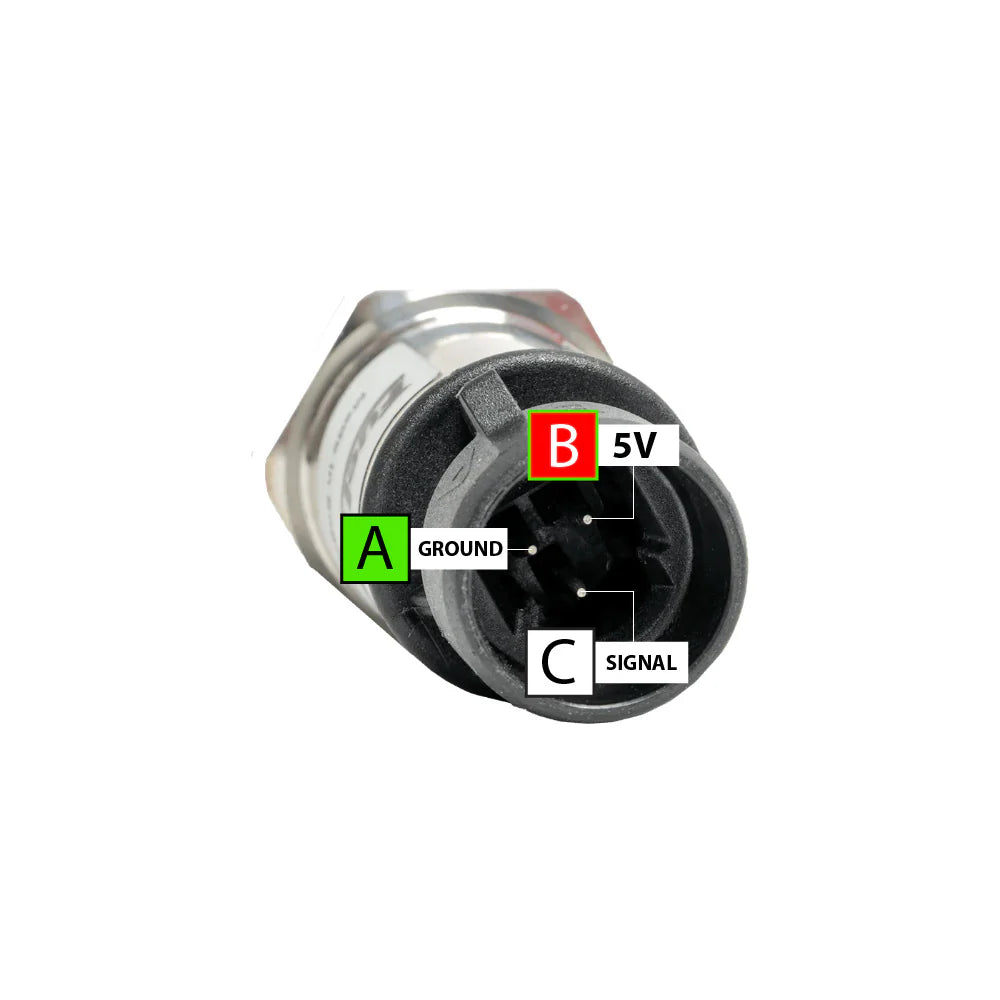

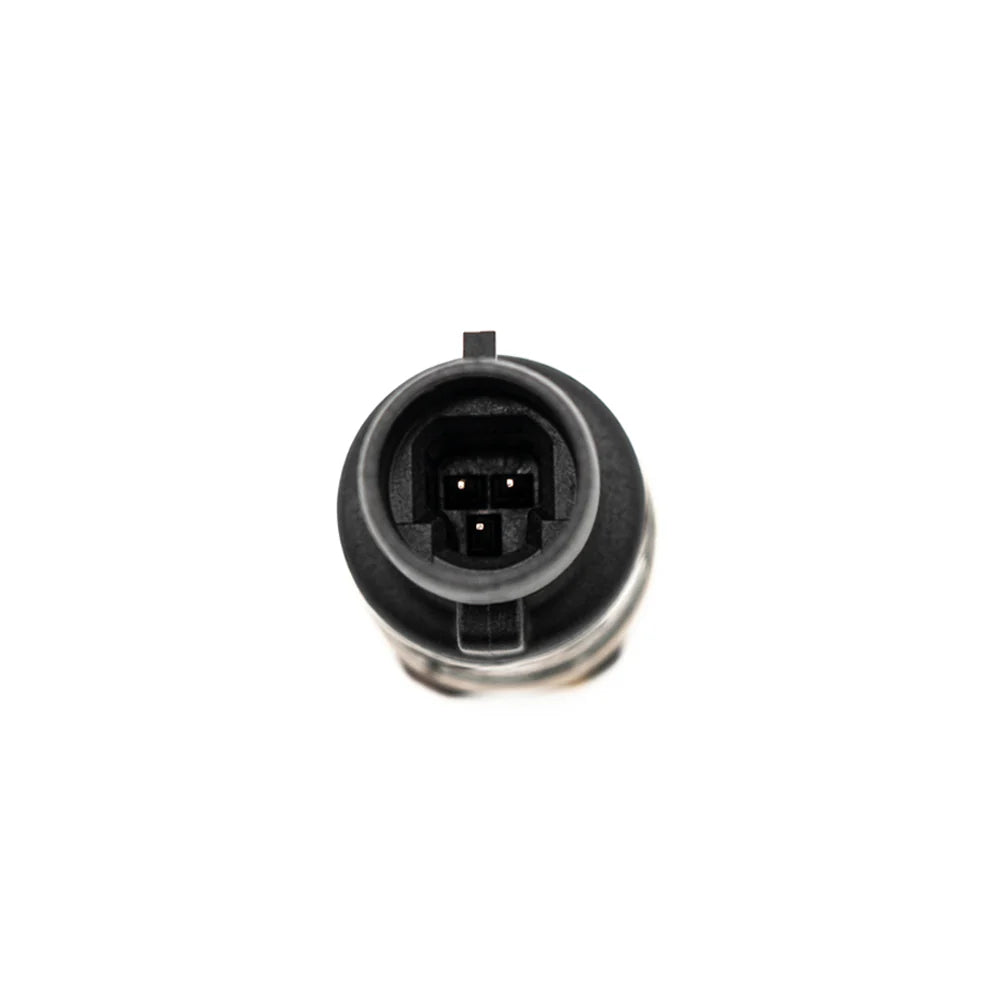

Connector pinout:
A - Ground
B - 5 V
C - Signal
PRODUCT SPECIFICATIONS
- Performance Long Term Drift: 0.2% FS/year (non-cumulative)
- Accuracy: 0.25% FS
- Thermal error: 0.83% FS/100°F (1.5% FS/100°C)
- Compensated temperature: -40°F to +257°F (-40°C to +125°C)
- Operating temperature: -40°F to +257°F (-40°C to +125°C)
- Zero tolerance: 0.5% of span
- Span tolerance: 0.5% of span
- Response time: 1 ms
- Fatigue life: 1 million cycles
- Wetted parts: 17-4 PH stainless steel
- Enclosure: IP67 (IP65 for electrical code G)
- Vibration: 40 G peak-to-peak sinusoidal, (random vibration 20 to 1000 Hz @ approximately 40 G peak per MIL-STD-810E)
- Shock: Withstands free fall per IEC 68-2-32 procedure 1
- EMC (Radiated immunity): 100 V/m
- Approvals: CE, compliant with European Pressure Equipment Directive, fully RoHS compliant, UL recognized files #E219842 & E174228
- Weight: 35 grams
WARNING
All GMC Racing items that result in power increases exceeding those allowed by the user's country's road code are intended exclusively for competitive use.
GMC Racing declines all responsibility for any use of the product that is contrary to national regulations.
