EXTERNAL MAP SENSOR, 10 BAR
EXTERNAL MAP SENSOR, 10 BAR
SKU:5005100190-BLK / 5005100023
Couldn't load pickup availability
Share
Contact us to see if the product is available
If you are exceeding the limit of your ECU's internal MAP sensor or wish to add an external one, the 10 bar external MAP sensor provides critical air pressure data within the intake system up to 135.3 psi. Intake manifold pressure data allows the ECU to maintain the optimal air-fuel ratio for combustion.
*All FuelTech PowerFT ECUs include a 7 bar internal MAP sensor.
PRODUCT SPECIFICATIONS
- Output: 0.5-4.5 V
- Power Supply: 5 V
- Range: -14.7 psi to +135.3 psi (0-150 psi absolute)
- Thread size: 1/8" NPT

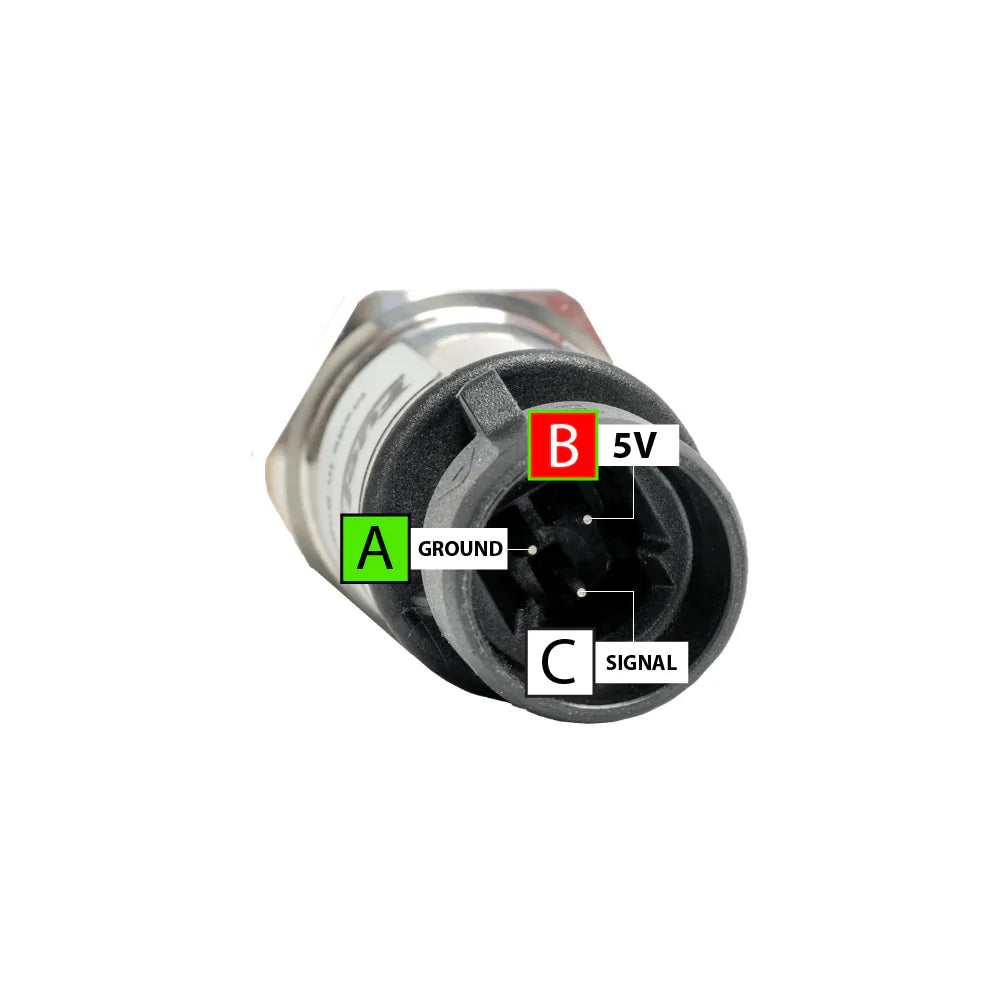

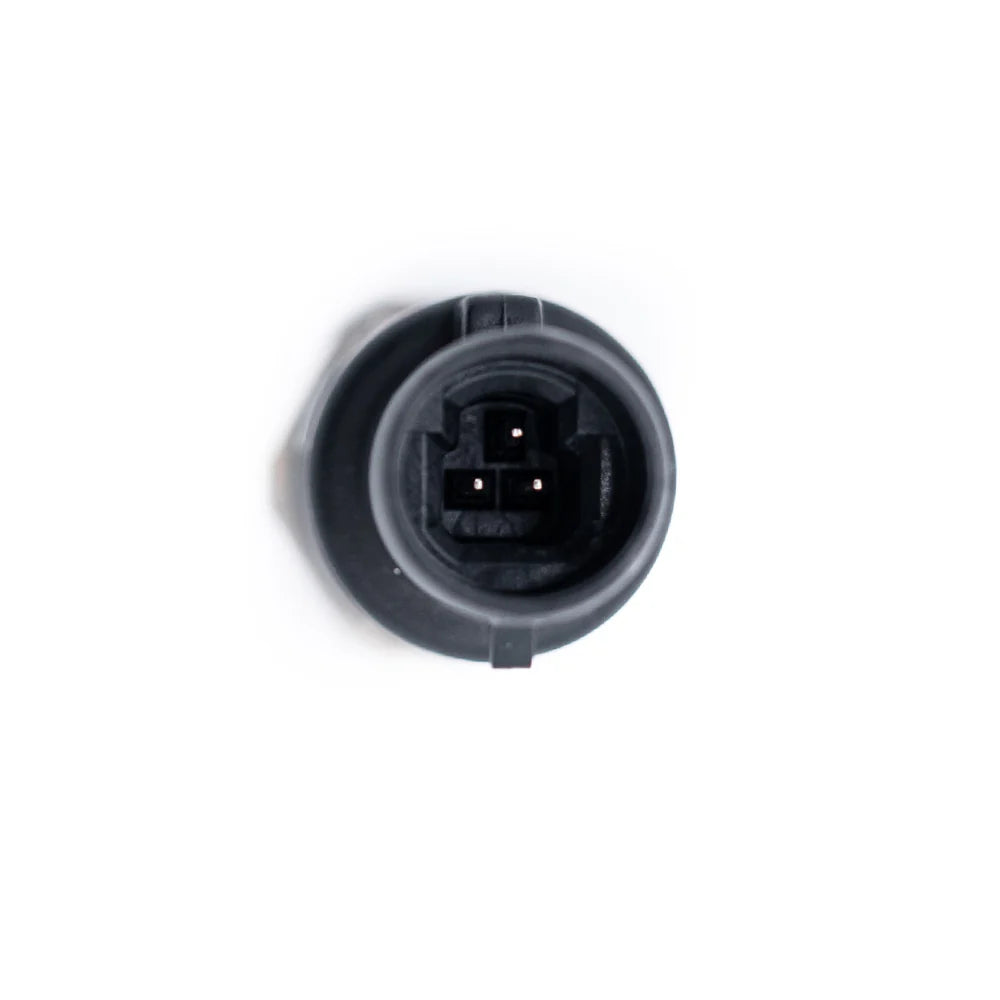

Connector Pinout:
- A - Ground
- B - 5 V
-
C - Signal
WARNING
All GMC Racing items that result in power increases exceeding those permitted by the user's country's traffic laws are intended exclusively for competitive use.
GMC Racing declines all responsibility for any use of the product that is contrary to national regulations.
