SPARKPRO-1

SPARKPRO-1

SKU:3010003326

Regular price €193,98 EUR
Regular price Sale price €193,98 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

Contact us to see if the product is available

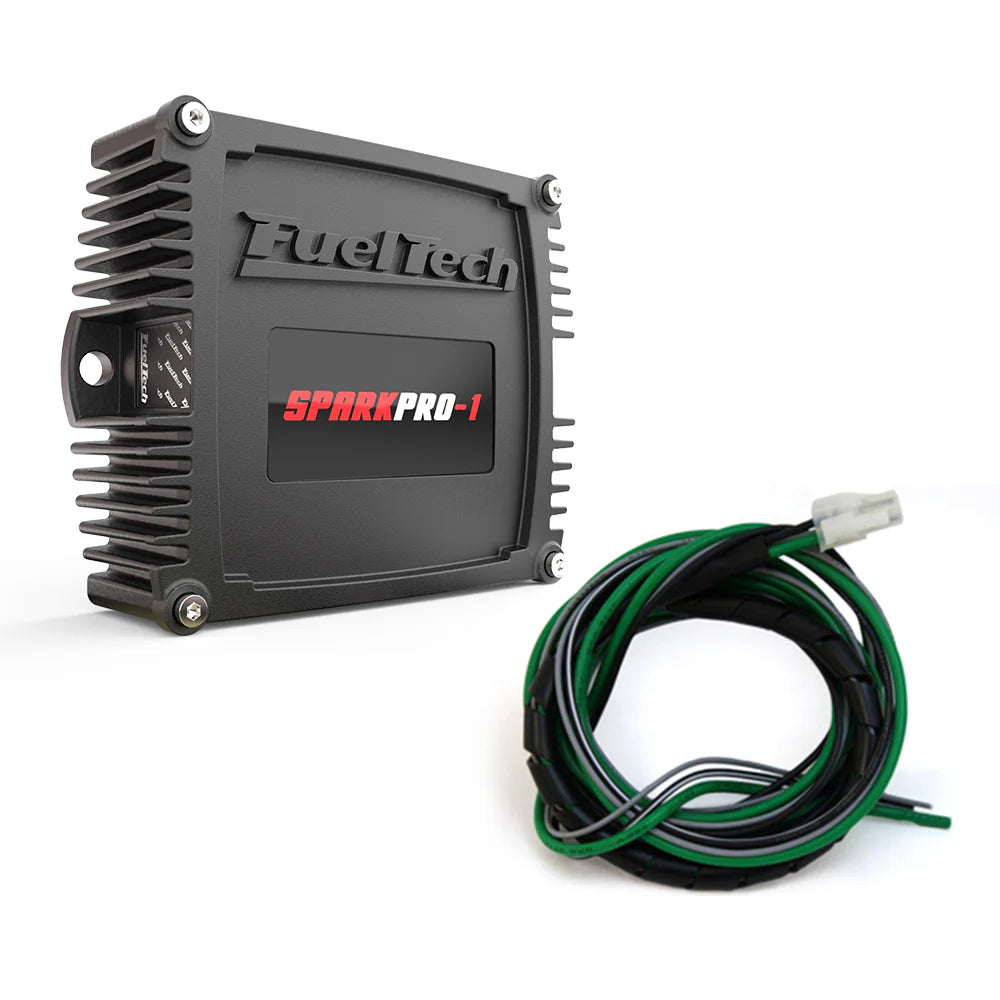

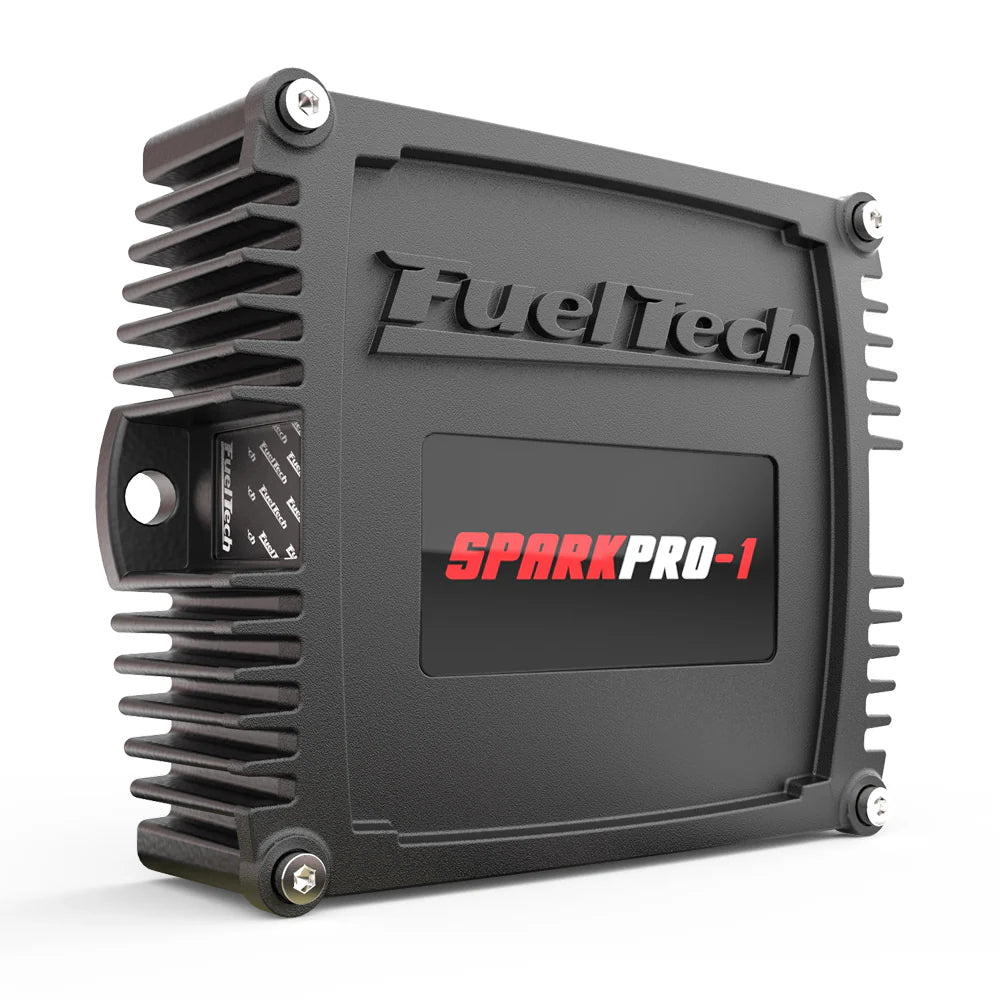

FuelTech's SparkPRO-1 is a high-energy inductive ignition module designed to be used with ignition coils without an integrated power module ("dumb" coils). The SparkPRO-1 features 1 ignition output; the output can be connected to only one coil at a time. The system is available in versions with 1 to 8 ignition outputs and generates high voltage of up to 430V in the coil primary. SparkPRO modules are compatible with any programmable ECU equipped with dwell control, but cannot be used with stock (original) ECUs.

PRODUCT FEATURES

  • Recommended exclusively for 4-cylinder applications using a distributor with a FuelTech ECU.
  • High-energy inductive ignition.
  • SparkPRO-1: 1 ignition output.
  • Available in versions with 1 to 8 outputs.
  • High voltage in the coil primary: up to 430V.

TECHNICAL DESCRIPTION

  • For use exclusively with "dumb" coils (without power module/igniter).
  • Each SparkPRO channel can be connected to only one coil at a time.
  • Compatible with any programmable ECU equipped with dwell control.
  • Cannot be used with stock ECUs.
  • Dimensions: 115 mm x 90 mm x 33 mm.

BOX CONTENTS

  • 1 SparkPRO-1.
  • 1 Installation and operation guide.
  • 1 FuelTech "Black Carbon Fiber" sticker.


WARNING

All GMC Racing items that result in power increases beyond those permitted by the user's country's highway code are intended exclusively for competitive use.
GMC Racing declines all responsibility for any use of the product contrary to national regulations.
