SPARKPRO-3

SPARKPRO-3

SKU:3010003328

Regular price €267,18 EUR
Regular price Sale price €267,18 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

Contact us to see if the product is available

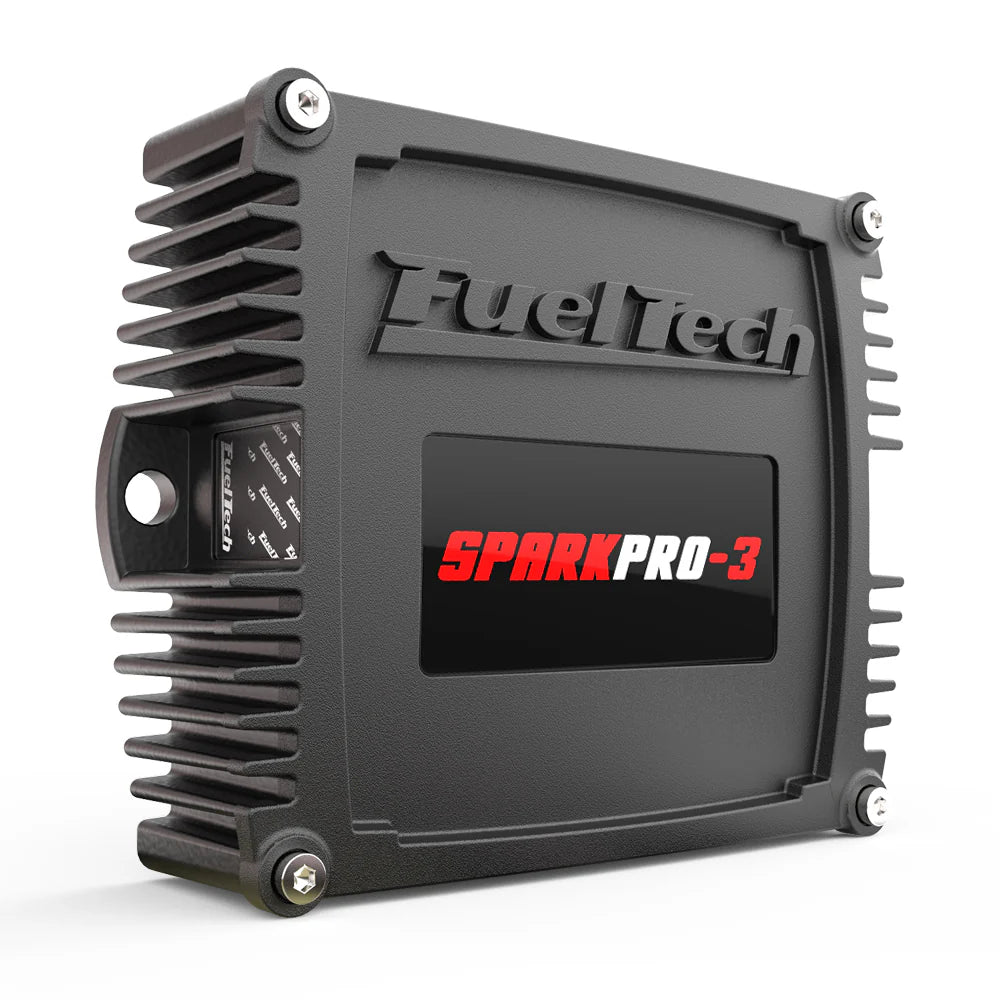

The FuelTech SparkPRO-3 is a high-energy inductive ignition module designed to be used with ignition coils without an integrated power module ("dumb" coils). The SparkPRO-3 features 3 ignition outputs; each output can be connected to only one coil at a time. The system is available in versions from 1 to 8 ignition outputs and generates high voltage of up to 430V in the coil primary. SparkPRO modules are compatible with any programmable ECU equipped with dwell control, but cannot be used with factory (stock) ECUs.

PRODUCT FEATURES

  • High-energy inductive ignition.
  • SparkPRO-3: 3 ignition outputs.
  • Available in versions from 1 to 8 outputs.
  • High voltage in the coil primary: up to 430V.

TECHNICAL DESCRIPTION

  • For use exclusively with "dumb" coils (without power module/igniter).
  • Each SparkPRO channel can be connected to only one coil at a time.
  • Compatible with any programmable ECU equipped with dwell control.
  • Cannot be used with factory ECUs.
  • Dimensions: 115 mm x 90 mm x 33 mm.

BOX CONTENTS

  • 1 SparkPRO-3.
  • 1 Installation and operation guide.
  • 1 FuelTech "Black Carbon Fiber" sticker.

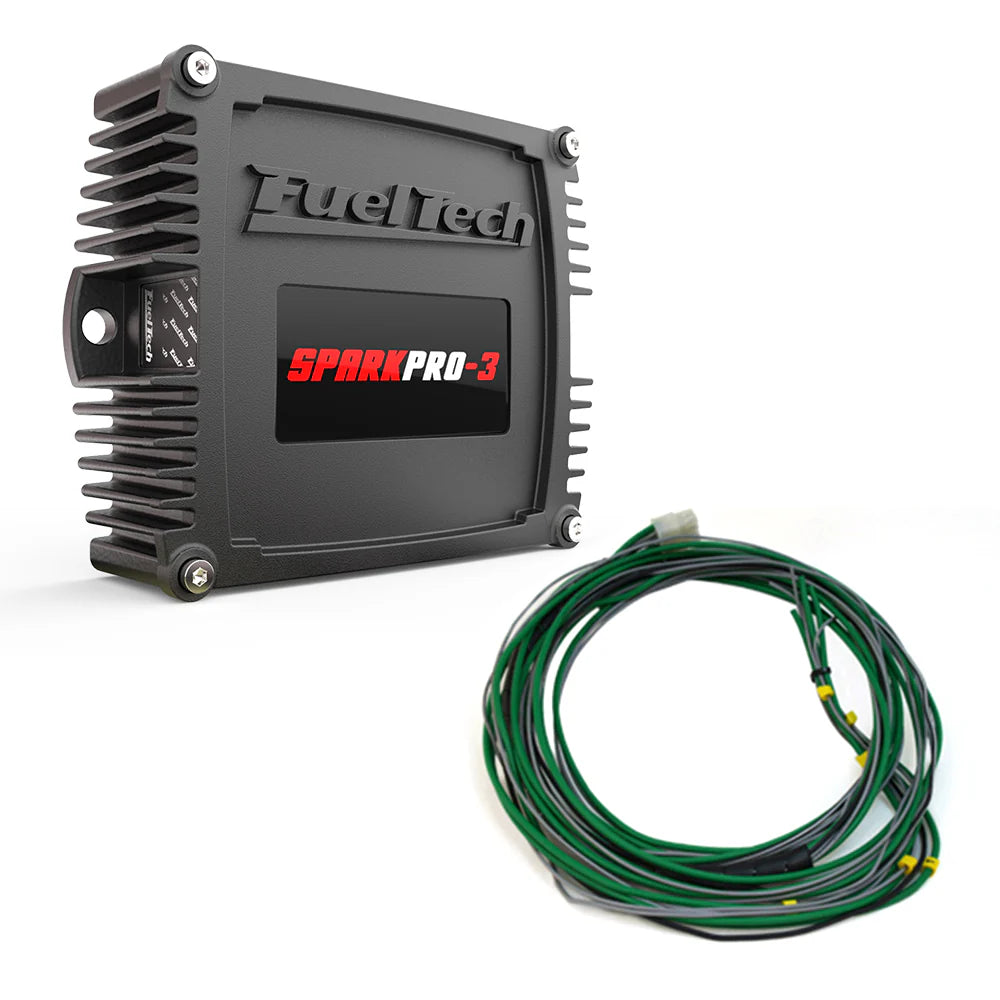

  • The SparkPRO-3 wiring harness is sold separately.

WARNING

All GMC Racing items that result in power increases exceeding those permitted by the road traffic laws of the user's country are intended exclusively for competitive use.
GMC Racing declines all responsibility for any use of the product that is contrary to national regulations.
