SPARKPRO-6

SPARKPRO-6

SKU:3010003331

Regular price €437,98 EUR
Regular price Sale price €437,98 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

Contact us to see if the product is available

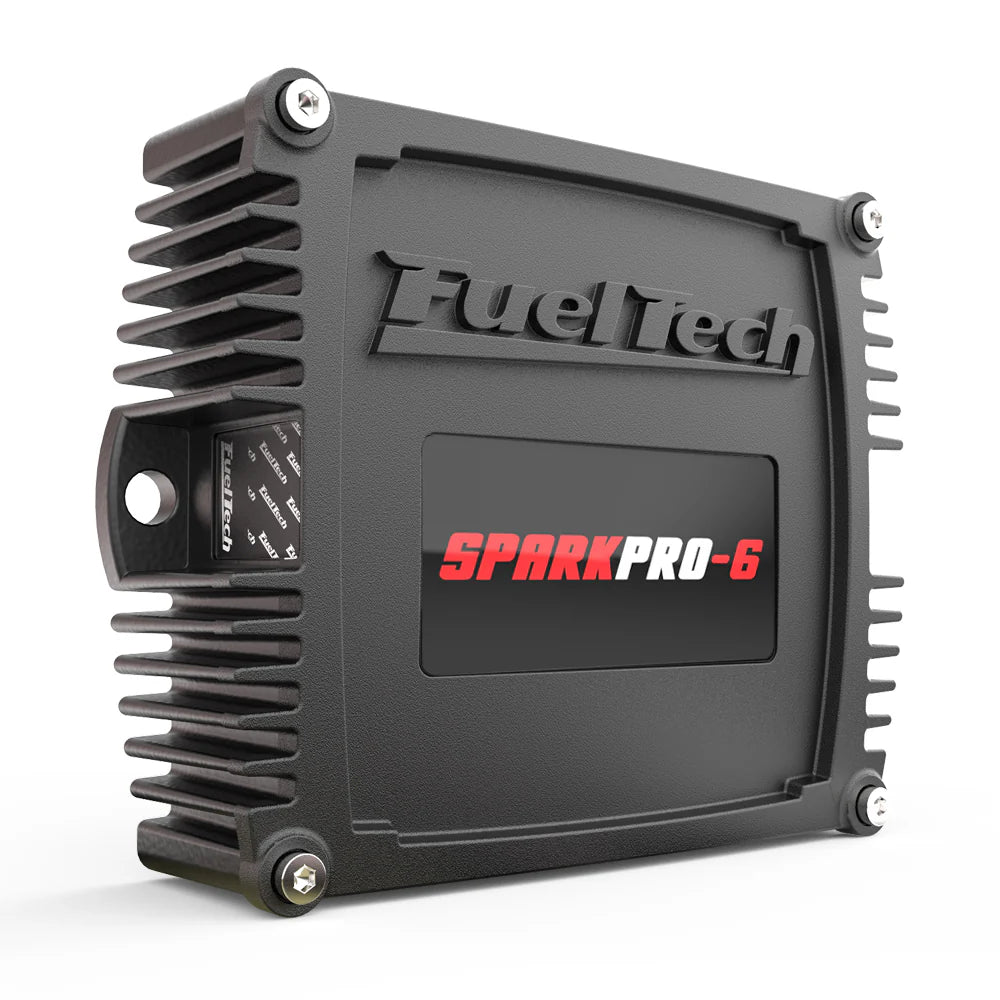

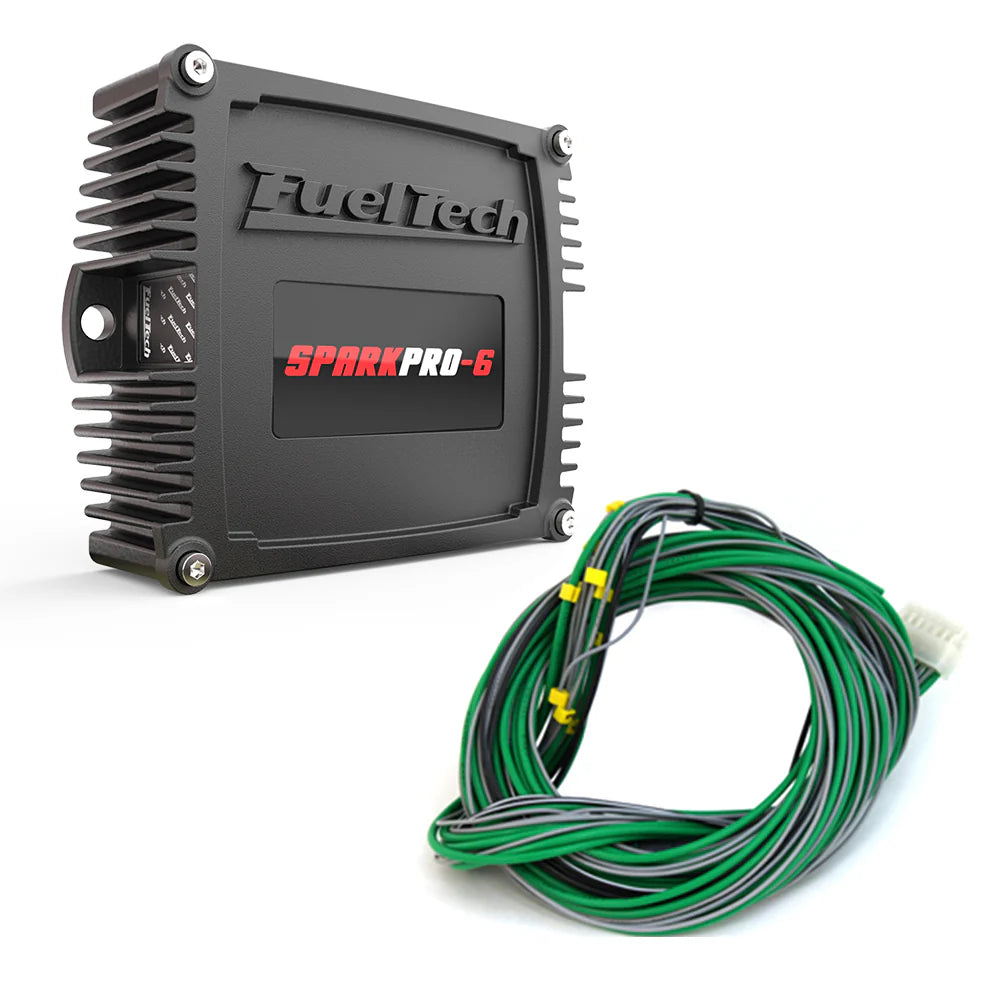

The SparkPRO-6 is a high-energy inductive ignition module for ignition coils without an integrated power module ("dumb" coils).
The SparkPRO-6 features 6 ignition outputs; each output can be connected to only one coil at a time.
The system is available in versions from 1 to 8 ignition outputs and generates high voltage of up to 430V in the coil primary.

PRODUCT FEATURES

  • High-energy inductive ignition.
  • SparkPRO-6: 6 ignition outputs.
  • Available in versions with 1 to 8 outputs.
  • High voltage in the coil primary: up to 430V.

TECHNICAL DESCRIPTION

  • For use exclusively with "dumb" coils (without power module/igniter).
  • Each SparkPRO channel can be connected to only one coil at a time.
  • Compatible with any programmable ECU equipped with dwell control.
  • Cannot be used with stock (OEM) ECUs.
  • Dimensions: 115 mm x 90 mm x 33 mm.

BOX CONTENTS

  • 1 SparkPRO-6.
  • 1 Installation and operation guide.
  • 1 FuelTech "Black Carbon Fiber" sticker.

WARNING

All GMC Racing items that result in power increases exceeding those permitted by the user's country's traffic laws are intended exclusively for competitive use.
GMC Racing declines all liability for any use of the product contrary to national regulations.
