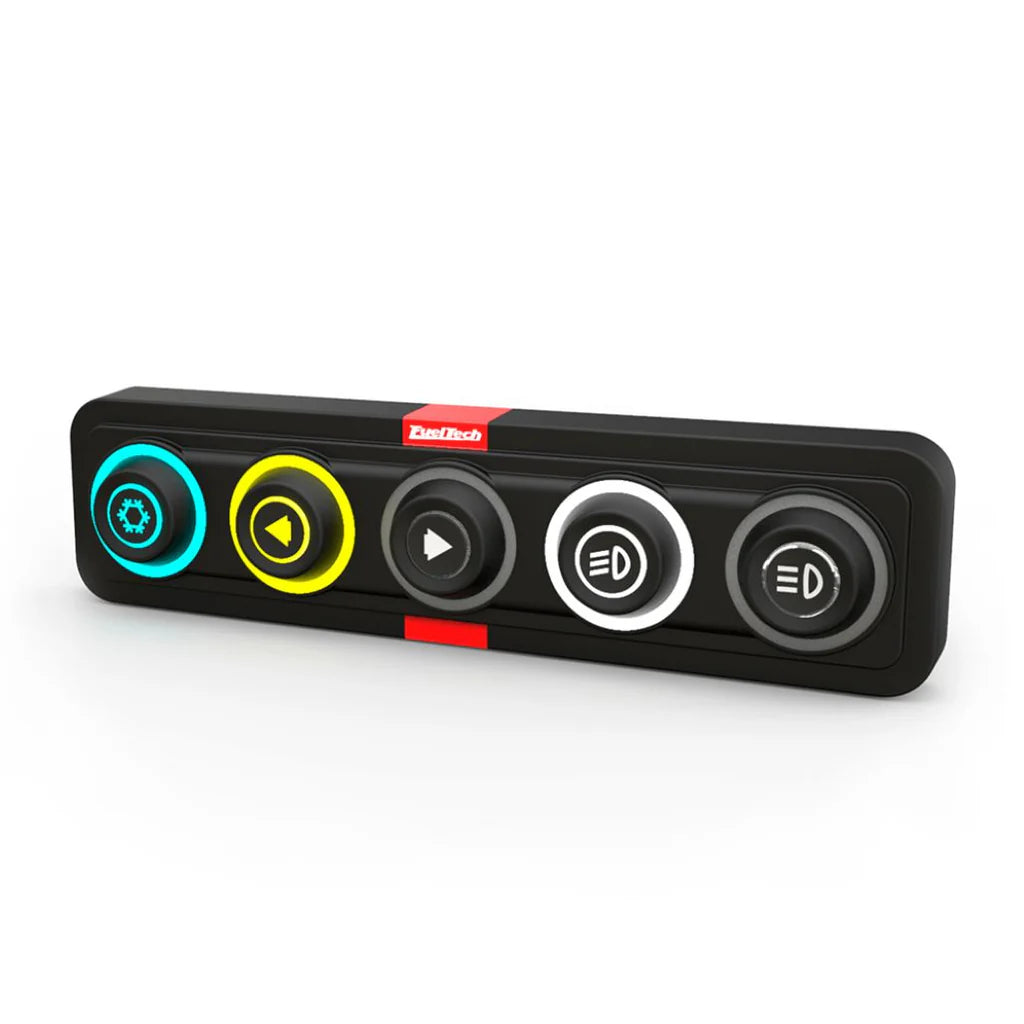

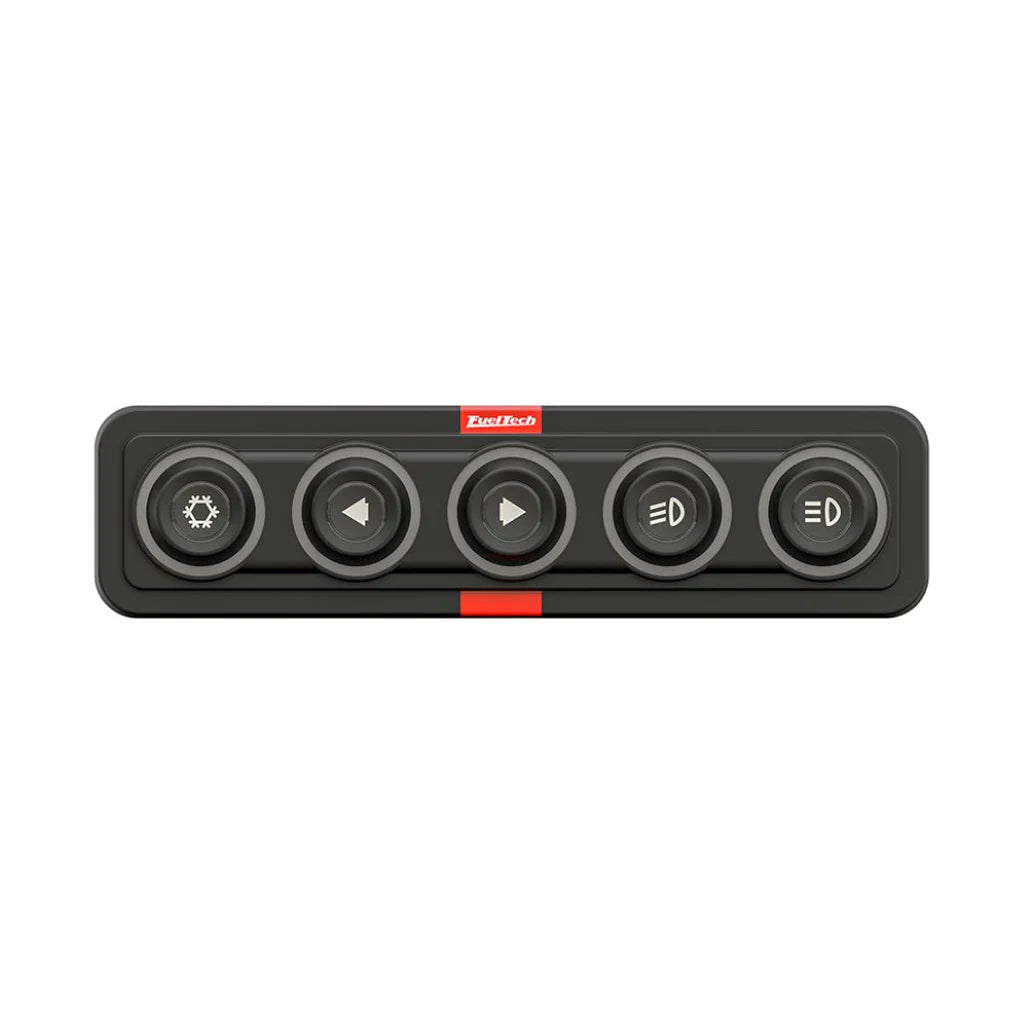

The 5-button racing SwitchPanel-5 Mini features 5 configurable buttons with customizable multicolor LED backlighting. The SwitchPanel Mini buttons are spaced to facilitate use even when wearing gloves, ensuring easy access on the track! Fully compatible with FT450, FT550, FT550LITE, FT600, FT700, and FT700PLUS via FTCAN 2.0, which means the SwitchPanel Mini does not occupy any ECU inputs. IP67 and NEMA6 rated against water and dust. Mounting hardware is included.
PRODUCT FEATURES
The SwitchPanel Mini is a compact racing control panel, compatible with the entire line of PowerFT ECUs (FT450, FT550, FT550LITE, FT600, FT700, and FT700PLUS).
The SwitchPanel-4 Mini, SwitchPanel-5 Mini, and SwitchPanel-8 Mini models blend style and functionality into a single device. The compact dimensions allow for installation almost anywhere, even in tight spaces, thanks to the included mounting hardware. Available with 4, 5, or 8 buttons, every SwitchPanel Mini comes with 55 pre-printed function decals and 10 neutral decals, allowing you to create custom labels. The LED backlighting for each button is predefined according to the function, making it easy to identify the correct key while driving.
Another advantage of the SwitchPanel Mini is its CAN Bus communication capability, which allows the panel to connect to FuelTech ECUs via FTCAN, saving available ECU inputs for other applications.
The SwitchPanel Mini is compatible with the PowerFT line and supports all ECU functions. The buttons can be configured to control the chosen function, such as 2-step, air conditioning, boost+, engine start, dashboard screen switching, and more. Switch-type functions are also supported, such as day/night mode, Burnout, Progressive Nitrous, internal datalogger, and more!
The SwitchPanel Mini has well-spaced buttons with clear tactile feedback and is perfect for use with gloves. It has an IP67 rating against water and dust (complete protection against dust and immersion up to 1 meter for up to 1 hour). The case features screws on the back, allowing for easy and discreet installation, and it can be integrated into the dashboard, making the design even more professional.
TECHNICAL DESCRIPTION
- Supply voltage: 12-24Vdc
- Standby current: <50mA
- Communication BUS: FTCAN 2.0
- CAN connector: 1 male Molex, 1 female Molex
- Switch service life: Millions of operations
- Material: Silicone rubber with hard polyurethane coating
- Mounting studs: #10-32 (3/16”x32)
- Protection rating: IP67/NEMA6
- Dimensions: 6.12 x 1.56 x 0.82 inches
BOX CONTENTS
- 1 SwitchPanel-5 Mini
- 1 Installation harness
- 1 User and installation guide
- 1 Mounting kit (2 #10-32 nuts and washers)
- 1 SwitchPanel label sheet
