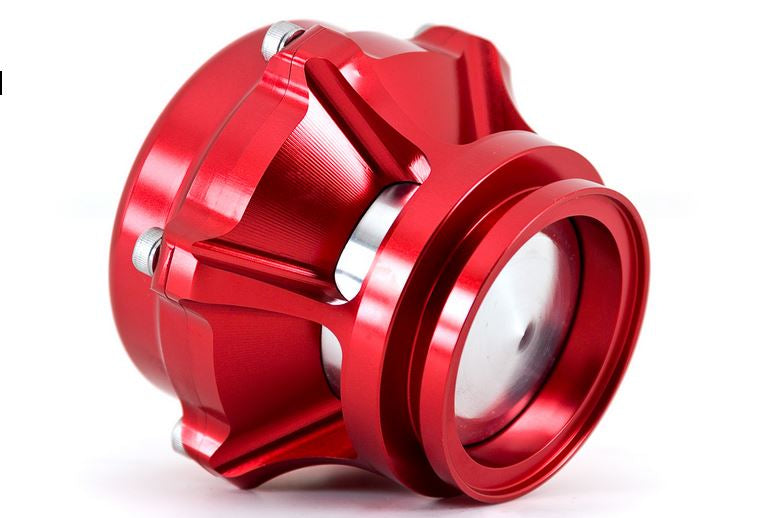

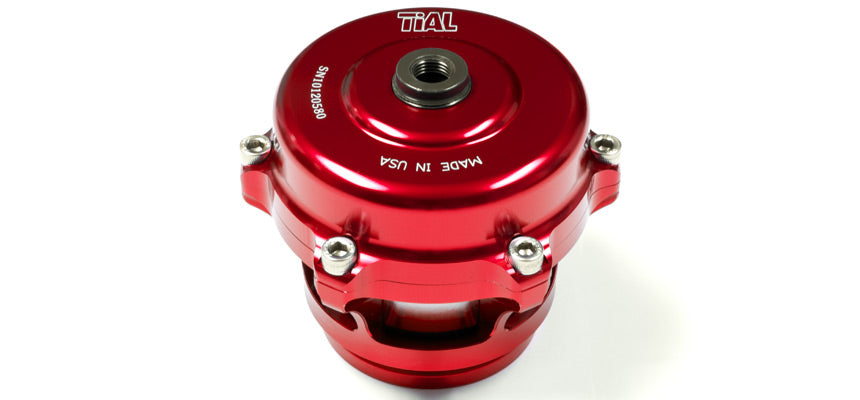

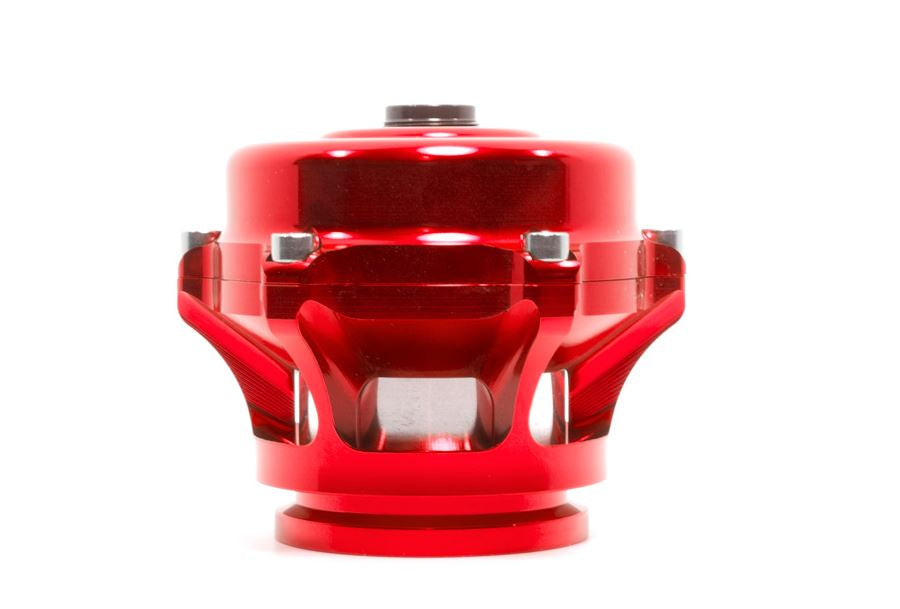

TIAL SPORT BLOW OFF Q 50mm BOV

DESCRIPTION

• For use on turbocharged and supercharged applications (Paxton, Vortec, etc.). The body and all internal components are CNC machined from 6061 aluminum alloy. It features a large 1.98" (50.5mm) valve.
• The aluminum mounting clamp with V-Band design provides a very clean and unique look. The clamp uses stainless steel hardware for a durable, corrosion-free appearance.

• The valve seal uses a Viton O-ring that is held in place to prevent the valve from sticking to the seat and pulling it out. The valve stem and guide are Teflon-lubricated and hard-anodized for wear resistance.
• The blow-off valve comes with our machined aluminum banjo bolt and air fitting, with a 10mm oversized hose for quick actuator response. The actuator has a high-temperature reinforced silicone diaphragm for long life.
• An aluminum or mild steel mounting flange is supplied with each unit. Stainless steel is available at an additional cost. The use of 6061 aluminum allows the housing to be anodized in a selection of colors.
• Through countless hours of research and development, we've achieved the same valve flow with 60% more airflow than the original design, which translates to 60% more air exhaust per cycle! This is the smoothest BOV on the market.
• Anodized aluminum color options (silver, red, blue, purple, black).
• A single BOV Q can support up to 1,800 hp
• -2psi spring for supercharged applications

Product specifications

CNC machined aluminum clamps ensure a secure, pressure-resistant fit.

WHAT'S IN THE BOX?

Included with every Q test:

• Q Assembled

• TiAL Vband Clamp

• Vband welding flange

• TiAL air connection

• High pressure O-ring



ATTENTION

All GMC Racing items that provide horsepower increases beyond those permitted by the highway code in the user's country are intended for competitive use only.
GMC Racing declines all responsibility for any use of the product contrary to national regulations.
