TURBINE G25-550 Super Core (858161-5002S)

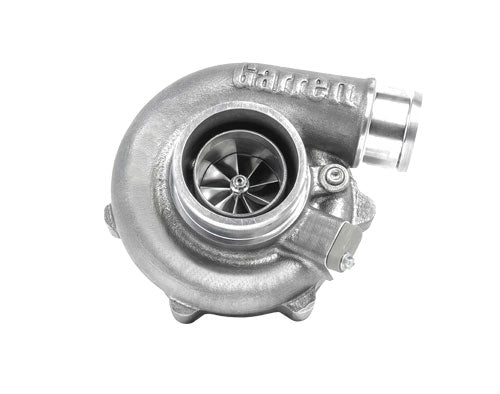

Garrett G25-550 Super Core turbine

PRODUCT SPECIFICATIONS

• Power range: 300 - 550 PS
• Recommended displacement: 1.4 - 3.0
• New CFD-optimized, machined and forged high-capacity compressor impeller
• High flow compressor housing with provision for easy insertion of an optional speed sensor
• Direction of rotation: standard right
• Double ceramic ball bearing
• With 1mm -4AN oil limiter
• 4 water connection options
• Double piston seal on compressor and turbine side
• MAR-M 1050°C turbine wheel
• Cooled water and oil
• Scope of delivery: Super Core, 2 x water connection adapter -6AN, 1 x oil limiter -4AN

ATTENTION

All GMC Racing items that provide horsepower increases beyond those permitted by the highway code in the user's country are intended for competitive use only.
GMC Racing declines all responsibility for any use of the product contrary to national regulations.
