Smaller, lighter, faster - The Turbosmart range of turbines has been developed to make the most of modern materials, designs and manufacturing techniques, creating a range of turbines that meet the needs of both motorsport and enthusiasts.
DESCRIPTION

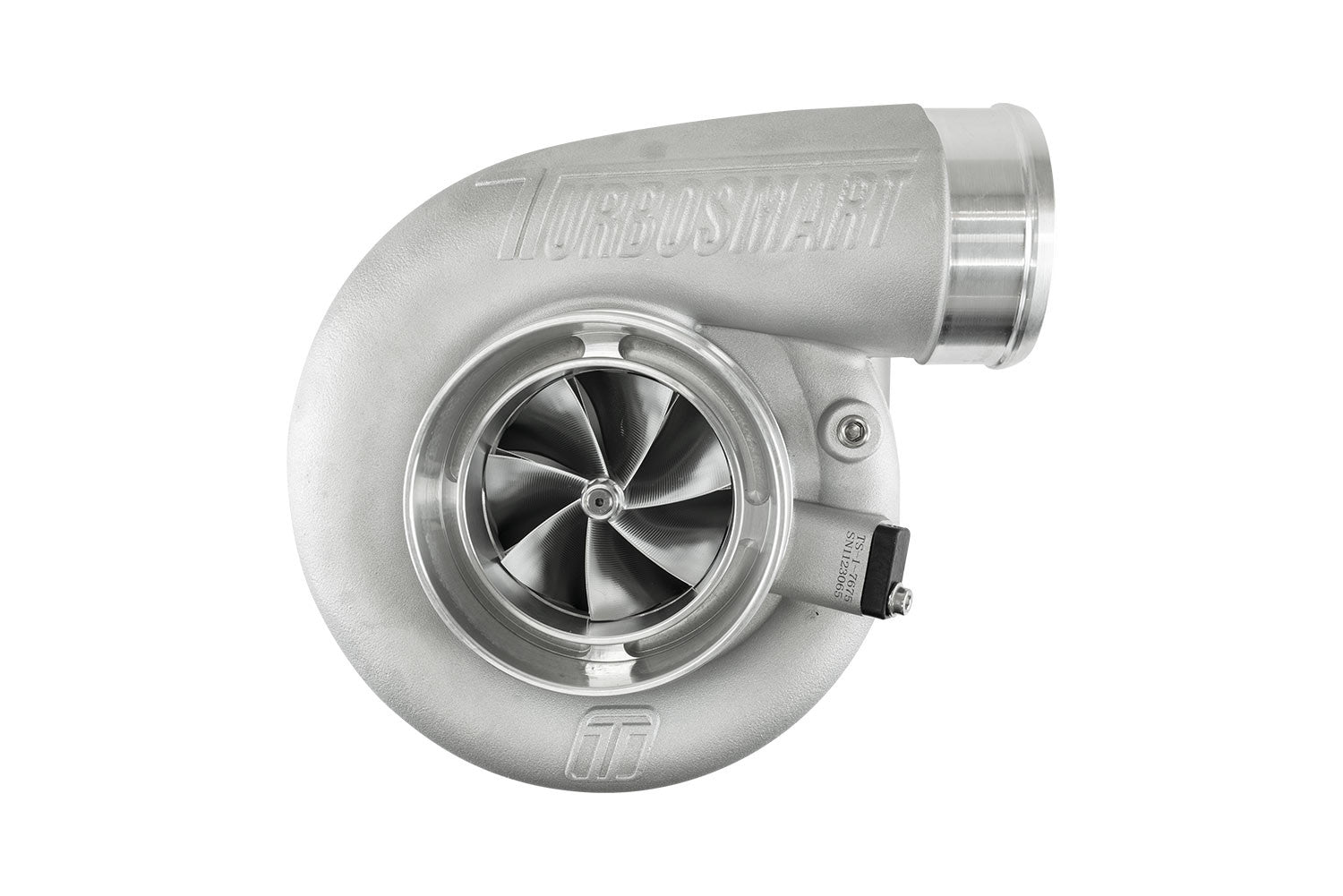

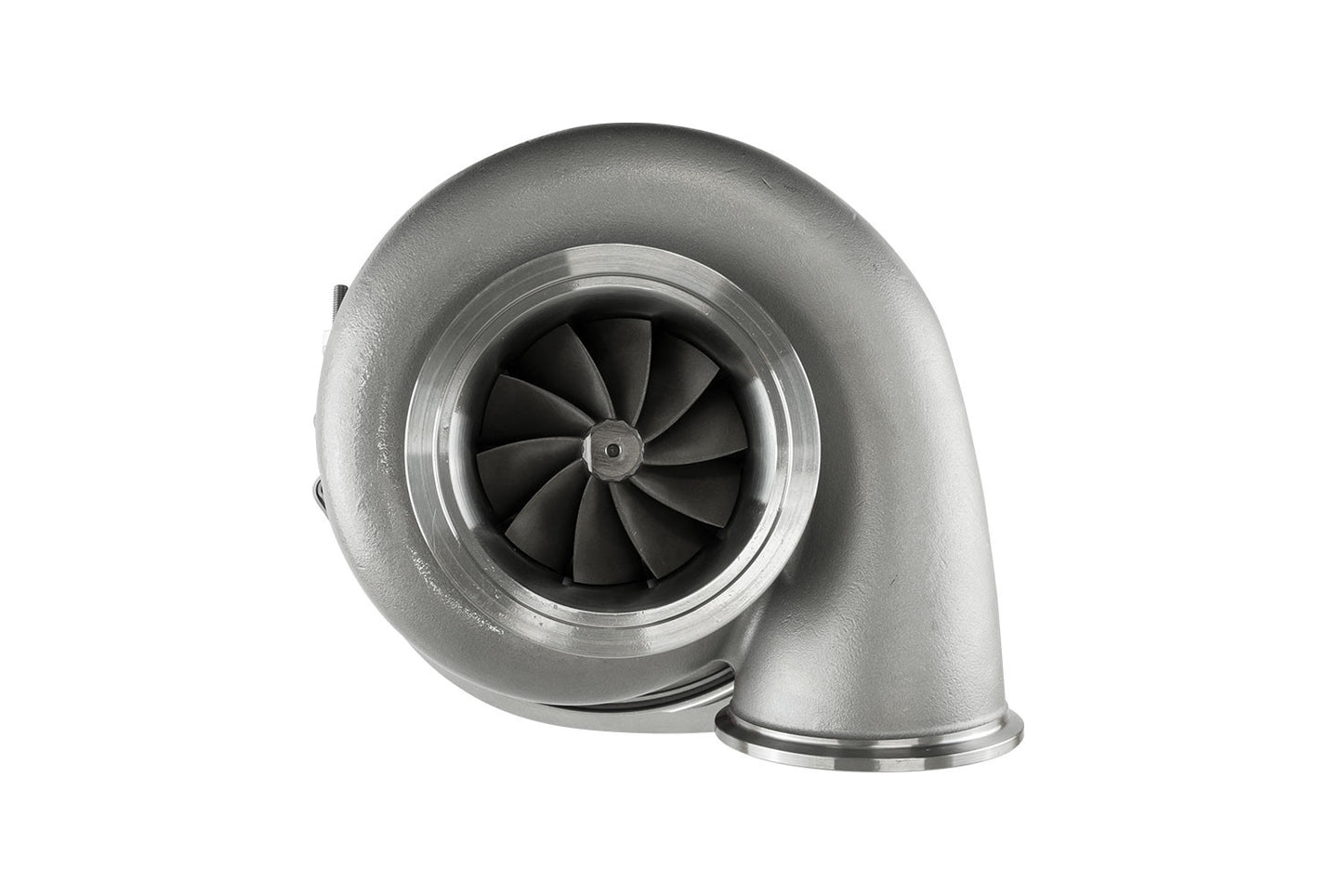

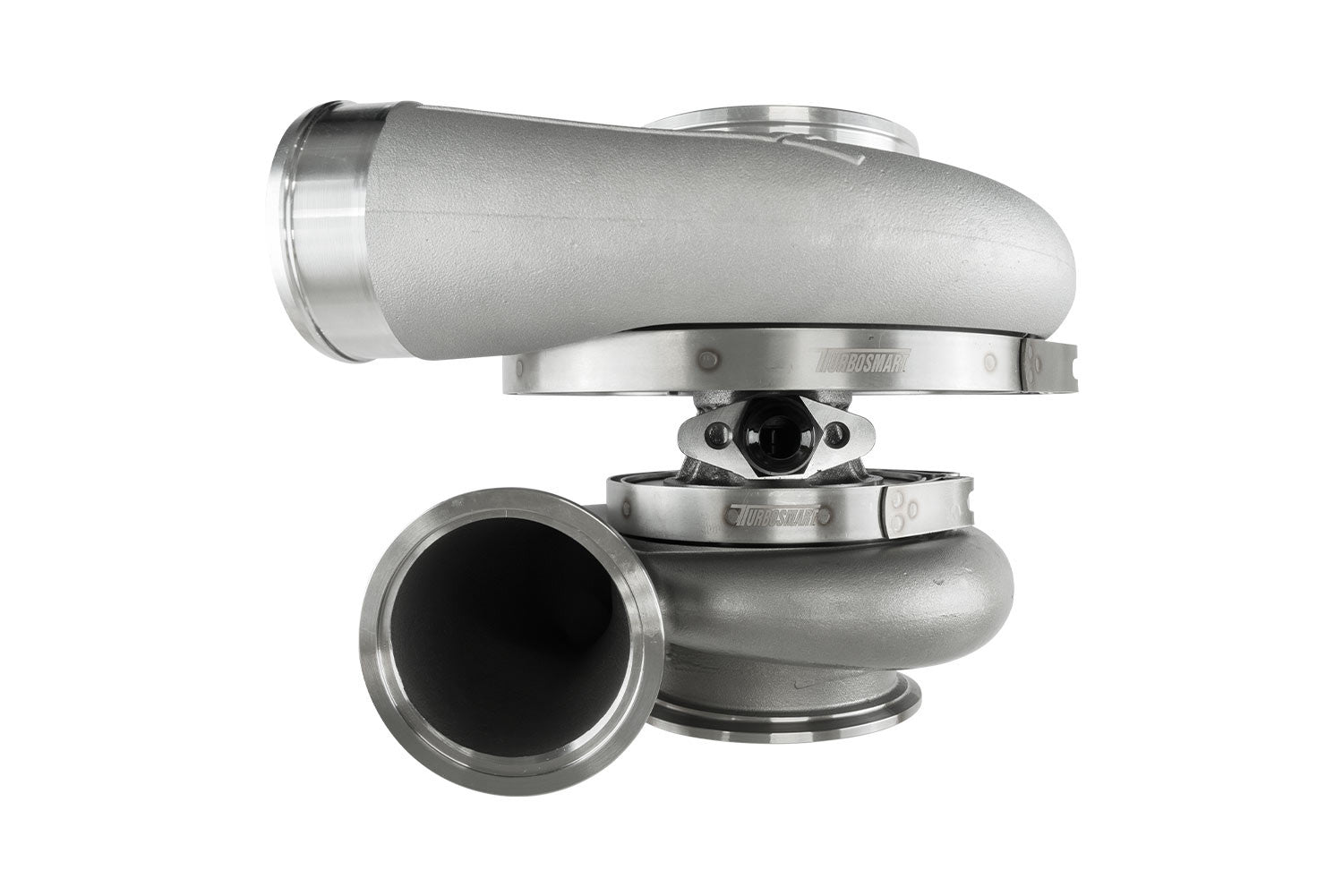

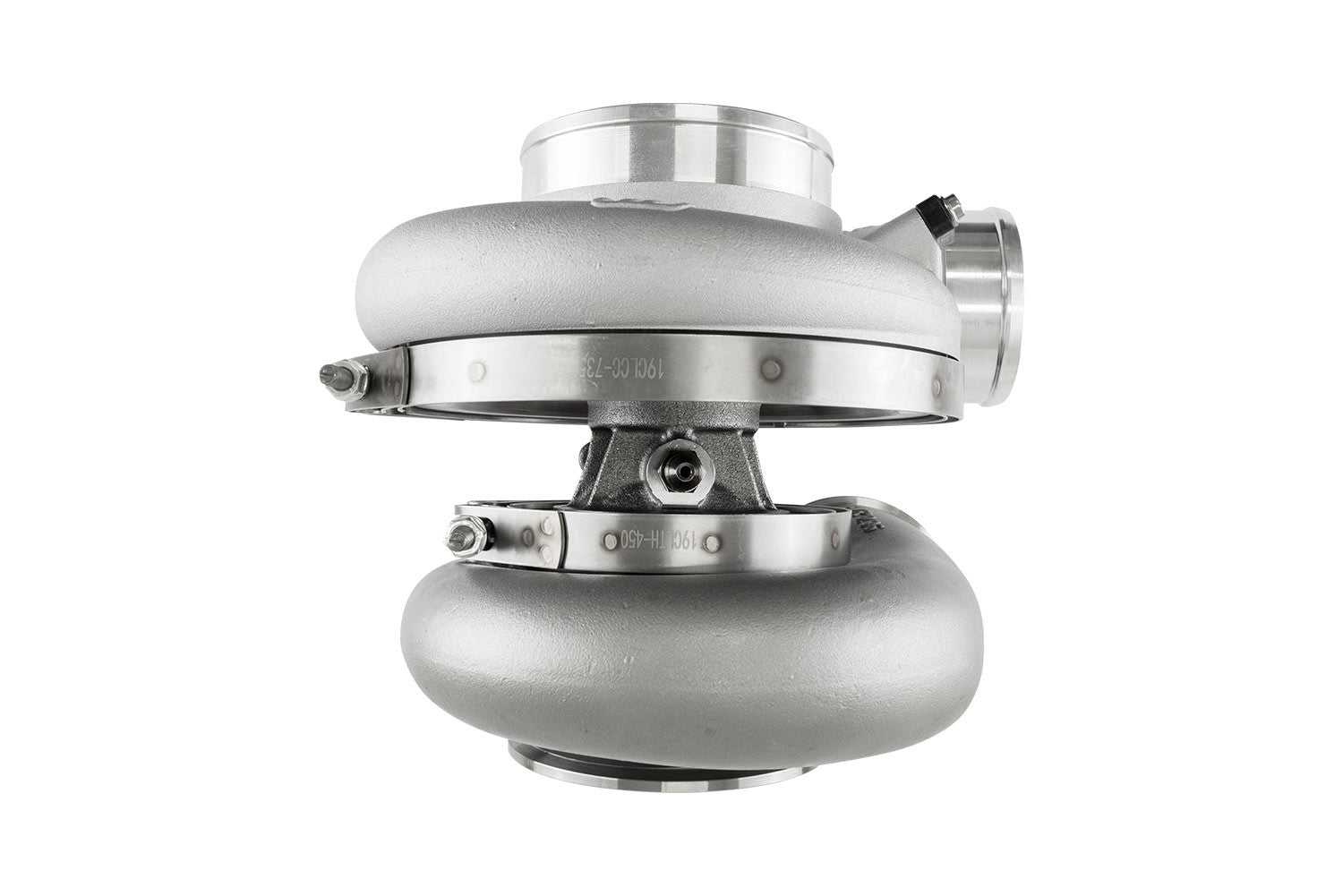

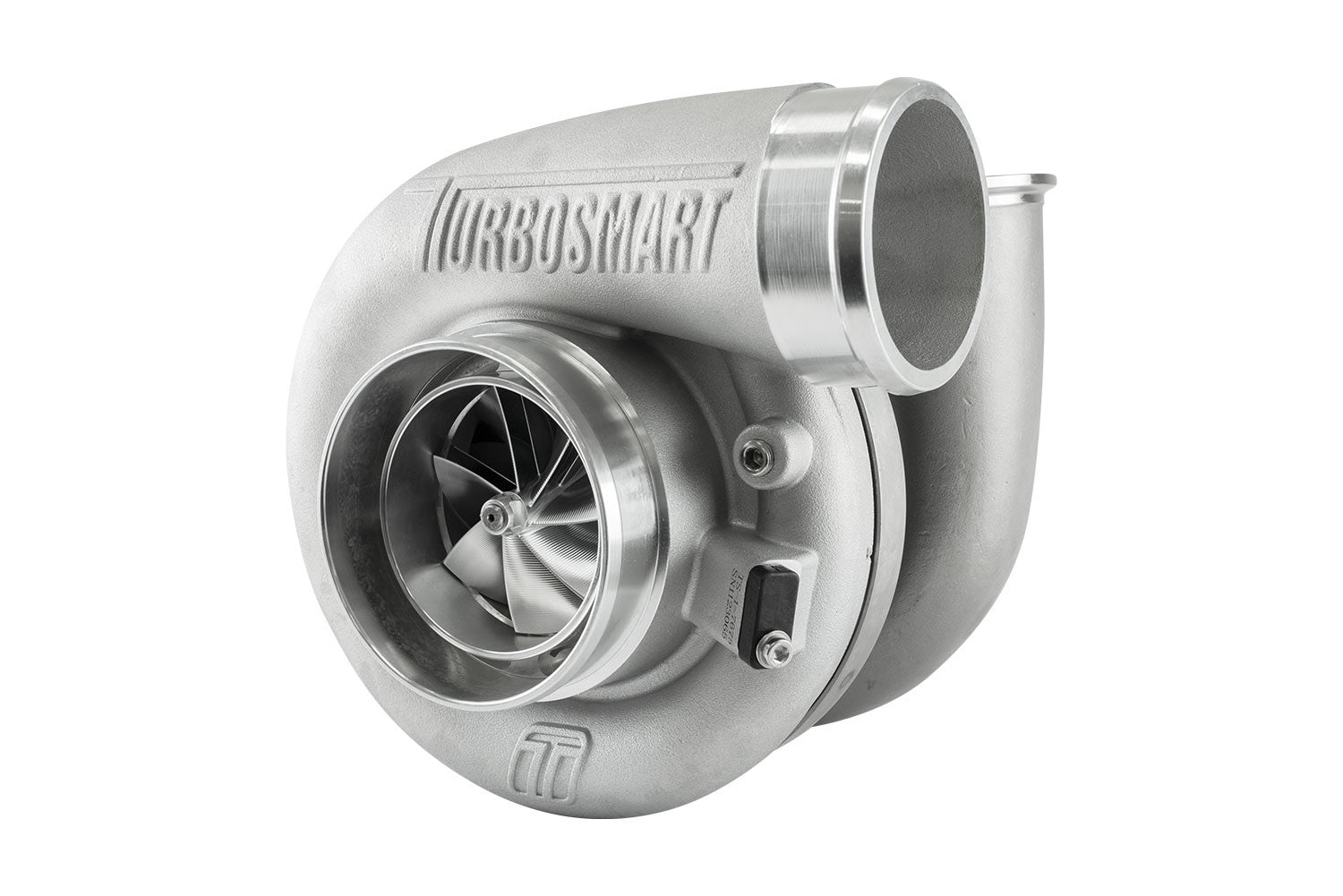

The TS-1 Series features oil-cooled turbines with lightweight cast turbine housings, a patented bearing and mainshaft combination that delivers transient response you never imagined possible, with the signature Turbosmart performance, quality, reliability and service you’ve come to know.
The ultra-low rotating mass of our unique bearing-shaft assembly is combined with aggressive compressor aerodynamics to deliver high levels of performance at lower shaft speeds, coupled with a unique turbine wheel to deliver power at high loads and flows.
All Turbosmart turbines are designed to maximize power by reducing backpressure—the result? Smaller, lighter, and faster-responding turbines compared to other solutions on the market.
Each turbine comes standard with everything needed for installation, weld-on flanges, V-Band clamps, oil feed and drain fittings.
Technical specifications
-
Compressor inlet: 101.6mm / 4"
-
Compressor inductor: 64mm
-
Turbine input: V-Band (2.25")
-
Turbine exducer: 66mm
-
AR Turbine: 0.8
-
Turbine Output: V-Band (3.00")
-
Weight: 6.06kg / 13.3lbs
- Power range: 750-930hp
CHARACTERISTICS
-
Unparalleled transient response
-
Aggressive aerodynamics with 7+7 splitter impellers
-
Turbine housing in lightweight cast 310 stainless steel
-
Lightweight aluminum compressor cover
-
CFD-designed housing for optimal A/R and flow
-
Inconel T14 turbine wheel for extreme EGT
-
Balanced VSR speed
-
Patented double ceramic bearing system
- Integrated iron back plate on the central housing

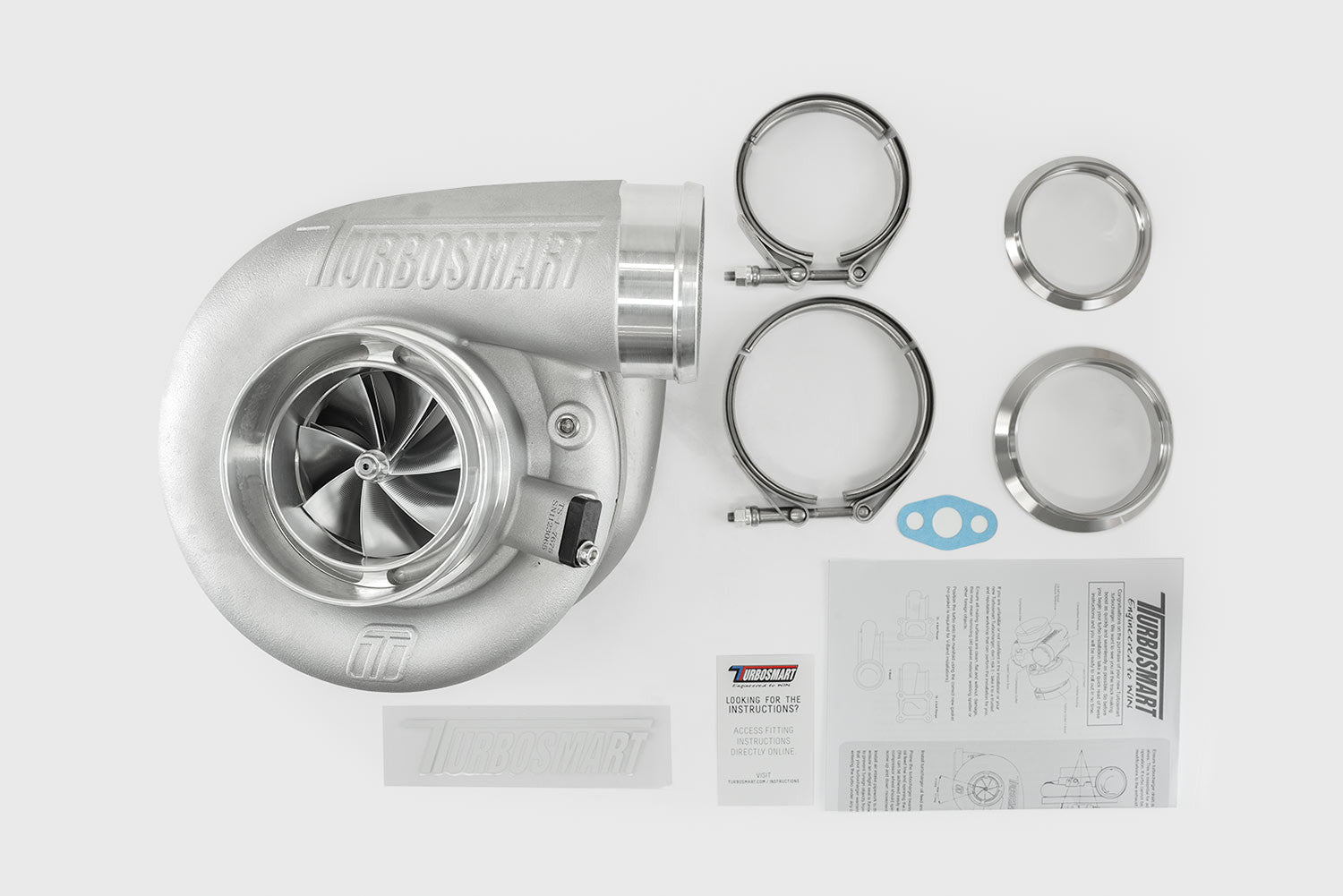

WHAT'S IN THE BOX?
- Turbosmart Performance turbine
- Mounting arm for internal wastegate
- Turbosmart GenV IWG Actuator
- Welding flanges (Turbine outlet and inlet)
- V-Band Clamps (Turbine Outlet and Inlet)
- Oil drain gasket
