Smaller, lighter, faster - The Turbosmart range of turbines has been developed to make the most of modern materials, designs and manufacturing techniques, creating a range of turbines that meet the needs of both motorsport and enthusiasts.
DESCRIPTION
The TS-1 Series are oil-cooled turbines with lightweight cast turbine housings, a patented bearing and mainshaft combination that delivers transient response you never imagined possible, with the signature Turbosmart performance, quality, reliability and service you have come to know.
The ultra-low rotating mass of our unique bearing-shaft assembly is combined with aggressive compressor aerodynamics to deliver high levels of performance at lower shaft speeds, coupled with a unique turbine wheel to deliver power at high loads and flows.
All Turbosmart turbines are designed to maximize power by reducing backpressure—the result? Smaller, lighter, and faster-responding turbines compared to other solutions on the market.
Each turbine comes standard with everything needed for installation, weld-on flanges, V-Band clamps, oil feed and drain fittings.
Technical specifications
-
Compressor inlet: 101.6mm / 4"
-
Compressor inductor: 68mm
-
Turbine Inlet: V-Band (3.00")
-
Turbine exducer: 70mm
-
AR Turbine: 0.96
-
Turbine Output: V-Band (3.50")
-
Weight: 9.63kg / 20.23lbs
- Power range: 900-1100hp
CHARACTERISTICS
-
Unparalleled transient response
-
Aggressive aerodynamics with 7+7 splitter impellers
-
Turbine housing in lightweight cast 310 stainless steel
-
Lightweight aluminum compressor cover
-
CFD-designed housing for optimal A/R and flow
-
Inconel T14 turbine wheel for extreme EGT
-
Balanced VSR speed
-
Patented double ceramic bearing system
- Integrated iron back plate on the central housing

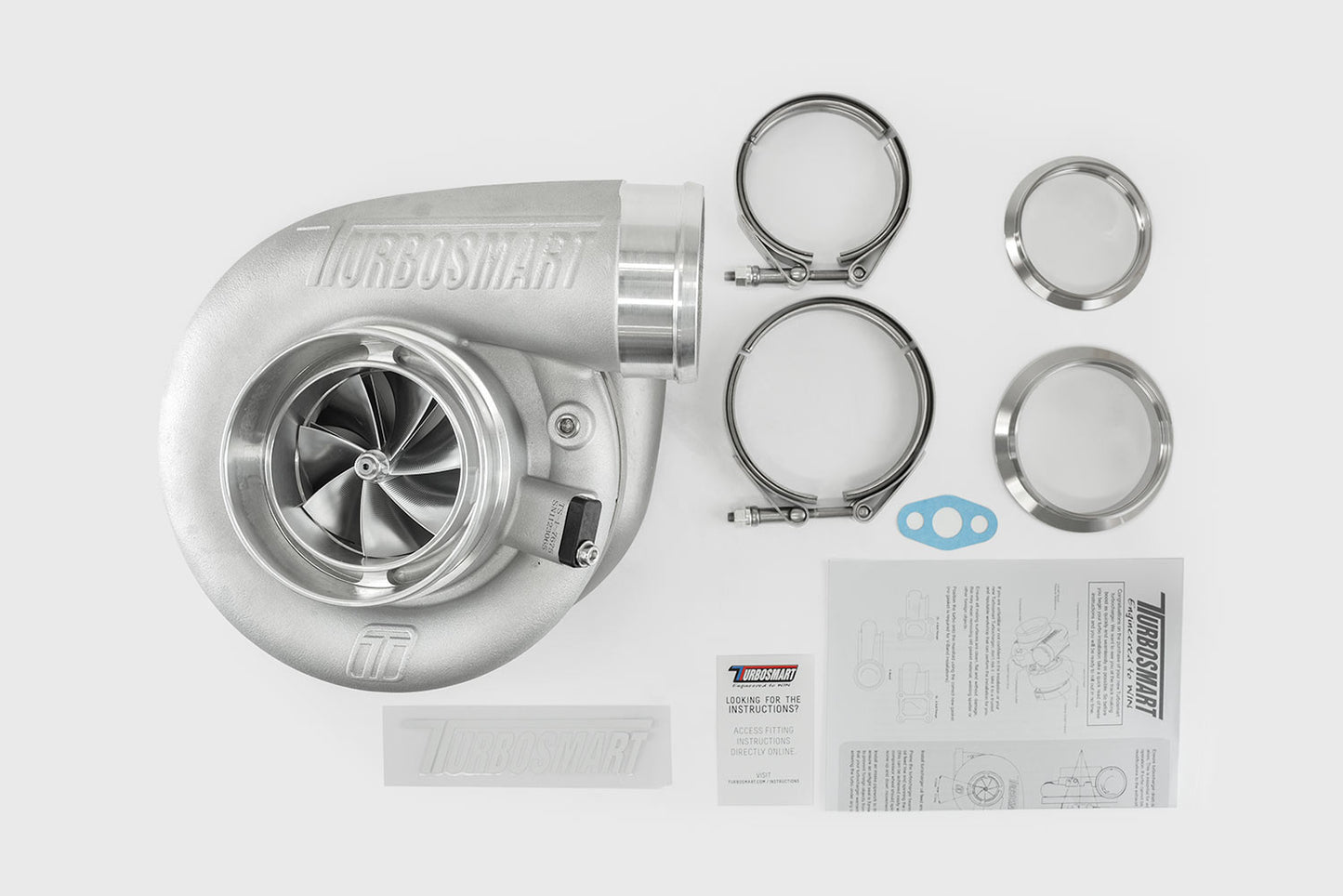

WHAT'S IN THE BOX?
- Turbosmart Performance turbine
- Welding flange (Turbine outlet)
- V-Band Clamp (Turbine Outlet)
- Oil drain gasket
ATTENTION
All GMC Racing items that provide horsepower increases beyond those permitted by the highway code in the user's country are intended for competitive use only.
GMC Racing declines all responsibility for any use of the product contrary to national regulations.
