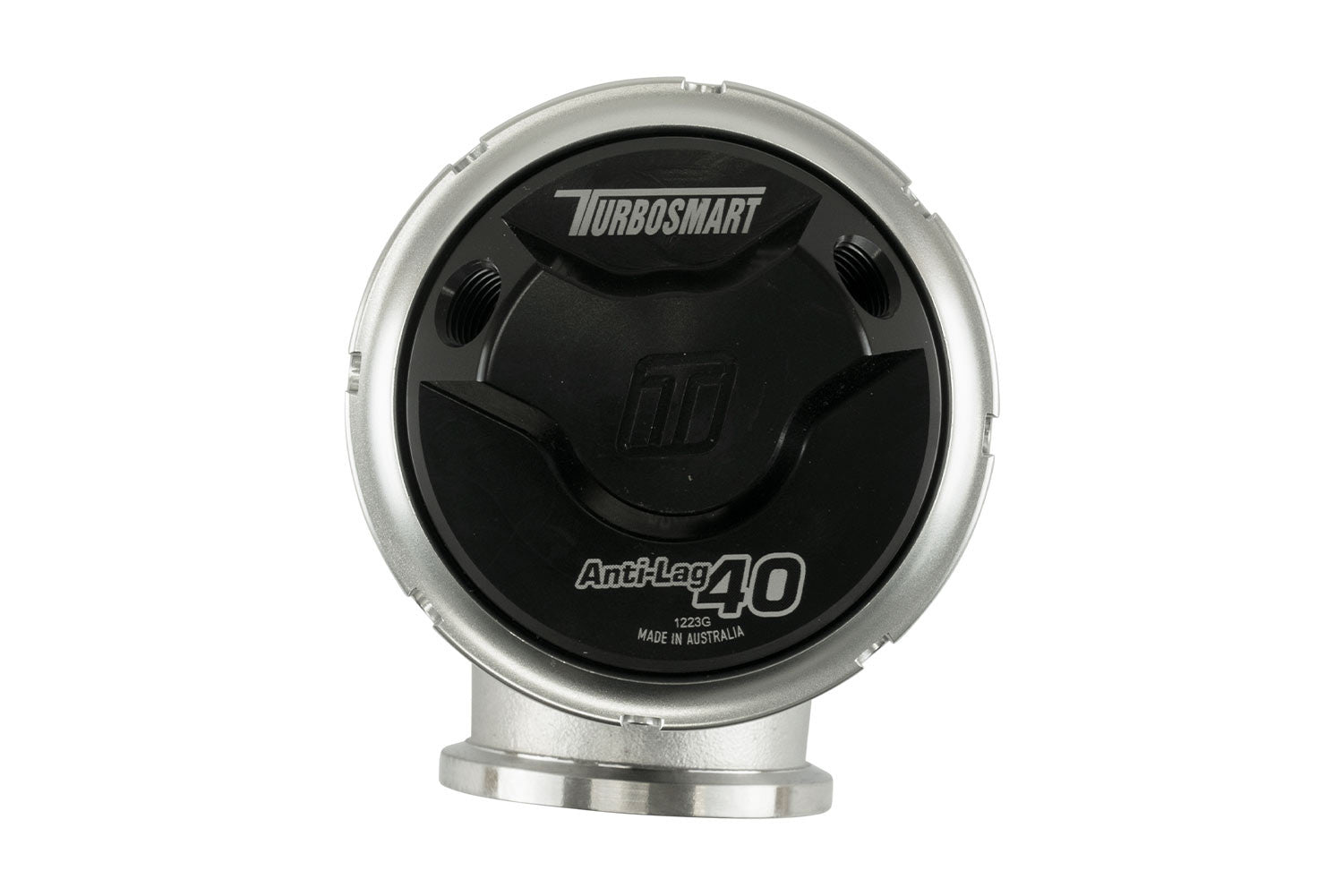

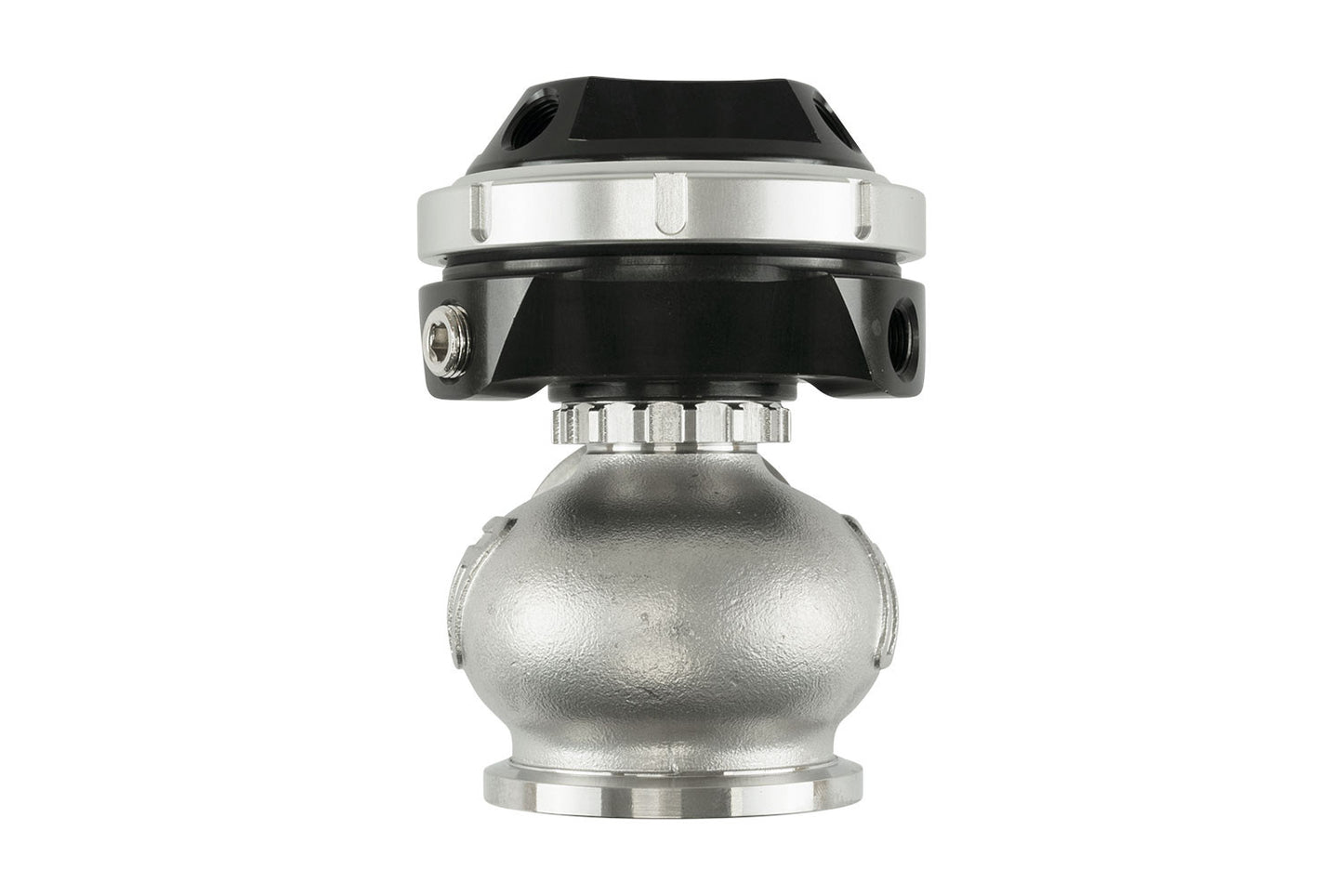

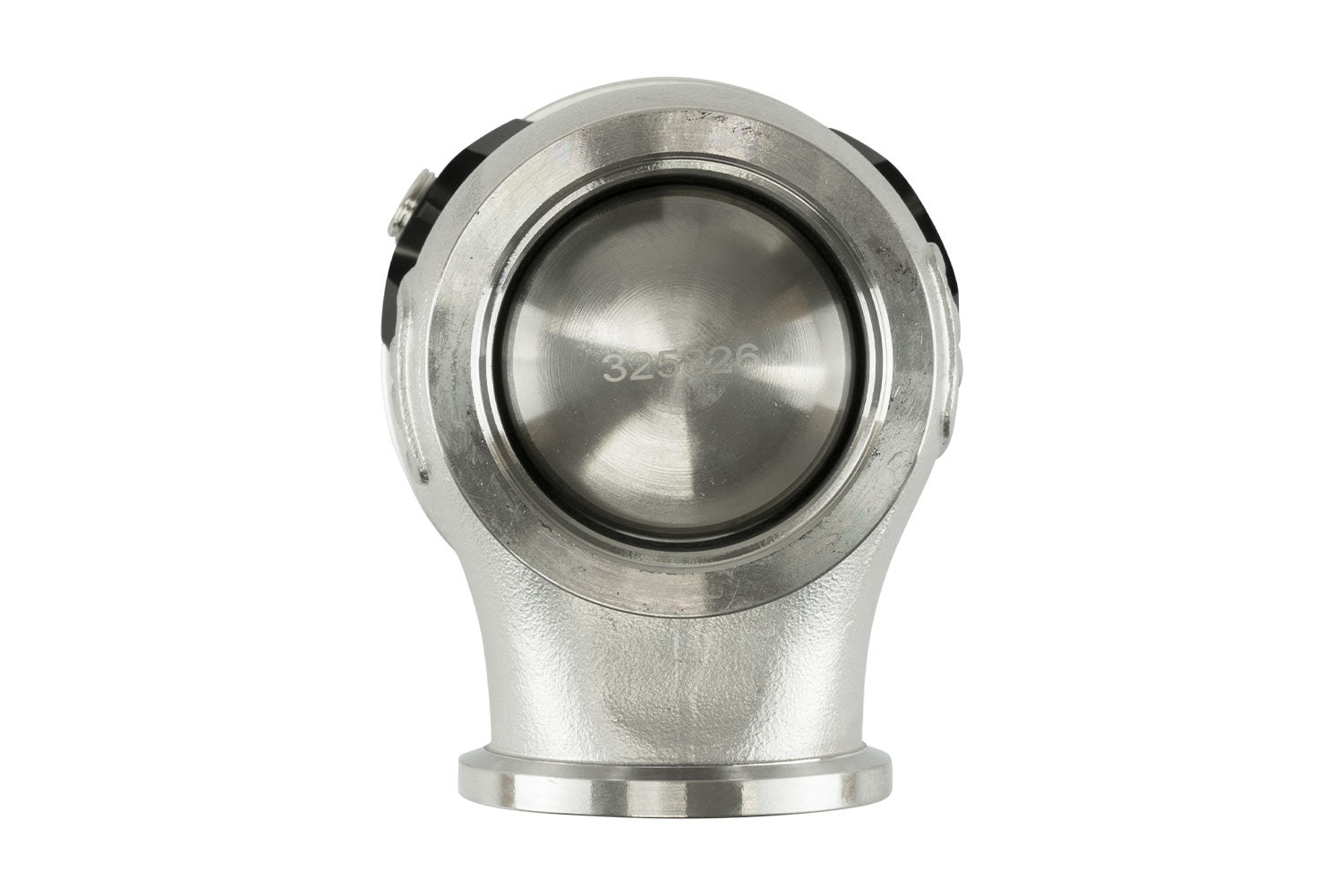

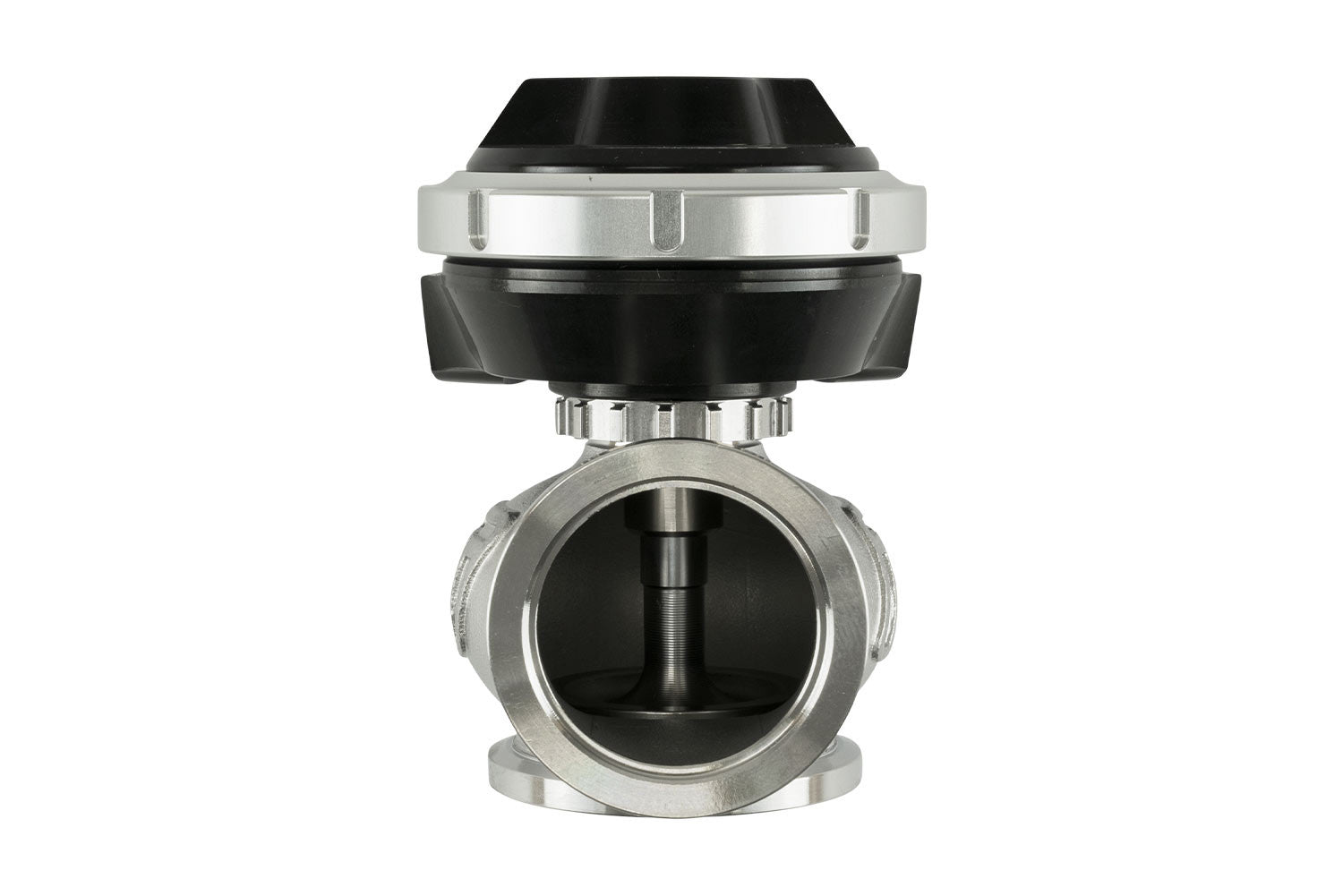

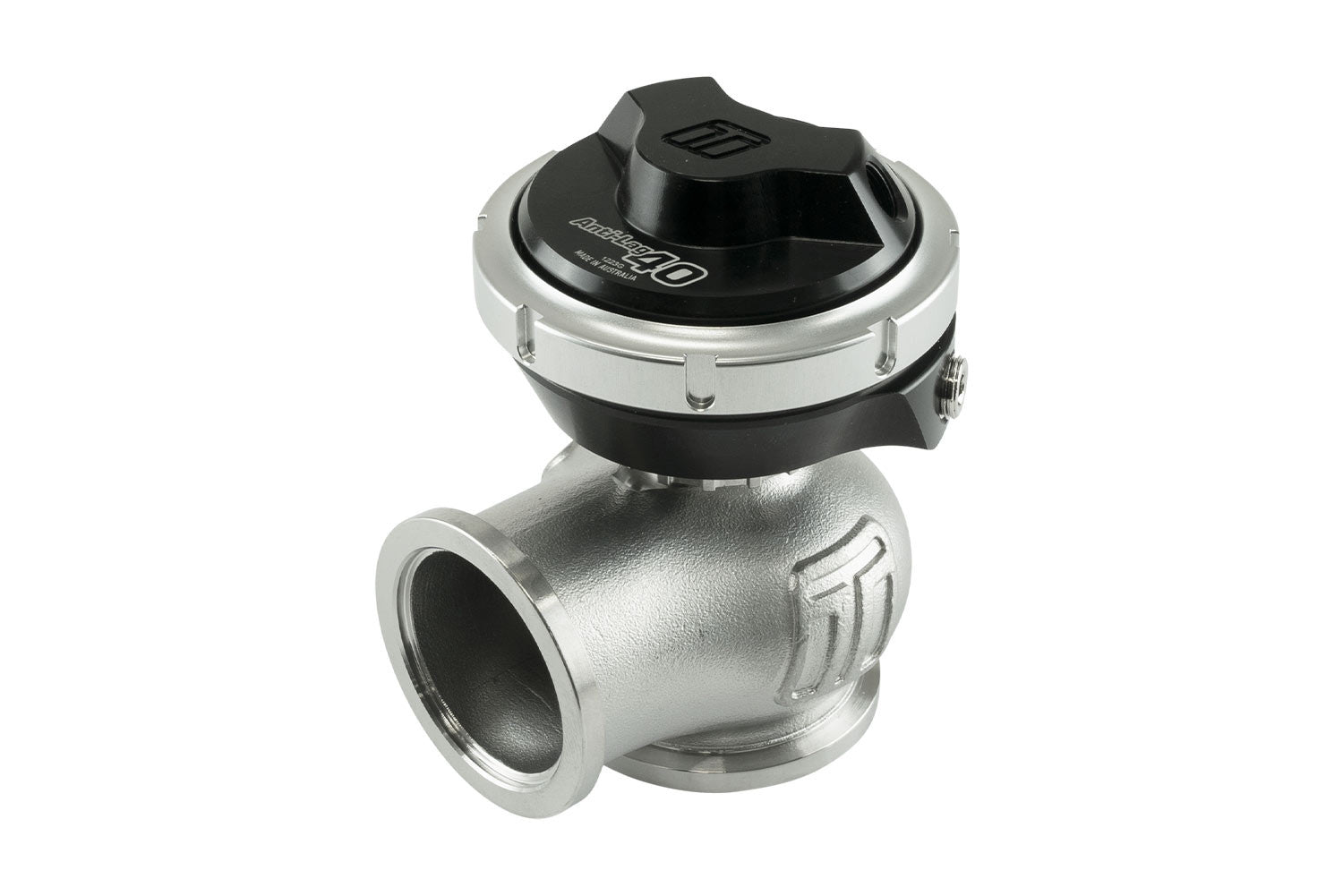

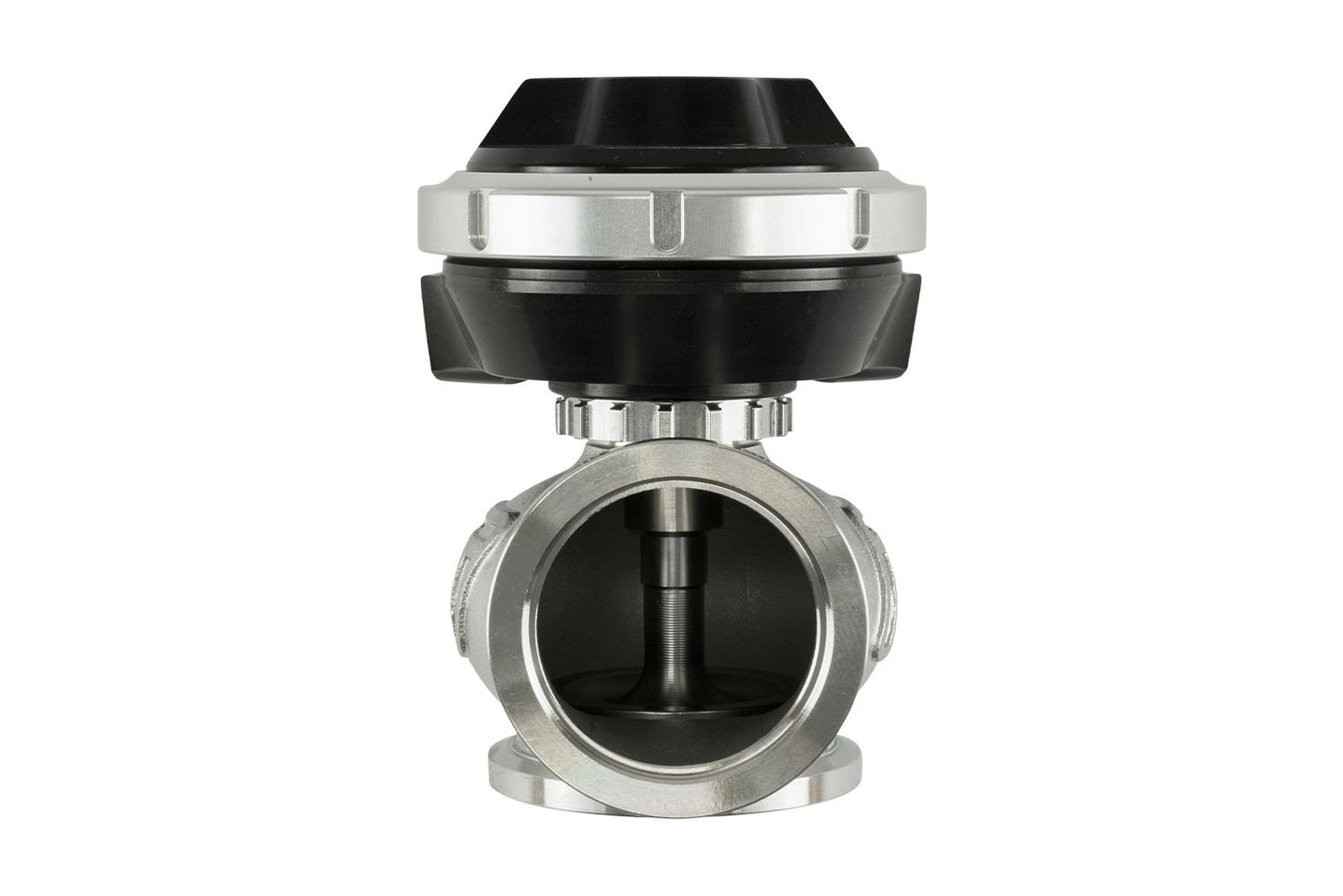

The Turbosmart ALV40 (Anti-Lag) is a fresh air bypass anti-lag valve for motorsport applications. With a diameter of 40mm, the actuator housing has been meticulously designed to provide excellent performance. Multiple fittings are supplied for installation.
DESCRIPTION
Thanks to the ALV40 Fresh Air valve, the air entering the turbine is safely diverted into the exhaust manifold, thus ensuring safe turbine operation. This prevents the phenomenon of delayed combustion, which can cause high levels of stress in the engine and even lead to broken connecting rods.
The valve features a sealed dual-chamber design, with the upper port serving as the primary control port. The spring is designed to open under vacuum conditions, allowing air to be bypassed in the exhaust manifold; the lower dual-chamber controls the valve regardless of manifold pressure, while the shaft seal ensures a watertight seal.
CHARACTERISTICS
Dual chamber control
Suitable for both pressure and vacuum
Optional 1-5 port outlet flanges
17/7 PH stainless steel springs
V-Band Cable Ties

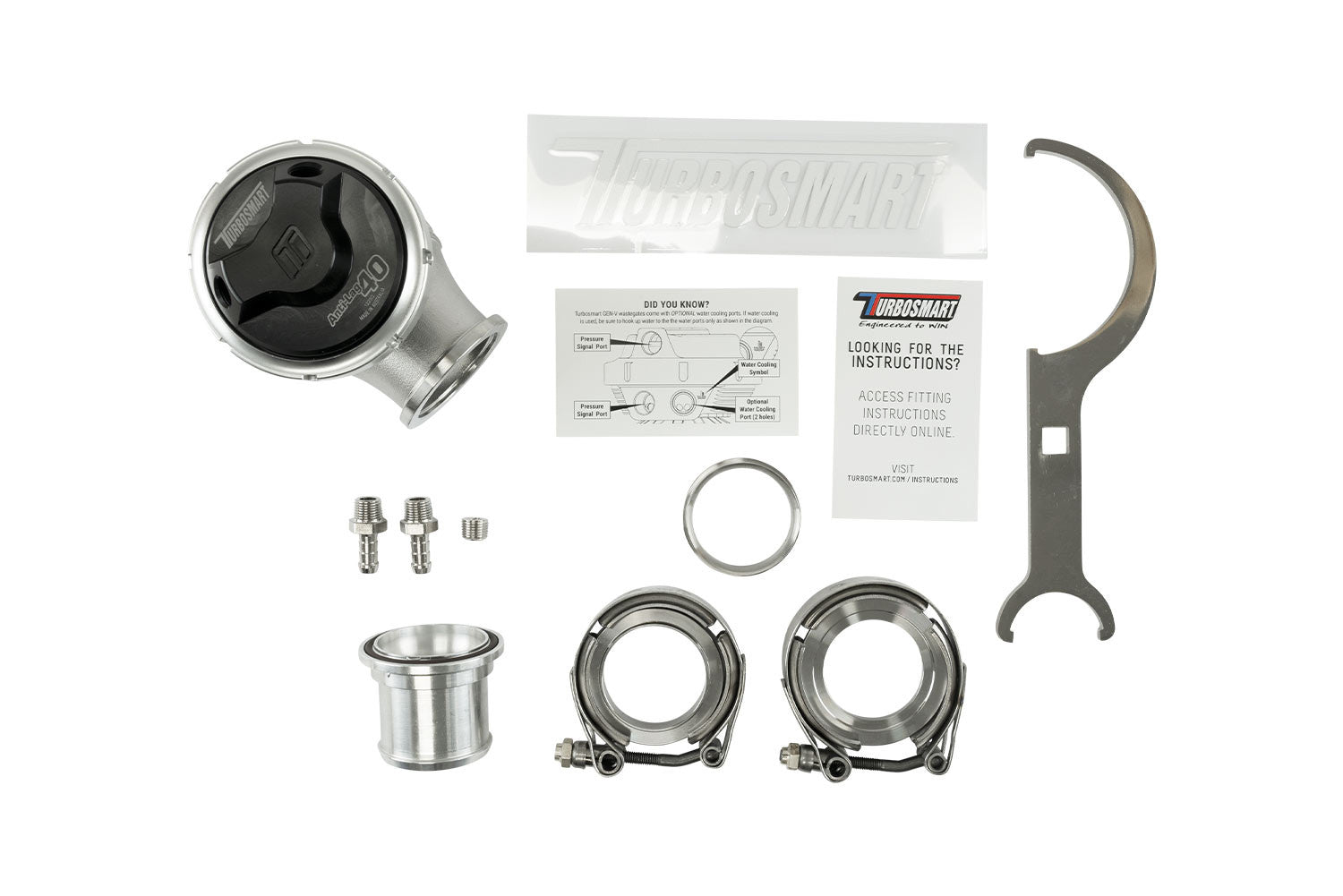

WHAT'S IN THE BOX?
Turbosmart GenV Anti-Lag Valve
Valve flange
V-Band entry and exit clamp
1-1/2" OD pipe inlet adapter
1-1/2"OD Weld-On Inlet Flange
C Spanner
O-Ring entry
Turbosmart Sticker
ATTENTION
All GMC Racing items that provide horsepower increases beyond those permitted by the highway code in the user's country are intended for competitive use only. GMC Racing declines all responsibility for any use of the product contrary to national regulations.
